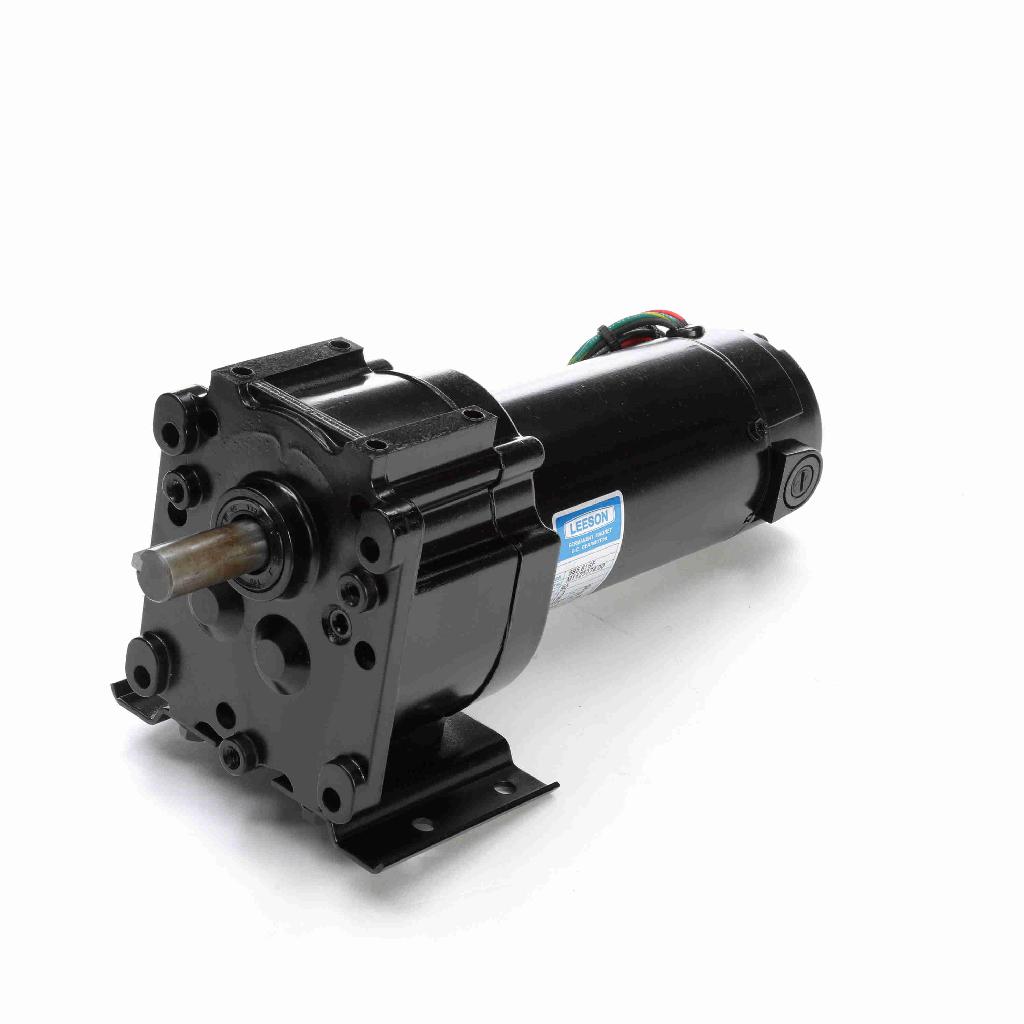

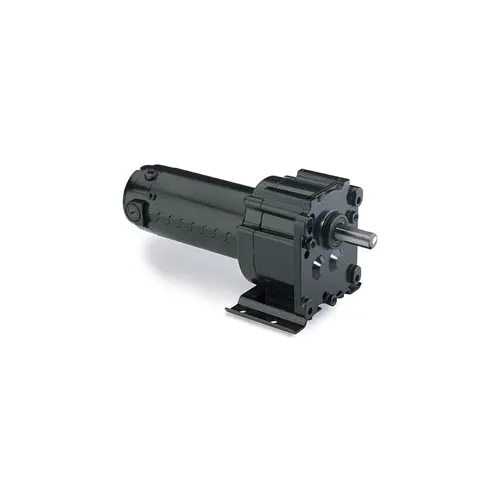

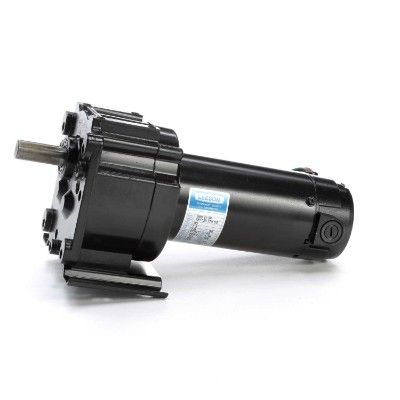

LEESON ELECTRIC . M1125074.00

Leeson M1125074.0011:1 167RPM 43LBIN 1/8HP 30 DCGEARMOTORS SUB-FHP 90V DC TENV

PN: M1125074.00 <br />M112507400 <br /><br />HP: 1/8, Torque: 43 LB-IN <br /> Phase: DC, Hertz: DC, Gear: 11:1 <br /> Volts: 90, Rotation: Reconn <br /> Frame: 30, RPM: 167 <br /> Overload: Not, Enclosure: TENV <br /> Bearings: Ball <br /> Duty: CONT <br /><br />

<p><ul><li>Precision machined in-line steel gears</li><li>First stage steel helical gear followed by spur-type gears</li><li>Lubrication is permanent semi-fluid grease, reducing possibility of leakage</li><li>Output shafts have needle bearings for high load capacities</li><li>Shafts are hardened steel</li><li>Optional conduit box available</li></ul></p><p><b>Specifications: </b><ul><li>Motor Type:-Brushed</li><li>Shaft Type:-Parallel</li><li>kW:-0.10 kW</li><li>Input Horsepower:-0.13 hp</li><li>Motor Supply Voltage:-90 V</li><li>Gear Ratio:-11 :1</li><li>Output rpm:-167.0 rpm</li><li>Full Load Torque:-43 in-lbs</li><li>Full Load Efficiency:-70.70 %</li><li>Full Load Current:-1.30 A</li><li>Frame Size:-30</li><li>Enclosure Type:-TENV (Totally Enclosed Non-Ventilated)</li><li>Mounting Type:-Special</li><li>Insulation Class:-F</li><li>Thermal Protection:-None</li><li>Standards Met:-CE,UL Recognized,CSA</li><li>Service Factor:-1.00</li><li>Duty / Condition Type:-Continuous Duty</li><li>Motor Length Less Shaft:-4.91 in</li><li>Overall Length (C-Dimension):-11.45 in</li><li>Shaft Diameter:-0.63 in</li><li>Shaft Rotation:-Reconn</li><li>Ambient Temperature Range:-40 C</li><li>Weight:-12 lbs</li></ul></p>
