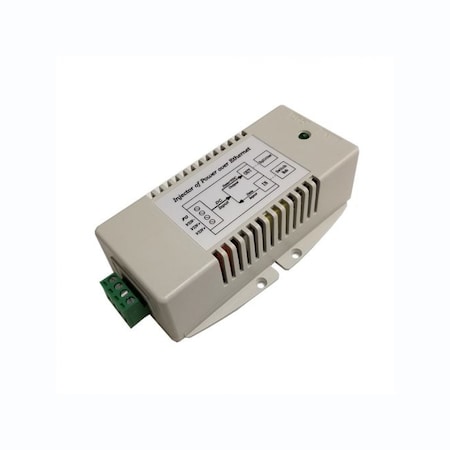

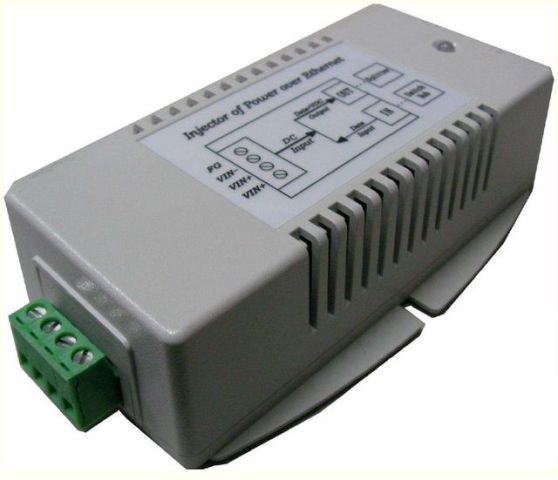

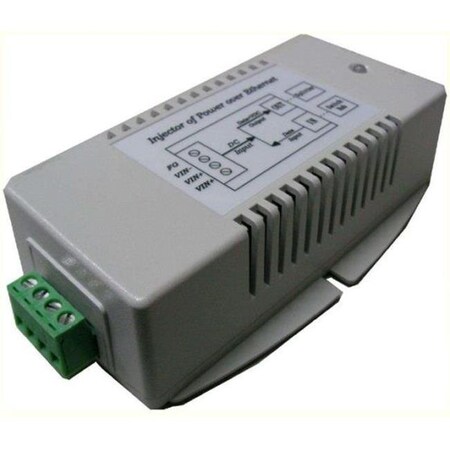

TYCON SYSTEMS, INC TP-DCDC-4824G-HP GIGABIT 36-72VDC IN 24VDC OUT 30W HI PO
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| homeessentialsdirect.com | TP-DCDC-4824G-HP | 1 | 1 | 1 @ $87.13 | |
 Zoro | G4579638 | 1 | 1 | 1 @ $76.39 | |
 Zoro | G603918310 | 1 | 1 | 1 @ $109.75 | |
 unbeatablesale.com | TYCN143 | 1 | -2 | 1 | 1 @ $81.25 |
 PCNation | 7546AY | 1 | In Stock | 1 | 1 @ $69.45 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Tycon Systems TP-DCDC-4824G-HP 24V DC Out 30W Hi Power DC to DC Converter and Passive POE Inserter - Gigabit
Brand: Tycon Systems
Details
- Input Voltage +/- 36-72VDC; Output 24VDC
- Integrated Surge Protected PoE Inserter
- High Power 30W
- Short Circuit, Over Current and Over Voltage Protection
- High Temperature Operation
Listing
| Binding | Electronics |
|---|---|
| Product group | CE |
| Product type | POWER_SUPPLIES_OR_PROTECTION |
| Model | TP-DCDC-4824G-HP |
| Part number | TP-DCDC-4824G-HP |
| Label | Tycon Power Systems |
| Manufacturer | Tycon Power Systems |
+/-36-72VDC Wire Term Input, High Power GigE DCDC Converter/24V 35W Gigabit Passive PoE Ins, Isolated Input and Output, PoE Pinout: 4,5V+ ; 7,8V-, Shielded and Surge Protected, Low Volt Disconnect
Brand: Tycon Power Systems
The TP-DCDC-4824G-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 24VDC Power Over Ethernet voltage from a +/-48V battery system. The POE inserters are Passive PoE. They have an integrated surge protected POE injector to apply the regulated 24VDC to the CAT5 Ethernet cable. The input voltage must be between 36VDC and 72VDC. They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power output of 30W (1.25A)
Details
- 24V 35W Gigabit Passive PoE Inserter
- Isolated Input to out, Shielded and Surge Protected, Low Voltage Disconnect
- Dual Inputs for Connecting 2 Power Sources
- Output Power (max) 35W
- Applications: 24V Battery Systems, Vehicle Applications; Wireless Access Points and Client Devices; IP Phone and Security Camera Systems
Listing
| Product group | BISS Basic |
|---|---|
| Product type | POWER_CONVERTER |
| Model | TP-DCDC-4824G-HP |
| Part number | TP-DCDC-4824G-HP |
| Items per pack | 1 |
| Label | Tycon Power Systems |
| Manufacturer | Tycon Power Systems |
TP-DCDC-4824G-HP - 40-60VDC Input, 24V Gigabit Passive PoE Output, 35W
Brand: Tycon Power
36-72VDC IN. 24V 35W Passive PoE OUT. DC to DC Converter and Gigabit Passive PoE Injector
Details
- 24V 35W Gigabit Passive PoE Inserter
- +/- 36-72VDC Wire Terminal Input
- Isolated Input to out
- Shielded and Surge Protected
- Low Voltage Disconnect
Listing
| Product group | CE |
|---|---|
| Product type | NETWORK_INTERFACE_CONTROLLER_ADAPTER |
| Model | TP-DCDC-4824G-HP |
| Part number | TP-DCDC-4824G-HP |
| Items per pack | 1 |
| Label | Tycon Systems Inc. |
| Manufacturer | Tycon Systems Inc. |
