Dwyer North American Wall Mount Humidity/temp Transmitter, 2% Accuracy, 0-10Vdc Humidity And Temperature Output Rohs Compliant: Yes - RHPLC-2N22
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Newark | 82AK8185 | 1 | 1 | 1 @ $130.50, 5 @ $123.98, 10 @ $117.45 | |
| RHPLC-2N22 | 1 | -2 | 1 | 1 @ $137.40 | |
 Zoro | G007158343 | 1 | 1 | 1 @ $117.99 | |
 Galco | RHPLC-2N22-DWYR | 1 | 1 | 1 @ $116.54 | |
| RHPLC-2N22 | 1 | -2 | 1 | 1 @ $131.90 | |
 cappusa.com | 4120301 | 1 | 1 | 1 @ $112.95 | |
| globaltestsupply.com | RHPLC-2N22 | 1 | 2 to 3 Weeks | 1 | |
 blackhawksupply.com | RHPLC-2N22 | 1 | -2 | 1 | 1 @ $130.60 |
| alliedcontrols.com | RHPLC-2N22 | 1 | Factory Stock | 1 | 1 @ $153.44 |
| us.rs-online.com | 71948452 | 1 | 1 | 1 @ $114.05 | |
| Allied Electronics | 71948452 | 1 | 1 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

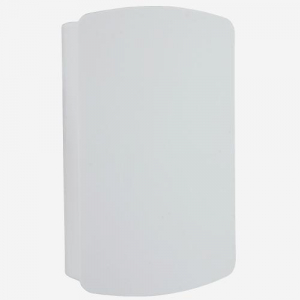

Dwyer Wall Mount Humidity/Temperature Transmitter, RHPLC-2N22, Compact Economical Sensor, 2% Accuracy, 0-10VDC Humidity and Temperature Output.
Brand: Dwyer
The Series RHPLC Wall Mount Humidity/Temperature Transmitter is a compact economical sensor for the building automation market space. The stylish housing is well vented to provide air flow across the sensor to improve measurement accuracy. Each unit utilizes a capacitive polymer sensing element to deliver a proportional analog output. A combination humidity and temperature model can be configured with current, voltage, RTD, or thermistor output. A wide selection of passive RTD or thermistor temperature sensors are available in this series. SPECIFICATIONS - Sensor: Capacitive polymer; Relative Humidity Range: 0-100% RH; RH Accuracy: ± 2% 10 to 90% RH @ 25°C for 2% accuracy units; RH Hysteresis: ± 0.8%; RH Repeatability: ± 0.1% Typical; Temperature Output Range:-40 to 140°F (-40 to 60°C); Passive Thermistor Temp Sensor Accuracy: ± 0.36ºF @ 77°F (± 0.2°C @ 25°C); Accuracy RTD Temp Sensor: DIN Class B; ± 0.3°C @ 0°C (± 0.54°F @ 77°F); Accuracy Current/Volt Temp Output: ± 0.9°F @ 72°F (± 0.3°C @ 25°C); Temperature Limits: Operating: -40 to 140°F (-40 to 60°C); Storage: -40 to 176°F (-40 to 80°C); Power Requirements: 10 to 35 VDC for 4 to 20 mA or 0 to 5 VDC output; 15 to 35 VDC for 0 to 10 VDC output; 10 to 29 VAC for 0 to 5 VDC output; 15 to 29 VAC for 0 to 10 VDC output; Response Time: 8 s (π63); Electrical Connections: Screw terminal block; Drift: <0.25% RH/year; Enclosure Material: Polycarbonate; Weight: 4.4 oz (125 g). (Standard Model Pictured)
Details
- Sensor: Capacitive polymer, Relative Humidity Range: 0-100% RH, RH Accuracy: ±2% 10 to 90% RH @ 25°C for 2% accuracy units.
- RH Hysteresis: ±0.8%, RH Repeatability :±0.1% typical, Temperature Output Range: -40 to 140°F (-40 to 60°C), Passive Thermistor Temp Sensor Accuracy:±0.36ºF @ 77°F (±0.2°C @ 25°C).
- Accuracy RTD Temp Sensor: DIN Class B; ±0.3°C @ 0°C (±0.54°F @ 77°F), Accuracy Current/Volt Temp Output: ±0.9°F @ 72°F (±0.3°C @ 25°C), Temperature Limits: Operating: -40 to 140°F (-40 to 60°C); Storage: -40 to 176°F (-40 to 80°C).
- Power Requirements: 10 to 35 VDC for 4 to 20 mA or 0 to 5 VDC output; 15 to 35 VDC for 0 to 10 VDC output; 10 to 29 VAC for 0 to 5 VDC output; 15 to 29 VAC for 0 to 10 VDC output, Response Time:8 s (π63),
- Electrical Connections: Screw terminal block, Drift: <0.25% RH/year, Enclosure Material: Polycarbonate, Weight: 4.4 oz (125 g)
Listing
| Product group | BISS Basic |
|---|---|
| Product type | MECHANICAL_COMPONENTS |
| Part number | RHPLC-2N22 |
| Items per pack | 1 |
| Label | Dwyer Instruments, Inc. |
| Manufacturer | Dwyer Instruments, Inc. |
