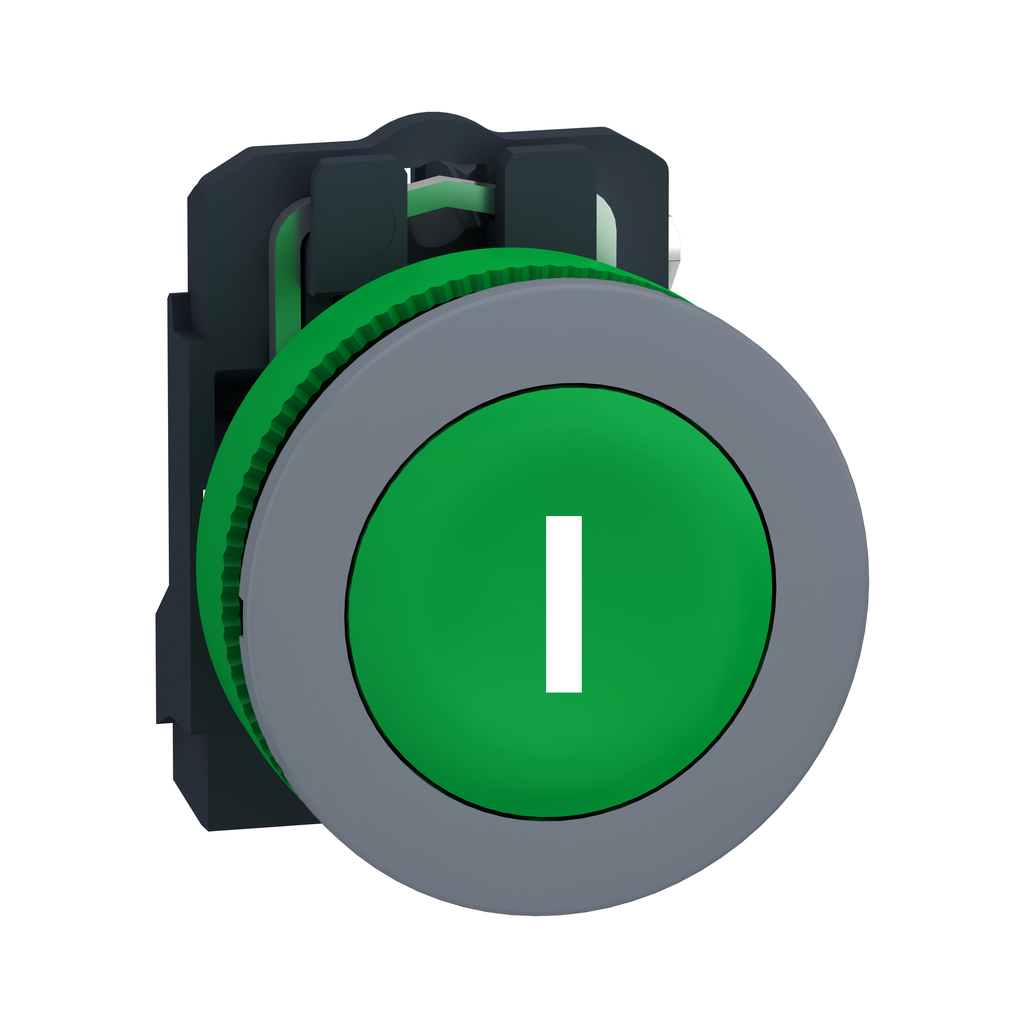

Push button, Harmony XB5, antimicrobial, grey bezel, green flush, 30mm, spring return, 1NO, marked I | Mayer Electric

SQUARE D . SQDXB5FA3311C0

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00Harmony XB5
Attribute0130.5 mm
Attribute02spring return
Attribute03push-button
Attribute04round
Attribute05plastic
Attribute06built-in-flush
Attribute071 NO
Attribute08, Attribute23, moq, multiple, tierMinQty11
Attribute09plastic colour plated grey
Attribute10slow-break
Attribute11green flush, I white)
Attribute12ZBYF2101 || ZBYF4101 || ZBYF6101 || ZBYF6102 || ZBZF32 || ZBZF33 || ZB4FBZ007
Attribute13XB5F
Attribute14standard contacts
Attribute1542 mm
Attribute16(13-14)NO
Attribute173.8 N NO changing electrical state
Attribute1810 A cartridge fuse gG EN/IEC 60947-5-1
Attribute192.6 mm NO changing electrical state) || 4.3 mm total travel)
Attribute20silver alloy (Ag/Ni)
Attribute21without
Attribute2210 A EN/IEC 60947-5-1
Attribute246 kV EN/IEC 60947-1
Attribute25complete product
Attribute267000000 Pa 55 ?C 0.1 m
Attribute27XB5FACUST02
Attribute28600 V 3)EN/IEC 60947-1
Attribute293 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Attribute301000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Attribute3110000000 cycles
Attribute32XB5
Attribute33no
Attribute3436.6 mm
Attribute3555 mm
Attribute360.8-1.2 N.m EN 60947-1
Attribute37cross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm
Attribute38, Attribute39, Attribute40, Attribute42Yes
Attribute41Free of Substances of Very High Concern above the threshold
Attribute43The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Attribute44X
Attribute45Pro-active compliance (Product out of EU RoHS legal scope)
Attribute46UL Listed || CSA
Attribute47IK03 IEC 50102
Attribute48, Attribute53-40-70 ?C
Attribute49EN/IEC 60947-1 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
Attribute5030 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Attribute515 gn 2-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Attribute52IP66 IEC 60529 || IP67
Attribute54class II IEC 60536
Attribute55NEMA 13 || NEMA 4X
Attribute56TH
AttributeKey00Range Of Product
AttributeKey01Mounting Diameter
AttributeKey02Type Of Operator
AttributeKey03Product Or Component Type
AttributeKey04Shape Of Signaling Unit Head
AttributeKey05Fixing Collar Material
AttributeKey06Head Type
AttributeKey07Contacts Type And Composition
AttributeKey08Sale Per Indivisible Quantity
AttributeKey09Bezel Material
AttributeKey10Contact Operation
AttributeKey11Operator Profile
AttributeKey12Product Compatibility
AttributeKey13Device Short Name
AttributeKey14Contacts Usage
AttributeKey15, height_AttribHeight
AttributeKey16Terminals Description Iso N?1
AttributeKey17Operating Force
AttributeKey18Short-Circuit Protection
AttributeKey19Operating Travel
AttributeKey20Contacts Material
AttributeKey21Positive Opening
AttributeKey22[Ith] Conventional Free Air Thermal Current
AttributeKey23, AttributeKey33Customizable
AttributeKey24[Uimp] Rated Impulse Withstand Voltage
AttributeKey25Device Presentation
AttributeKey26Resistance To High Pressure Washer
AttributeKey27Gcr Bridge
AttributeKey28[Ui] Rated Insulation Voltage
AttributeKey29[Ie] Rated Operational Current
AttributeKey30Electrical Durability
AttributeKey31Mechanical Durability
AttributeKey32Compatibility Code
AttributeKey34, width_AttribWidth
AttributeKey35, length_AttribDepth
AttributeKey36Tightening Torque
AttributeKey37Shape Of Screw Head
AttributeKey38Rohs Exemption Information
AttributeKey39Mercury Free
AttributeKey40Toxic Heavy Metal Free
AttributeKey41Reach Regulation
AttributeKey42Reach Free Of Svhc
AttributeKey43Weee
AttributeKey44China Rohs Regulation
AttributeKey45Eu Rohs Directive
AttributeKey46Product Certifications
AttributeKey47Ik Degree Of Protection
AttributeKey48Ambient Air Temperature For Operation
AttributeKey49Standards
AttributeKey50Shock Resistance
AttributeKey51Vibration Resistance
AttributeKey52Ip Degree Of Protection
AttributeKey53Ambient Air Temperature For Storage
AttributeKey54Overvoltage Category
AttributeKey55Nema Degree Of Protection
AttributeKey56Protective Treatment
DimensionUnitmm
Extra Product NamePush button, Harmony XB5, antimicrobial, grey bezel, green flush, 30mm, spring return, 1NO, marked I | Mayer Electric
UPC, MPN, SKUSQDXB5FA3311C0
depth, length55.0
height42.0
jsonUrlData/Product/SQUARE-D-Push-button-Harmony-XB5-antimicrobial-grey-bezel-green-flush-30mm-spring-return-1NO-marked-I-SQDXB5FA3311C0
jsonUrlData2095b74b4-ac78-45f9-ad89-aeea00581552
qtyInStock0
tierPrice10.0
width36.6

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXB5FA3311C0111 @ $0.00
