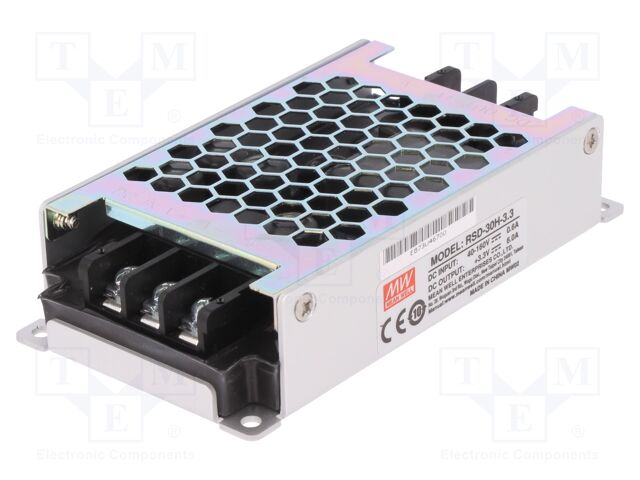

Mean Well Dc-Dc Converter, 3.3V, 6A - RSD-30H-3.3

DC-DC CONVERTER, 3.3V, 6A; No. of Outputs:1 Output; Output Power Max:20W; Output Voltage - Output 1:3.3V; Output Current - Output 1:6A; Output Voltage - Output 2:-; Output Current - Output 2:-; Output Voltage - Output 3:-; Output RoHS Compliant: Yes

<p><b>Features:</b></p> <p>Compliance to EN50155 and EN45545-2 railway standard</p> <p>Ultra compact and 1U low profile(25mm)</p> <p>4:1 wide input range</p> <p>No minimum load required</p> <p>Protections: Short circuit / Overload / Over voltage / Input reverse polarity</p> <p>4000VDC I/O isolation (reinforced isolation)</p> <p>Half encapsulated , cooling by free air convection</p> <p>-40~+70ºC wide working temperature</p> <p>Built-in constant current limiting circuit</p> <p>LED indicator for power on</p> <p>3 years warranty</p> <p></p> <p><b>General Specification:</b></p> <p>AC input voltage range:G: 9~36VDC; L: 18~72VDC; H: 40~160VDC</p> <p>AC adjustment range:3.3V: 0~6A, 5V: 0~6A, 12V: 0~2.5A, 24V: 0~1.25A</p> <p>Over voltage protection:3.3V: 3.8~4.5V, 5V: 5.75~7V, 12V: 13.8~16.2V, 24V: 27.6~32.4V, Protection type :Shut down o/p voltage , re-power on to recover</p> <p>Overload protection: 105~135% rated output power , Protection type: Constant current limiting, recovers automatically after fault condition removed</p> <p>Withstand voltage:I/P-O/P: 4KVDC ,I/P-F/G: 2.5KVDC ,O/P-F/G: 2.5KVDC</p> <p>Working temperature: -40 ~ +55ºC(no derating) ; +70ºC@ 60% load by free air convection ; +70ºC(no derating with external base plate)</p> <p>Safety standards: EAC TP TC 004 approved,IEC60950-1 (LVD)</p> <p>EMC standards: EN55032 Class A/B, EN6100-3-2,3;EN61000-4-2,3,4,5,6</p> <p>Isolation resistance:I/P-O/P,I/P-F/G,O/P-F/G: 100M Ohms/500VDC/25ºC/70% RH</p> <p>Dimension (LxWxH) (mm):113x 60x 25</p>
