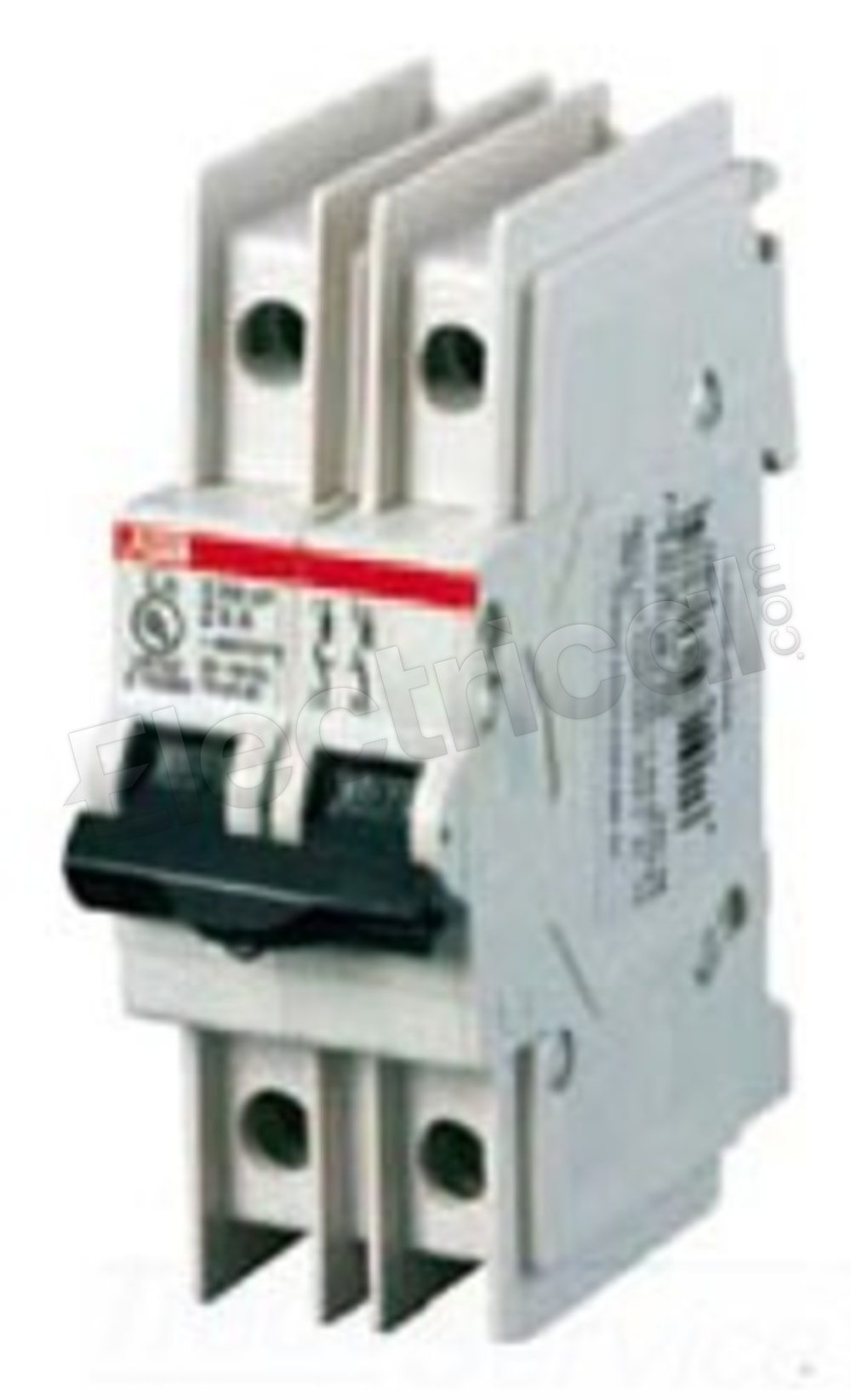

ABB - S202UP-Z16 - Circuit Breaker; 2-Pole; Z Curve; 16A; 480Y/277VAC; Handle; Screw Term.; UL 489 - RS

ABB S200 MINIATURE CIRCUIT BREAKER S202UP-Z16 MCB 2P Z 16A 480Y/277 BCPD

ABB S200UP-Z Low voltage 2-pole miniature circuit breaker has 480Y/277 VAC voltage rating and 16 A amp rating with a interrupt rating of 10 kA. Brand Name|ABB#MFR Part Number|S202UP-Z16#UPC|662019180519#UNSPSC|39121603#Item|Miniature Circuit Breaker#Type|Low Voltage#Series|S200UP-Z#Voltage Rating|480Y/277 VAC#Amperage Rating|16 A#Frequency Rating|50/60 Hz#Interrupt Rating|10 kA#Trip Type|Thermal/Magnetic#Trip Range|2 - 3 A Magnetic and 1.05 - 1.2 A Thermal#Number of Poles|2#Actuator Type|Toggle#Wire Size|18 - 8 AWG Busbar, 18 - 4 AWG Conductor#Terminal Type|Screw#Enclosure Type|IP20#Mounting Type|DIN-Rail#Temperature Rating|-25 to 55 deg C#Dimensions|100 mm Height x 35 mm Width x 71 mm Depth#Material|Insulation Group II, RAL 7035#Standard/Approvals|IEC/EN 60947-2, UL 489, CSA 22.2 No 5#Application|Equipment Protection in Commercial Appliances, Protection of Control Circuits Against Overcurrent Faults, Computer Equipment and Other Computer Peripheral Devices
