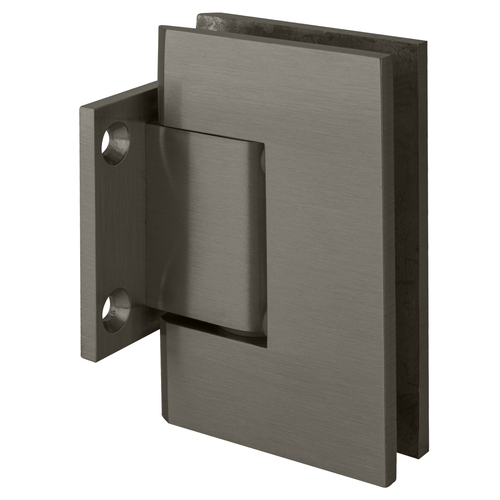

CRL ALUM-GEN074BSC-VCP-1 Brushed Satin Chrome Geneva 074 Series Wall Mount Short Back Plate Hinge

CRL-USALUM . ALUM-GEN074BSC-VCP-1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCRL-USALUM
Attribute00, Attribute173-1/2
Attribute01, Attribute202-3/16
Attribute025/16" to 1/2" (8 to 12 mm)
Attribute03, Attribute07Brushed Satin Chrome
Attribute04Short
Attribute055/16 To 1/2
Attribute06, Attribute09No
Attribute08Yes
Attribute10, Attribute2228
Attribute11, Attribute2132
Attribute12, Attribute18, Weight120
Attribute13, Attribute1980
Attribute14Wall Mount
Attribute15Brass
Attribute16Wall mount
AttributeKey00Height
AttributeKey01Width
AttributeKey02Glass Thickness
AttributeKey03Finish
AttributeKey04Back Plate
AttributeKey05Glazing Thickness
AttributeKey06Adjustable
AttributeKey07Finish/Color
AttributeKey08Self-Centering
AttributeKey095 Degree Pre-Set
AttributeKey10Maximum Door Width - 2 Hinges (Inches)
AttributeKey11Maximum Door Width - 3 Hinges (Inches)
AttributeKey12, Weight_AttribMaximum Door Weight - 3 Hinges (Pounds)
AttributeKey13Maximum Door Weight - 2 Hinges (Pounds)
AttributeKey14Mounting Type
AttributeKey15Material
AttributeKey16Mounting Style
AttributeKey17Height (Inches)
AttributeKey18Max Dr Weight - 3 Hinges (Lbs)
AttributeKey19Max Dr Weight - 2 Hinges (Lbs)
AttributeKey20Width (Inches)
AttributeKey21Max Dr Width - 3 Hinges (Inch)
AttributeKey22Max Dr Width - 2 Hinges (Inch)
CategoryIdL3Wall Mount Short Back Plate Hinges
CategoryL1Bathroom Hardware
CategoryL2Shower Door Hinges & Hinge Replacement Parts
Extra Product NameCRL ALUM-GEN074BSC-VCP-1 Brushed Satin Chrome Geneva 074 Series Wall Mount Short Back Plate Hinge
WeightUnitlbs
atoms, moq, multiple, tierMinQty11
extendedQty, qtyInStock0
MPNALUM-GEN074BSC-VCP-1
qtySourceupdateFromUrlEntry
snippet<br/> The <b>CRL Geneva Series</b> of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types. Geneva Hinges are self-centering and contain a Reversible 5 Degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off-angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.<br/><b>Standard Reversible Pivot Pin:</b> Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90 Degrees. The opposite side is marked 85 Degrees. Standard Geneva Hinges come with the 90 Degrees side activated. Offset Models come with the Pin pre-set to 85 Degrees (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.<br/><b>Custom Pivot Pin:</b> Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate "off-angle" installations. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). If using the Custom Pivot Pin, contact our Technical Sales Shower Door Department. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin.<br/> Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).<br/> Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).<br/><b>SPECIFICATIONS:</b><br/><b>Glass Thickness:</b> 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass<br/><b>Special Feature:</b> Offers choice of Standard Model factory set at standard 0 degree closing position, or 5 degree Pre-Set Model for tighter closure into shower interior.<br/><b>Construction:</b> Solid Brass <br/><b>Hinge Swings:</b> 90 degree in and 90 degree Out<br/><b>Closing Type:</b> Self-Centering when within 15 degree of Closed Position<br/><b>Cut-Out Required Includes:</b> Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.<br/> Custom finishes are available on request. Contact Technical Sales Shower Door Division.<br/><b>Product Warning:</b><br/>CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.<br/> Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.<br/><p>Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.</p>
tierPrice1104.54

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareALUM-GEN074BSC-VCP-1111 @ $104.54
