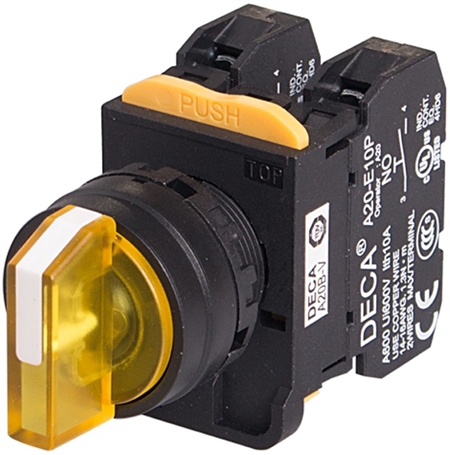

Deca A20F-3E02QHY 22 mm maintained selector switch has a yellow lens with a 2NC contact arrangement. 3 position switch with 110V LED. Rated IP 65

Deca . A20F-3E02QHY

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDeca
Attribute00Plastic
Attribute01Maintained, 3 Position
Attribute02Yellow
Attribute032NC
Attribute04Silver
Attribute05250VAC
Attribute0610A
Attribute07600V
Attribute083V AC/DC x 3mA
Attribute09Max. 50 mOhm
Attribute10100 MOhm at 500VDC
Attribute11Contact Block: 2500 VAC for 1 min; Illuminated Unit: 2000 VAC for 1 min
Attribute125-55Mhz, amplitude: 0.5mm (Operation Extremes), 50Mhz, amplitude 1.5mm (Damage Extremes)
Attribute13Operation Extremes: 100m/s
Attribute14, Attribute15250,000 (1 contact), 100,000 (2 contacts)
Attribute1645-85% RH
Attribute17IP 65
Attribute1820W 5sec / 260 C 3sec
Attribute19UL & CUL Listed, CE
AttributeKey00Bezel
AttributeKey01Selector Switch Type
AttributeKey02Selector Switch Color
AttributeKey03Contact Arrangement
AttributeKey04Contact Material
AttributeKey05Rated Insulation Voltage
AttributeKey06Thermal Current
AttributeKey07Max Voltage
AttributeKey08Min Applicable Load
AttributeKey09Contact Resistance
AttributeKey10Insulation Resistance
AttributeKey11Dielectric Strength
AttributeKey12Vibration Resistance
AttributeKey13Shock Resistance
AttributeKey14Mechanical Durability
AttributeKey15Electrical Life
AttributeKey16Ambient Humidity
AttributeKey17Degree of Protection
AttributeKey18Terminal Soldering
AttributeKey19Approvals
Weight0.1
WeightUnitlbs
moq, multiple, tierMinQty11
MPN, SKUA20F-3E02QHY
qtyInStock0
snippetDeca A20F-3E02QHY 22 mm maintained selector switch has a yellow lens with a 2NC contact arrangement. 3 position switch with 110V LED. Rated IP 65
tierPrice116.36

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Products For AutomationA20F-3E02QHY111 @ $16.36
GuardianAMER-A20F-3E02QHY1-211 @ $20.20
