Em S ESP-L16EM1 | Unit Bearing Motor 1/2 Inch Length Sleeve Cwle | 4M153 | Raptor Supplies Worldwide
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AD8TET | 1 | 1 | 1 @ $121.08 | ||
| Grainger | 4M153 | 1 | 1 | ||
| sustainablesupply.com | C1561376 | 1 | Add to Cart | 1 | 1 @ $98.18 |
 simsupply.com | ZO-G3137793 | 1 | 37 | 1 | 1 @ $145.05 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

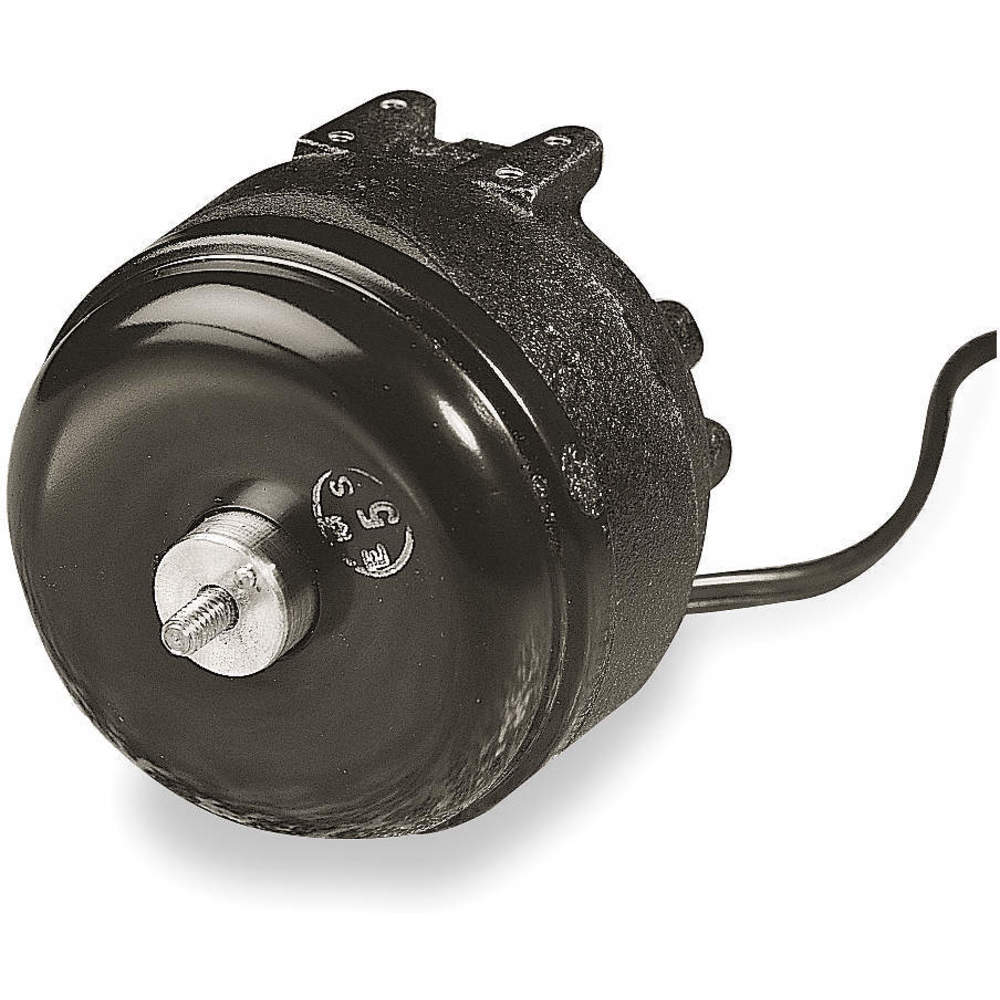

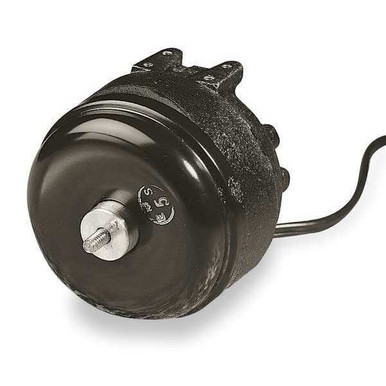

Unit Bearing Motor, 1/2 in. L, Sleeve, CWLE
Brand: EMS
' Unit Bearing Motor, Shaded Pole, Totally Enclosed Air-Over, 1/47 HP, 1500 Nameplate RPM, Frame Non-Standard, Voltage 115, Hz 60, 1 Phase, Full Load Amps 0.80, Output Watts 16, Rear/Foot Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class A, Motor Service Factor 1.00, Sleeve Motor Bearings, Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Overall Length 4 In., Motor Shaft Design Threaded '
Details
- Price For: Each Hz: 60 Motor Shaft Rotation: CWLE Frame: Non-Standard Frame Material: Cast Iron Phase: 1 Motor Mounting Type: Rear/Foot Max. Ambient Temp.: 40 Degrees C Motor Sub Application: Refrigerator/Freezer Motor Application: HVAC/R Motor Enclosure Design: Totally Enclosed Air-Over Item: Unit Bearing Motor Motor Mounting Position: All Angle
- Motor Design: Shaded Pole Motor Service Factor: 1.00 Motor Thermal Protection: Auto Length Less Shaft: 3-1/2" Body Dia.: 3-7/8" Motor Bearings: Sleeve Voltage: 115 Motor Shaft Design: Threaded Shaft Length: 1/2" Shaft Dia.: 1/4" Overall Length: 4" Output Watts: 16 Nameplate RPM: 1500 Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240 HP: 1/47 Ins. Class: A
- Full Load Amps: 0.80 Country of Origin (subject to change): United States
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRIC_MOTOR |
| Part number | ESP-L16EM1 |
| Label | EM&S |
| Manufacturer | EM&S |
Catalog
| Feature | <b>Price For:</b> Each <b>Hz</b>: 60 <b>Motor Shaft Rotation</b>: CWLE <b>Frame</b>: Non-Standard <b>Frame Material</b>: Cast Iron <b>Phase</b>: 1 <b>Motor Mounting Type</b>: Rear/Foot <b>Max. Ambient Temp.</b>: 40 Degrees C <b>Motor Sub Application</b>: Refrigerator/Freezer <b>Motor Application</b>: HVAC/R <b>Motor Enclosure Design</b>: Totally Enclosed Air-Over <b>Item</b>: Unit Bearing Motor <b>Motor Mounting Position</b>: All Angle |
|---|---|
| Category | Industrial & Scientific |
| MPN | ESP-L16EM1 |
| Product group | BISS |
| Product type | ELECTRONIC_COMPONENT |
| Manufacturer | EM&S |
EM&S 1/47 HP Unit Bearing Motor, Shaded Pole, 1500 Nameplate RPM, 115 Voltage, Frame Non-Standard - ESP-L16EM1
Brand: EM&S
<p><b>Specifications: </b><ul><li>Item:-Unit Bearing Motor</li><li>Motor Application:-HVAC/R</li><li>Motor Sub Application:-Refrigerator/Freezer</li><li>Motor Type:-Shaded Pole</li><li>Enclosure:-Totally Enclosed Air-Over</li><li>HP:-1/47</li><li>Nameplate RPM:-1500</li><li>Frame:-Nonstandard</li><li>Voltage:-115</li><li>Hz:-60</li><li>Phase:-1</li><li>Full Load Amps:-0.8</li><li>Output Watts:-16</li><li>Mounting:-Rear and Double Foot</li><li>Thermal Protection:-Auto</li><li>Insulation Class:-A</li><li>Service Factor:-1.0</li><li>Bearings:-Sleeve</li><li>Frame Material:-Cast Iron</li><li>Max. Ambient Temp.:-40 Degrees C</li><li>Rotation:-CWLE</li><li>Length Less Shaft:-3-1/2"</li><li>Overall Length:-4"</li><li>Shaft Type:-Threaded 1/4-20</li><li>Shaft Dia.:-1/4"</li><li>Shaft Length:-1/2"</li><li>Body Dia.:-3-7/8"</li><li>RPM Range:-1401-1500</li><li>UNSPSC:-26101602</li></ul></p>
Details
- Item:-Unit Bearing Motor
- Motor Application:-HVAC/R
- Motor Sub Application:-Refrigerator/Freezer
- Motor Type:-Shaded Pole
- Enclosure:-Totally Enclosed Air-Over
Listing
| Product group | Home Improvement |
|---|---|
| Product type | ELECTRIC_MOTOR |
| Part number | ESP-L16EM1 |
| Label | EM&S |
| Manufacturer | EM&S |
