Order PBLT2-20-100 by Mercoid Series PBLT2 Submersible Level Transmitter - US Mega Store

Mercoid . PBLT2-20-100

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMercoid
Attribute00, Attribute16Compatible liquids
Attribute01, Attribute17316 SS, 316L SS, Epoxy, cable: ETFE
Attribute02, Attribute18±0.25% full scale (includes linearity, hysteresis, and repeatability)
Attribute03, Attribute190 to 200°F
Attribute04, Attribute200 to 180°F
Attribute05, Attribute21±0.02% FS/°F
Attribute06, Attribute222X full scale
Attribute07, Attribute2313 to 30 VDC
Attribute08, Attribute244 to 20 mA DC, two wire
Attribute09, Attribute2550 msec
Attribute10, Attribute26900 Ω
Attribute11, Attribute27Wire pigtail
Attribute12, Attribute28Suspended in tank below level being measured
Attribute13, Attribute294.3 lb (2.0 kg)
Attribute14, Attribute30Lightning and surge protection
Attribute15, Attribute31None
AttributeKey00, AttributeKey16Service
AttributeKey01, AttributeKey17Wetted Materials
AttributeKey02, AttributeKey18Accuracy
AttributeKey03, AttributeKey19Temperature Limit
AttributeKey04, AttributeKey20Compensated Temperature Range
AttributeKey05, AttributeKey21Thermal Effect
AttributeKey06, AttributeKey22Pressure Limit
AttributeKey07, AttributeKey23Power Requirement
AttributeKey08, AttributeKey24Output Signal
AttributeKey09, AttributeKey25Response Time
AttributeKey10, AttributeKey26Loop Resistance
AttributeKey11, AttributeKey27Electrical Connection
AttributeKey12, AttributeKey28Mounting Orientation
AttributeKey13, AttributeKey29, Weight_AttribWeight
AttributeKey14, AttributeKey30Electrical Protection
AttributeKey15, AttributeKey31Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Transmitters
CategoryL3Level
CategoryL4Mercoid PBLT2-20-100
ConditionNEW
Extra Product NameOrder PBLT2-20-100 by Mercoid Series PBLT2 Submersible Level Transmitter - US Mega Store
Weight4.3
WeightUnitlbs
moq, multiple, tierMinQty11
MPN, SKUPBLT2-20-100
qtyInStock2 Weeks Factory Lead Time

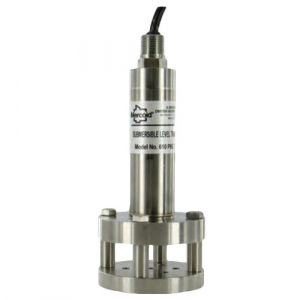

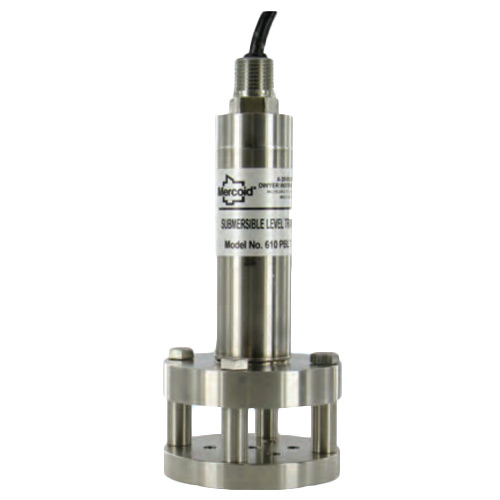

snippet<p><strong>Series PBLT2 Submersible Level Transmitter, Model - Lightning & Surge Protected, Range 20 psi (46.18 ft wc), Length 100 ft ETFE Cable </strong> </p> <p>PBLT2 Submersible Level Transmitters are manufactured for years of trouble free service in the harshest applications. Both measure the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing. Perfect for wastewater and slurry applications with features to protect the unit from these demanding applications. Large diameter 316 SS diaphragm seal is non-clogging and damage resistant to floating solids. The PBLT2 incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients. Units come equipped with a 270-pound tensile strength shielded and vented cable. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The vent is protected with a maintenance free filter eliminating particulate or water droplets from entering the transducer. </p> <p><strong>Features </strong> </p> <ul><li>Durable cage design with large diameter 316 SS diaphragm seal that is non-clogging and damage resistant to floating solids </li> <li>Incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients </li> <li>Maintenance free filter eliminates particulate or water droplets from entering the transducer </li> <li>270 lb (122.5 kg) tensile strength shielded and vented cable </li> <li>Excellent chemical compatibility </li> <li>NPT connection allows the unit to be rigidly installed in a pipe/conduit, or the addition of a A-625 hanging loop for attaching a chain for pulling out of the installation </li> </ul> <p><strong>Applications </strong> </p> <ul><li>Wastewater </li> <li>Sludge pits, clarifiers, digesters </li> <li>Alum tanks </li> <li>Chemical storage tanks </li> <li>Oil tanks </li> <li>Lime slurry </li> <li>Sumps </li> <li>Reservoirs </li> </ul>
tierPrice11398

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comPBLT2-20-10012 Weeks Factory Lead Time11 @ $1398.00
MegadepotPBLT2-20-100111 @ $1360.00
