Hoffman A24H20BLP | Continuous Hinge with Clamps LP Type 4,

Part Number: 783510244408 <br> Part: Hoffman A24H20BLP Enclosure, Wall-Mount, Type 4, 24" x 20" x 8", Steel/Gray <br> Wall-Mount, Type 4, Enclosure, Size/Dims: 24" x 20" x 8", Material/Finish: Steel/Gray <br> Product Height:24 in <br> Material:Steel, Mild Steel <br> IP/NEMA Rating:4, IP66 <br> Type:Single Door, Hinged Cover <br> Product Width:20 in <br> Product Depth:8 in <br> Also known as: 783510244408, pull boxes, wall mount enclosure, nema 4, nema 4 enclosure, industrial enclosure, hinge cover, 1 door, HOFA24H20BLP, Hoffman, A24H20BLP, 1-Door - Type 4, Wall Mount Enclosures, Enclosures - Industrial Type, Boxes, Enclosures <br> Equivalent to: <ul><li>Hoffman</li><li>A24H20BLP</li><li>01783510244407</li><li>Hoffman</li><li>A24H20BLP</li><li>783510244408</li></ul>

Cover features screw-down clamp latches for a reliable seal. Order interior panel separately.<br /><br /> Item - Electrical Enclosure: Enclosure<br /> Enclosure NEMA Rating: 12,13,4<br /> Metallic / Non-Metallic: Metallic<br /> Material of Enclosure: Carbon Steel<br /> Nominal Enclosure Depth: 8"<br /> Nominal Enclosure Height: 24"<br /> Nominal Enclosure Width: 20"<br /> Enclosure Cover Type: Hinged<br /> Solid / Clear Cover: Solid<br /> Closure Method: Screwdown Clamps<br /> Knockouts: No<br /> Finish: ANSI 61 Polyester Powder<br /> Color: Gray<br /> Depth: 8.00"<br /> Enclosure Cover Features: Clamps<br /> Features: Data Pocket<br /> Gasket: Neoprene<br /> Height: 24.00"<br /> Interior Panel: 32FT40<br /> IP Rating: 66<br /> Metal Gauge: 14/16<br /> Mounting: Wall<br /> Series: A4<br /> Standards: UL Listed, CSA Certified, IEC, cUL<br /> Width: 20.00"<br />

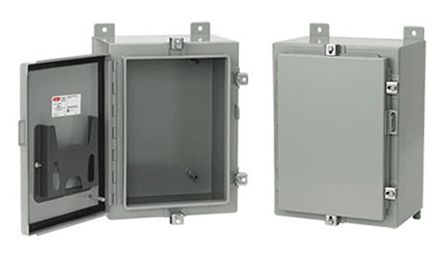

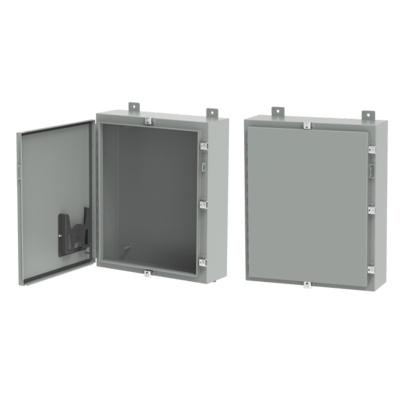

Physical Dimension: 20 Inch Width x 8 Inch Depth x 24 Inch Height Images are representative of products listed and may not be actual product Seams continuously welded and ground smooth Stainless steel door clamps on three sides of door Hasp and staple provided for padlocking Purchase panels separately Hoffman Pentair Wall-mount solid single door equipment protection enclosure in ANSI 61 gray color is made of 16-gauge steel with polyester powder paint finish to provide durability and superior corrosion resistance. Enclosure has a hinged door with stainless steel clamps on three sides for a safe seal in indoor/outdoor environments. It measures 20 Inch x 8 Inch x 24 Inch. It allows for padlocking with hasp and staple. Enclosure comes with five clamps and formed external flanges around all sides of enclosure opening. Enclosure features heavy gauge stainless steel continuous hinge pin that can be removed when desired. It has small, high-impact thermoplastic data pocket for convenience. Continuous hinge with clamps enclosure includes external wall-mounting brackets and collar studs for mounting optional panels easily. Enclosure is UL/cUL listed and NEMA rated. Continuous Hinge with Clamps, Type 4, 24.00 , Gray, Steel 1-DOOR TYPE; MILD STEEL MATERIAL; POLYESTER POWDER COATED FINISH; ANSI 61 GRAY COLOR; 20 INCH; 24 INCH; 8 INCH; UL 508A, CUL, CSA C22.2 APPROVAL; WALL, EXTERNAL BRACKET MOUNTING; NEMA 3/4/12/13, IP66 ENCLOSURE; CONTINUOUS HINGED WITH REMOVABLE PIN, CLAMP, GASKETED, PADLOCKABLE HASP AND STAPLE COVER TYPE; 16 GAUGE MATERIAL SPECIFICATION; INDOOR/OUTDOOR SERVICE TYPE; A24P20 BACK PANEL; LEAD-FREE; ROHS COMPLIANT; NUMBER OF CLAMPS 5; BACK PANEL SIZE 17 INCH WIDTH X 21 INCH HEIGHT; APPLICABLE STANDARD IEC 60529; A4 MODEL
