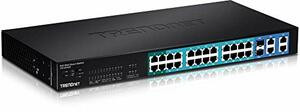

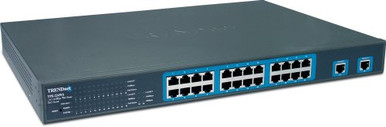

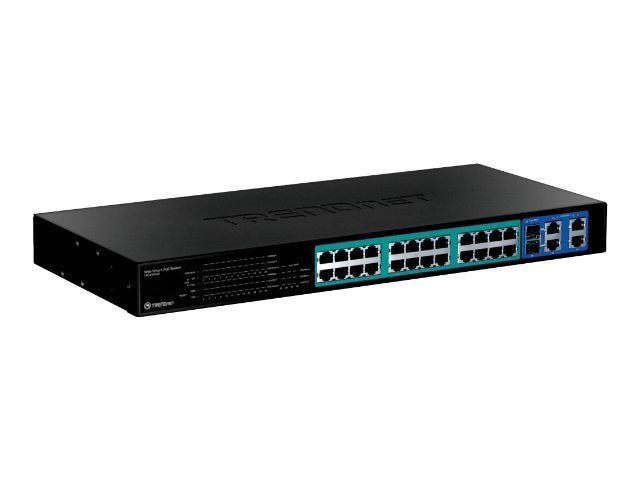

TRENDNET INC TPE-224WS 24-PORT PORTS AND 2 MINI-GBIC SLOTS

Description: <p> TPE-224WS 26-port Smart Switch integrates power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-224WS reduces equipment cost by delivering data and power over existing network cable infrastructure. The switch offers advanced network management features such as VLAN and QoS to meet today's secured network applications. <p> Features: <p> <li> IEEE 802.3af Power over Ethernet (PoE) Standard Compliant<li> 24 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet PoE RJ-54 Ports<li> 2 x 10/100/1000Mbps Auto-Negotiating and Auto-MDIX Gigabit Ports<li> Supports PoE Power up to 15.4 watts for each PoE port<li> Supports PoE Power maximum up to 170 watts for all PoE ports<li> Supports PoE Powered Device(PD) classification identify<li> Full Wire-Speed Non-Blocking Reception and Transmission<li> Store and Forward Switching Method<li> 768K bytes RAM Data Buffer and 4K entries MAC Address Table<li> Extensive Diagnostic LED's on the Front Panel<li> IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode<li> Proprietary Windows Based Management/Monitoring Utility (similar to SNMP Trap)<li> Supports Port-Based VLAN, Trunking and Port Mirroring<li> Port Setting Function, Users can set each Port's Availability, Speed, Duplex Mode, and Flow Control<li> Easy configuration via Web browser<li> Standard 19" (1U) Rack-Mount size (kit included) <p><p>

TRENDnet's TPE-224WS is a 24-Port 10/100Mbps w/PoE Smart Switch with 4-Gig Ports & 2-SFP Slots, that integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-224WS reduces equipment cost by delivering data and power over existing network cable infrastructure. The switch offers advanced network management features such as VLAN and QoS to meet today s secured network applications

Shipping Depth: 22.0 Shipping Height: 3.8 Shipping Width: 12.2 Master Pack Qty: 3 General Information Manufacturer: TRENDnet Manufacturer Part Number: TPE-224WS Brand Name: TRENDnet Product Line: WebSmart Product Model: TPE-224WS Product Name: 24-Port 10/100Mbps Web Smart PoE Switch Marketing Information: The 24-Port 10/100Mbps Web Smart PoE Switch with 4 Gigabit Ports and 2 Shared Mini-GBIC Slots (model TPE-224WS) delivers a 12.8Gbps switching capacity with Power over Ethernet (PoE) technology and managed layer 2 features at a reduced cost. Support for SNMP v1, 802.1x, STP, 802.1Q VLAN, QoS, IGMP snooping, Broadcast Storm Control and port Trunking provide a cost effective, scalable and secure backbone PoE switch solution for SMB networks. Power over Ethernet (PoE) technology reduces equipment and installation costs by delivering data and power over existing Ethernet cables. SNMP support enables the switch to provide valuable status and event information, saving system administrators time and resources. Access the Web-browser management interface and segment up to 256 Virtual Local Area Networks, manage network priority with 802.1p support and dedicate bandwidth with port-based Trunking. Product Type: Ethernet Switch Interfaces/Ports Number of Ports: 28 Gigabit Ethernet Port: Yes Interfaces/Ports: 24 x RJ-45 10/100Base-TX LAN Interfaces/Ports: 4 x 10/100/1000Base-T LAN I/O Expansions Number of Expansion Slots: 2 Expansion Slots: (2 Total) SFP (mini-GBIC) Shared Management Protocols Manageable: Yes Power Description Input Voltage: 220 V AC Input Voltage: 110 V AC Input Voltage Range: 100 V AC to 240 V AC Physical Characteristics Height: 1.7 Width: 17.3 Depth: 12.0 Weight (Approximate): 9.77 lb Miscellaneous Package Contents: TPE-224WS Gigabit Web Smart PoE Switch Multi-Language User's Guide Web-Smart Utility CD-ROM Power Supply Rack Mount Kit Warranty Standard Warranty: 5 Year

ETHERNET PORT INTERFACE: 20 x PoE ports (15.4 W / port), 4 x PoE+ ports (30 W / port), 2 x Gigabit ports, 2 x Shared Gigabit ports (RJ-45 or SFP) FULL POE+ POWER BUDGET & SWITCHING CAPACITY: The Web Smart PoE+ switch has a 193 W PoE power budget that supplies PoE+ (up to 30 W) to ports 1-4 and PoE (up to 15.4 W) to ports 5-24 along with PD (powered device) auto classification and over current / short circuit protection. WEB SMART MANAGEMENT: The 28 Port Switch provides an easy to use web-based GUI management for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment. INTEGRATION FLEXIBILITY: The PoE+ network switch managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap and syslog for monitoring and flexible network integration. TRAFFIC MANAGEMENT: This web smart Ethernet switch has a broad range of network configurations that are support by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, GVRP, 802.1p Class of Service (CoS), and QoS queue scheduling TROUBLESHOOTING CAPABILTIES: The network switch provides real time traffic comparison charts, error group charts, and a convenient cable diagnostic test that aides in rapid troubleshooting. TRENDnet LIFETIME PROTECTION: All metal TRENDnet switches come with lifetime manufacturer protection. NDAA / TAA compliant (U.S. and Canada only) TRENDnet's 24-Port 10/100 Mbps Web Smart PoE+ Switch, model TPE-224WS, offers 24 x 10/100 Mbps PoE ports (Ports 1-4 support PoE+), 4 x Gigabit ports, 2 x shared SFP slots, and a PoE Power budget of 193 W. This IPv6 ready switch offers advanced traffic management, troubleshooting, access control, energy saving GREENnet, and monitoring features at a reduced cost. Power over Ethernet The 193 W PoE power budget supplies PoE+ (up to 30 W) to ports 1-4 and PoE (up to 15.4 W) to ports 5-24 along with PD (powered device) auto classification and over current / short
