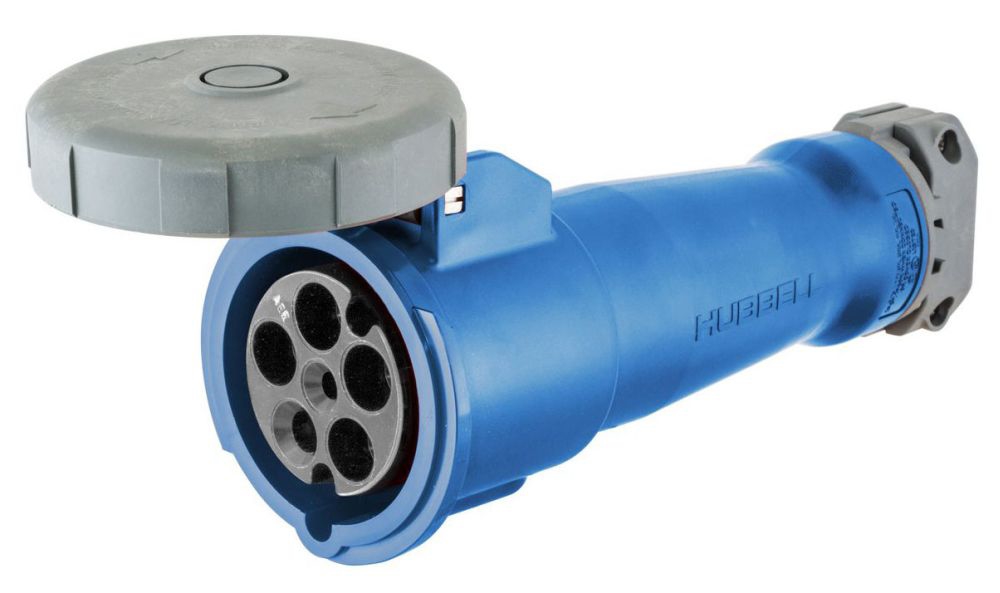

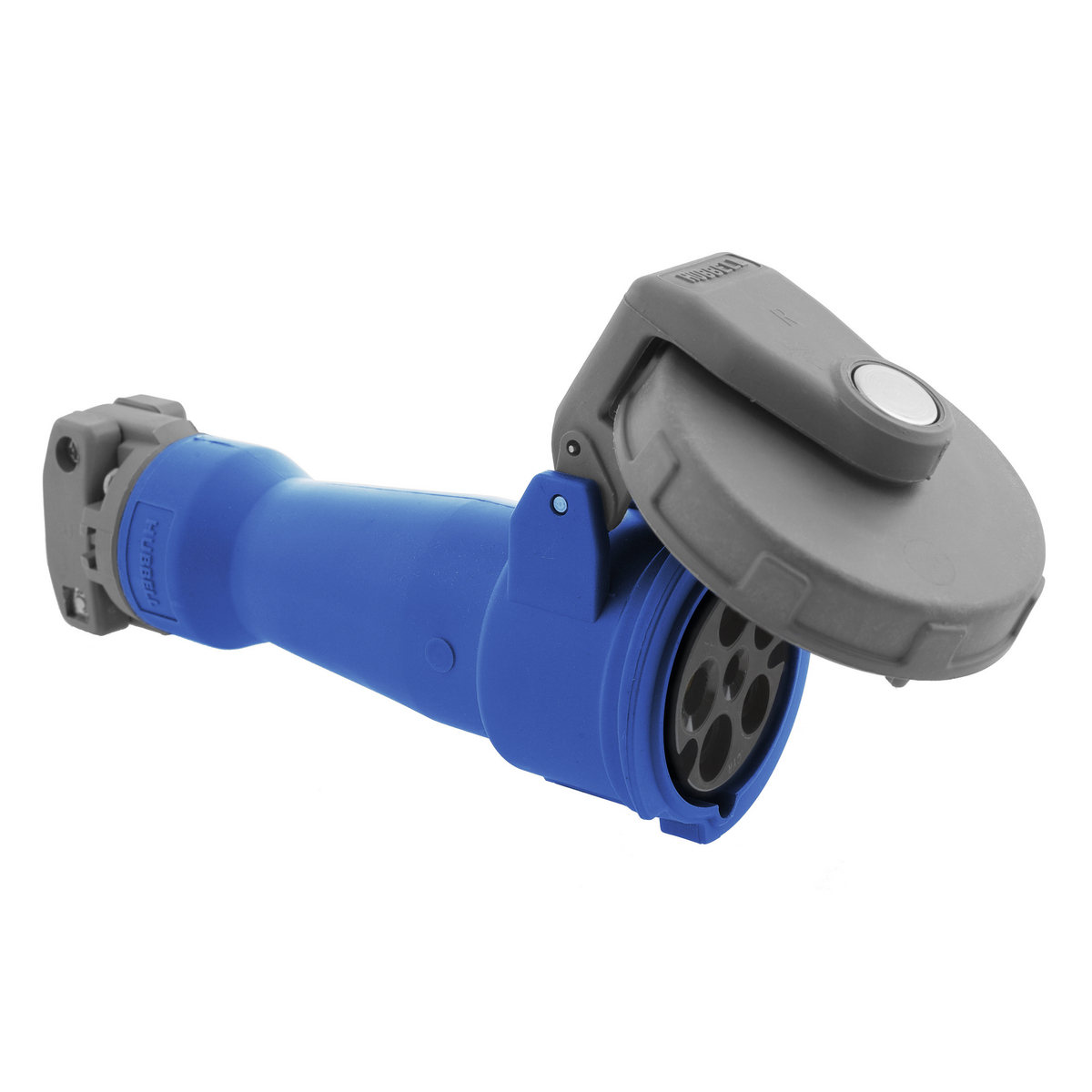

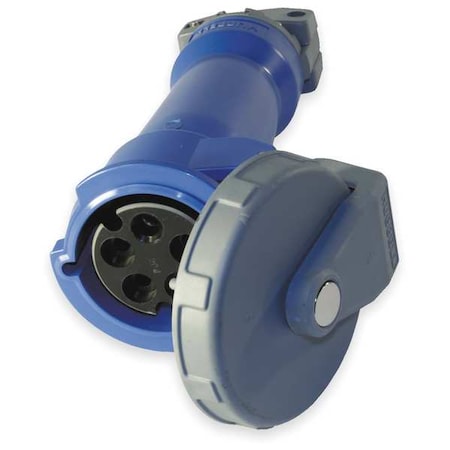

Hubbell Wiring Devices Connector, 30A 120/208V, 4P5W, Cable - HBL530C9W

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 30A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight

'Watertight Pin and Sleeve Connector, Number of Poles 4, Number of Wires 5, Amps 30, Color Blue, Switch Rated No, Phase 3Y, HP 2, Voltage 120/208VAC, Body Material Zytel 801 Nylon, Features Abuse Resistant, Standards UL Listed, CSA Certified, IEC 60309-1 and 60309-2'

Product Overview The HBL530C9W is a 4-pole 5-wire male watertight IEC Pin and Sleeve Inlet with pin-type silver-plated brass contacts. It has high-impact thermoset retainer, Rynite SST35 lock ring and a neoprene gasket. The IEC watertight device provides safe and dependable performance in the most demanding environments. The heavy-duty non-conductive nylon construction provides impact and corrosion protection. The thermoset polyester contact carriers withstand high temperatures and provide resistance to electrical tracking. The IEC pin and sleeve device is colour coded by voltage for easy identification. Zytel 101 nylon mounting flange 2HP Power rating 30A Current rating 3000VAC Dielectric withstand voltage 600V RMS Maximum working voltage IP67 Ingress protection Applications Industrial This listing is for Each. Brand Hubbell Wiring Device-Kellems Sub Brand Pin and Sleeve Country of Origin United States Made in USA Yes Amperage Rating 30 Application High Ampacity Connections Color Blue Conductor Range #12 AWG to #8 AWG Connection Pressure Screw Terminal Insulation Insulated Body Material Composite Mounting Cord Mounted NEMA Rating Non-NEMA Number of Conductors 5-Wire Grounding Number of Poles 4 Special Features Watertight Standard CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033 Item Type Watertight Connector Body Size Standard Environmental Conditions Watertight Temperature Rating Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact. Voltage Rating 3 Phase Y 120/208

IEC Nonmetallic Watertight Pin and Sleeve DevicesDesigned and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.<br /><br /> Item - Plugs and Receptacles: Watertight Pin and Sleeve Connector<br /> Body Material - Pin and Sleeve: Zytel 801 Nylon<br /> Amps - Plugs and Receptacles: 30<br /> Voltage - Plugs and Receptacles: 120/208VAC<br /> Color - Plugs and Receptacles: Blue<br /> Number of Poles: 4<br /> Number of Wires: 5<br /> Phase - Electrical: 3Y<br /> Switch Rated: No<br /> Grounding Style: IEC<br /> HP: 2<br /> Features: Abuse Resistant<br /> Standards: UL Listed, CSA Certified, IEC 60309-1 and 60309-2<br /> Item: Watertight Pin and Sleeve Connector
