Kyocera

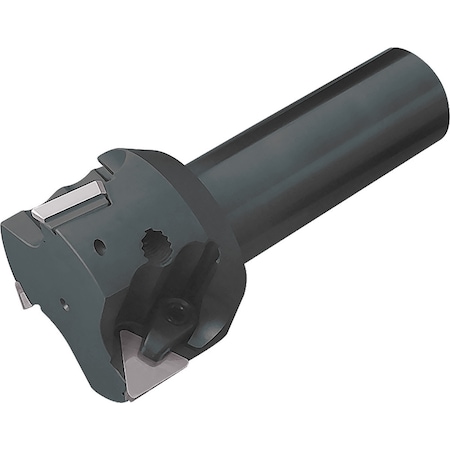

<ul><li>Right-Hand, Standard Length, 90 Degree End Mill</li><li>Shouldering, Facing, Slotting Applications</li><li>Compatible with TPMR32PDER-H, TPKN32PDTR, TPKN32PDFR, TPG32…, TPM32… Inserts</li></ul><p>Product Details:</p><ul><li>Cutter Style: MTP</li><li>Hand of Holder: Right-Hand</li><li>Series: MTP</li><li>Lead Angle (Degree): 90</li><li>Shank Type: Standard Length</li><li>Weldon Flat: Yes</li><li>[DC] Cutting Diameter (Decimal Inch): 2.0000</li><li>[DC] Cutting Diameter (mm): 50.80</li><li>[DCON] Shank Diameter (Decimal Inch): 0.9490</li><li>[DCON] Shank Diameter (mm): 24.10</li><li>[LF] Functional Length (Decimal Inch): 6.0000</li><li>[LF] Functional Length (mm): 152.40</li><li>[LH] Head Length (Decimal Inch): 2.0030</li><li>[LH] Head Length (mm): 50.88</li><li>[APMX] Maximum Depth of Cut (Decimal Inch): 0.5300</li><li>[APMX] Maximum Depth of Cut (mm): 13.46</li><li>[A.R.] Axial Rake Angle (Degree): +5</li><li>[R.R.] Radial Rake Angle (Degree): 0</li><li>Number of Inserts: 3</li><li>Number of Flutes: 3</li><li>Multi-Use Tool: Yes</li><li>Coolant Through: No</li><li>Insert Holding Method: Clamp</li><li>Toolholder Material: Steel</li><li>Application: Shouldering, Facing, Slotting</li><li>Unit of Measure: Inch</li><li>Compatible Insert Hand: Right-Hand</li><li>Compatible Inserts (Partial): TPMR32PDER-H, TPKN32PDTR, TPKN32PDFR, TPG32…, TPM32…</li></ul>
