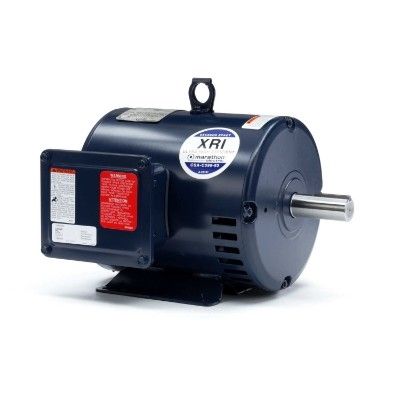

Marathon 182TTDW16049, General Purpose Motor, 3 HP, 230/460 Volts, 4.0 Amps, 3 Phase, 1760 RPM, 60 Hz, ODP Enclosure, 182T Frame, Rigid base, Footless Mounted, Rolled Steel Frame, Catalog No: U426B

Designed for mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps, this general purpose motor helps keep equipment moving. It features an open dripproof motor enclosure design.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: 3-Phase<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 3<br /> Nameplate RPM: 1770<br /> Frame: 182T<br /> Voltage: 230/460<br /> Hz: 60/50<br /> Phase: 3<br /> Full Load Amps: 8.6-8.0/5.0<br /> No. of Speeds: 1<br /> Motor Mounting Type: Rigid Base<br /> Motor Mounting Position: Horizontal<br /> Motor Thermal Protection: None<br /> Ins. Class: F<br /> Motor Service Factor: 1.15<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 1-1/8"<br /> Shaft Length: 2-3/4"<br /> Length Less Shaft: 10-3/8"<br /> Overall Length: 13-3/16"<br /> Motor Shaft Design: Keyed<br /> RPM Range: 1701-1800<br /> Standards: UL (E49747), CSA (LR2025)<br /> Duty: Continuous<br /> Motor Efficiency Group: NEMA Premium Efficient<br /> Nominal Efficiency: 87.5%<br /> CC Number: CC003A<br /> Inverter Rated: Yes<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 1701-1800<br />
