Moeller Swingarm Electric Sending Unit Complete Kit With Dash Mounted Gauge For 4" to 28" Tank Depth - 035726-10 - Boaters Plus

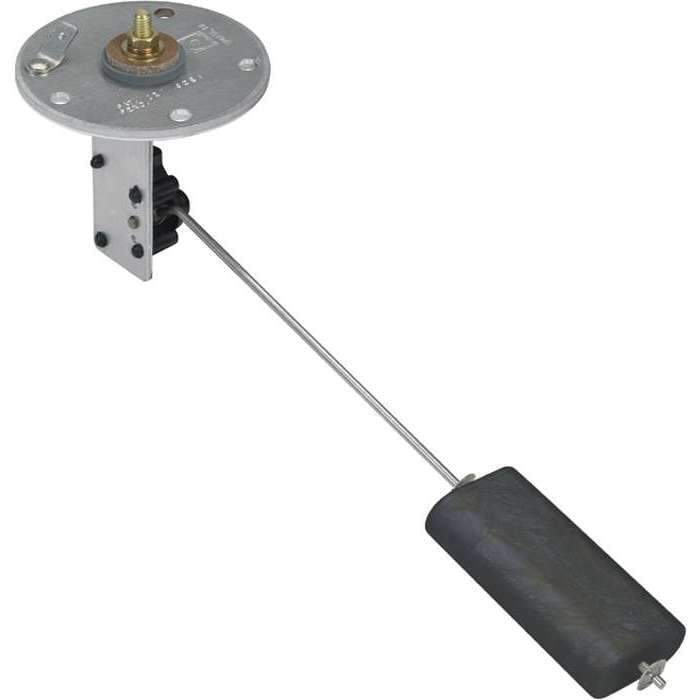

Swingarm Electric Sending Units gather fuel level information the same way as the mechanical sending units. It does, however, connect to a dash mounted gauge without a conversion capsule. Do it yourself friendly- measure the tank depth, minus one inch, and make the swingarm the correct length. Internal components are made of Ni-Chrome for added protection from corrosion and longer life Float rotates easily in 90 degree increments for tanks wall and baffle clearance. 33-240 Ohms Standard 5 screw bolt pattern with self sealing screws included Rubber gasket made of gas resistant compound.

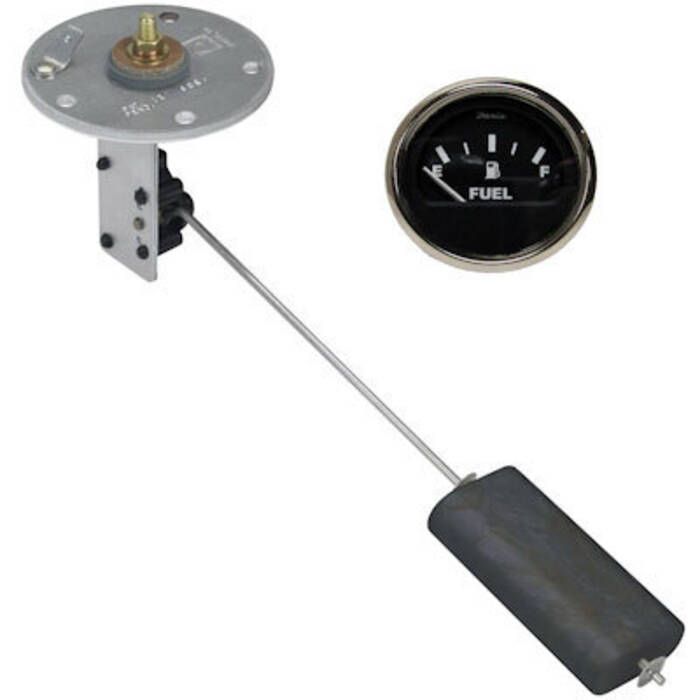

Moeller Electric Fuel Sending Unit and Gauge - UNIVERSAL ELECT SENDING UNIT 4-27"

Swingarm Electric Sending Units gather fuel level information the same way as the mechanical sending units. It does, however, connect to a dash mounted gauge without a conversion capsule. A DIY product, lets the consumer measure their tank depth and make the swingarm the correct length.<BR>Internal components will not rust or corrode.Float rotates easily in 90 degree increments for tanks wall & baffle clearance

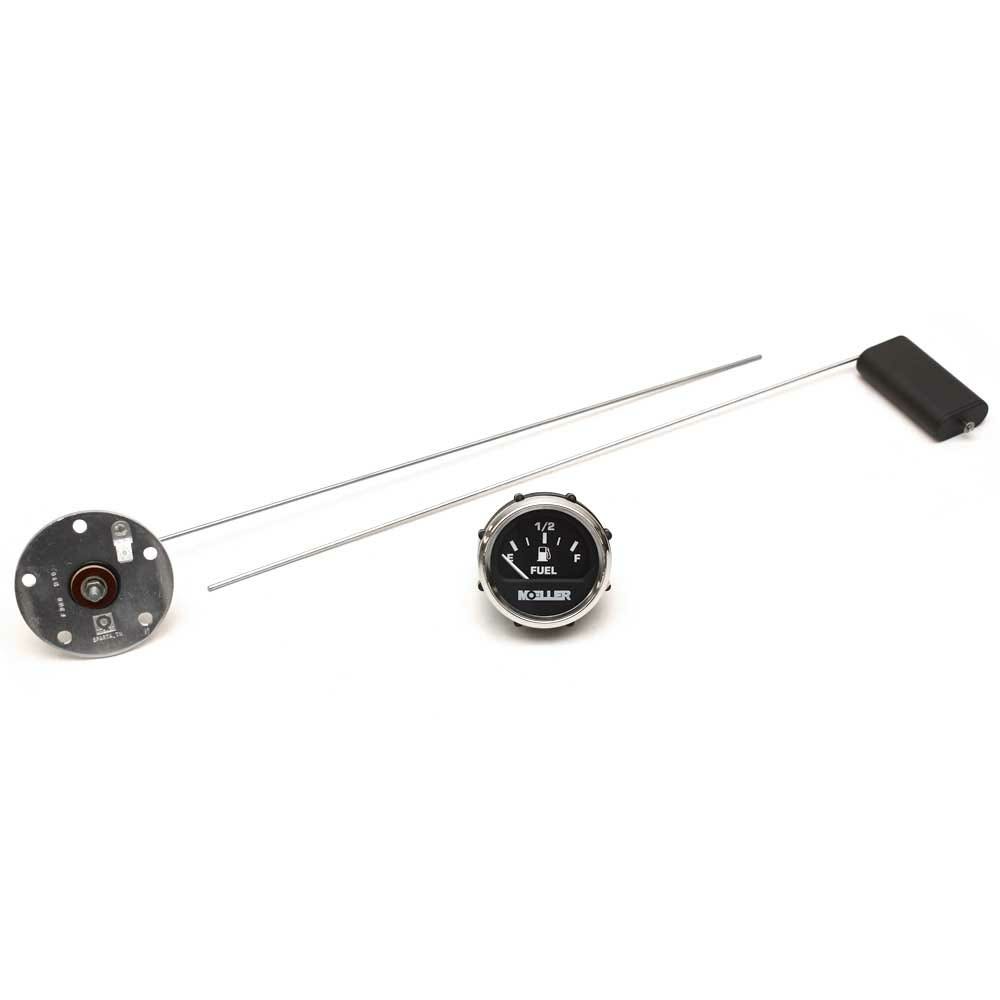

Boat part number 1107228 is a new fuel sender kit with gauge from Moeller Marine, kit number 035726-10 .<br /><br />This kit contains the following:<br /> <ul> <li>(1) 4"- 28" Adjustable Floating Arm Fuel Sending Unit</li> <li>(1) Faria Fuel Level Gauge - Part Number GP8092A</li> <li>Assorted Mounting Hardware</li> </ul> <br /><strong>Adjustable Floating Arm Fuel Sending Unit<br /></strong><br />This fuel sending unit is constructed out of aluminum, and measures approximately 2 1/4" L x 2 5/8" Dia. overall. Mounts with (5) 1/4" holes set apart 1 1/4" center to center. Uses (1) male spade connection. Features an approximately 14" L float arm and a 13" L shaft each with a 1/8" Dia. shaft. Calibrated to an industry standard of 33-240 Ohms. Per the manufacturer this sending unit is rated for a 4"-28" tank depth.<br /><br /><strong>Fuel Level Gauge<br /></strong><br />Manufactured by Faria, part number GP8092A . This clear halogen illuminated dash mounted gauge features a flat lens, black colored face, silver colored bezel, white lettering, numerals and accents, with a white needle.<br /><br />Measures approximately 2 1/4" OD (including bezel) x 2 1/8" D overall. Requires an approximate 2" Dia. cutout. Hosts (3) threaded bolts and (1) male spade connections. Calibrated to an industry standard of 33-240 Ohms.<br /><br /><strong>Gauge mounting bracket included. Gauge wire harness not included.</strong><br /><br />Specifications:<br /> <ul> <li>Part Manufacturer: Moeller Marine</li> <li>Part Number: 035726-10</li> <li>UPC: 739729726105</li> <li>Material: Aluminum (Fuel Sender)</li> <li>Gauge Color: Black (Face) | Silver (Bezel)</li> <li>Calibration: 33-240 Ohm</li> <li>Sending Unit Flange: 2 5/8" Dia</li> <li>Manufacturer Size: 4"- 28" Tank Depth (Fuel Sender)</li> <li>Overall Dimensions: 15" L x 2 5/8" Dia. (Fuel Sender)</li> <li>Shaft Size: 1/8" Dia. (Fuel Sender)</li> <li>Cutout: 2" Dia. (Gauge)</li> <li>Mounts: (5) 1/4" holes set apart 1 1/4" (Fuel Sender)</li> </ul> <br />Sold as seen in pictures. Customers please note every computer shows colors differently. All measurements are approximate.<br /><br />Hardware and instruction / installation manual included.
