OS Engines Carburetor #21D: 21VZ-M | Horizon Hobby

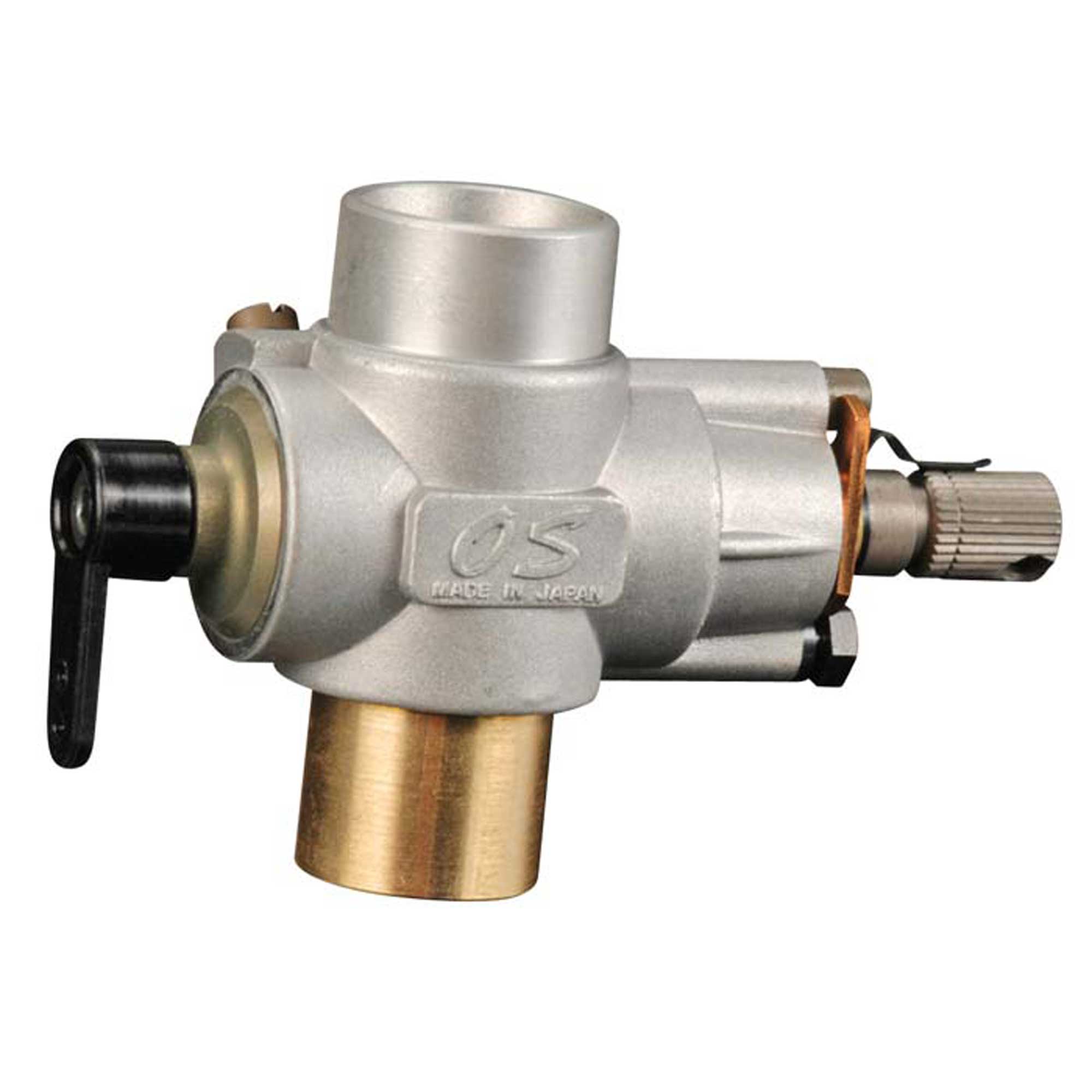

The is the complete Carb for the O.S. .21 VZ-M Marine Engine, OSMG1627. / / FEATURES: Genuine O.S. replacement parts / Natural aluminum construction / / INCLUDES: One complete Carb/w pre-installed Carb Spacer not avail separately / One OSMG6228 Rubber Gasket (goes between carb body & sealing washer) / One OSMG3860 Sealing Washer (goes between rubber gasket & crankcase) / / REQUIRES: Installing on engine / / SPECS: Length: 1.3"" (34mm) approx. including fuel inlet nipple / Width: 2.7"" (69mm) approx. including needle and throttle arm / Height: 1.6"" (41mm) approx. / Diameter: 0.66"" (16.9mm) OD of intake (throat) / 0.57"" (14.6mm) ID of intake @ widest point (top) / 0.40"" (9.95mm) ID of intake @ narrowest point (bottom) / 0.59"" (14.9mm) OD of neck including carb spacer / (the part that inserts into the crankcase) / 0.39"" (10mm) ID of neck @ narrowest point (top) / 0.45"" (11.5mm) ID of neck @ widest point (bottom)
