Ocean Matrix . OMX-AVHE2103G-BS

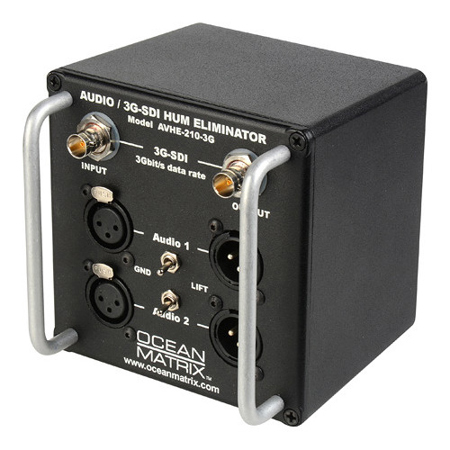

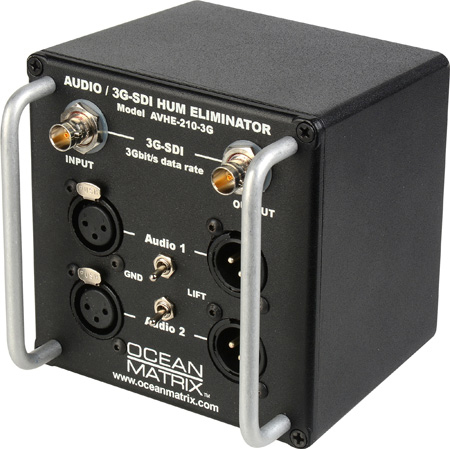

Although hum & noise is less common in SDI video signals, its presence and the looming "digital cliff" can mean an entire loss of signal to any critical playout or recording system. The Ocean Matrix AVHE-210-3G 1-Channel video & 2-Channel XLR audio hum eliminator produces a clean signal stripping it free noise, instability and potential jitter due to bit errors. With the addition of 2-channel XLR audio, the AVHE-210-3G is equally perfect for use with field cameras as well as for use in fixed studio wiring. The front panel houses a pin 1 ground lift switch, completely isolating recorder, amp or effects box from source audio equipment. These units are 3G, 1.5G, SDI and analog compatible and exceed the specifications for SMPTE 259M , 344M , 292M and ITU-R BT. Specifications: Impedance: 75 Ohms Bandwidth: 3 GHz Return Loss: 23 dB to 1 GHz, 19 dB to 3 GHz Hum Rejection: 20 V hum 3G, 1.5G, SDI and Analog Compatible Exceeds SMPTE 259M , 344M , 292M and ITU-R BT Specifications Dimensions (including handles) 4.75 x 4.75 x 4.5 Weight: 4 Lbs.
