Midnite Solar MNBCB 2000/200 - Inverter Supply

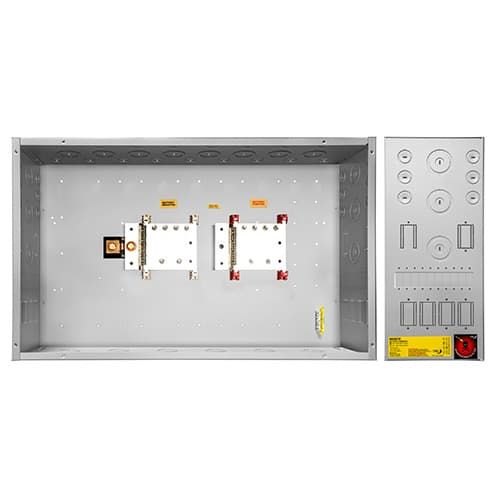

<p><b>PICTURED WITH OPTIONAL 3rd BUS BAR, 3rd BUS BAR NOT INCLUDED!</b></p> <p>MidNite Solar MNBCB 2000/200, 2000A Battery Combiner Box.</p> <p>The MidNite 2000amp battery combiner box includes a 2000amp Positive and Negative bus bar with 3/8 inch studs. Cables can be double lugged and the copper bus bar can be drilled for additional mounting locations. We recommend you use 3/8 inch stainless bolts if you drill holes to attach more ring terminals.</p> <ul> <li>2000amp 200mv Shunt with 1/2 inch bolt for customer connection</li> <li>Has locations for up to 12 of our MNEDC Battery Breakers</li> <li>Powder Coated Steel</li> <li>Useful for dual Radian inverters as well as for combining multiple strings of batteries.</li> <li>Max. AC Voltage - 277VAC</li> <li>Max. DC Voltage - 300VDC</li> <li>Max. Wire Size - 4/0</li> </ul><br> <p><b>Includes</b></p> <ul> <li>1000amp 50mv shunt available. See MNBCB-1000/50 (SMA uses 50mv shunt)</li> <li>2000amp Positive and Negative bus bar with 3/8 inch studs</li> </ul><br> <p><b>Specifications</b></p> <ul> <li>Size: 35-1/2" L x 22" W x 9-3/4" D</li> <li>Box Size: 42" L x 29" W x 18" D</li> <li>Weight: 70 lbs, Shipping Weight: 75 Lbs</li> <li>Type 1 environmental rating (indoor)</li> <li>Number of Spaces - 12</li> <li>Warranty - 5yrs</li> <li>Made in USA</li> </ul>
