Midnite Solar MNEPV20 :: 20 A 150VDC DIN RAIL MOUNT :: PLATT ELECTRIC SUPPLY
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Platt.com | 0028764 | 1 | 1 | ||
| rvpartssource.com | MS-MNEPV20 | 1 | 24 | 1 | 1 @ $17.31 |
| MS-MNEPV20 | 1 | 32 | 1 | 1 @ $17.31 | |
| 199122 | 1 | -2 | 1 | 1 @ $19.47 | |
| MNEPV20 | 1 | 51 | 1 | 1 @ $21.43 | |
| solarflexion.com | MNEPV20 | 1 | -2 | 1 | 1 @ $17.89 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

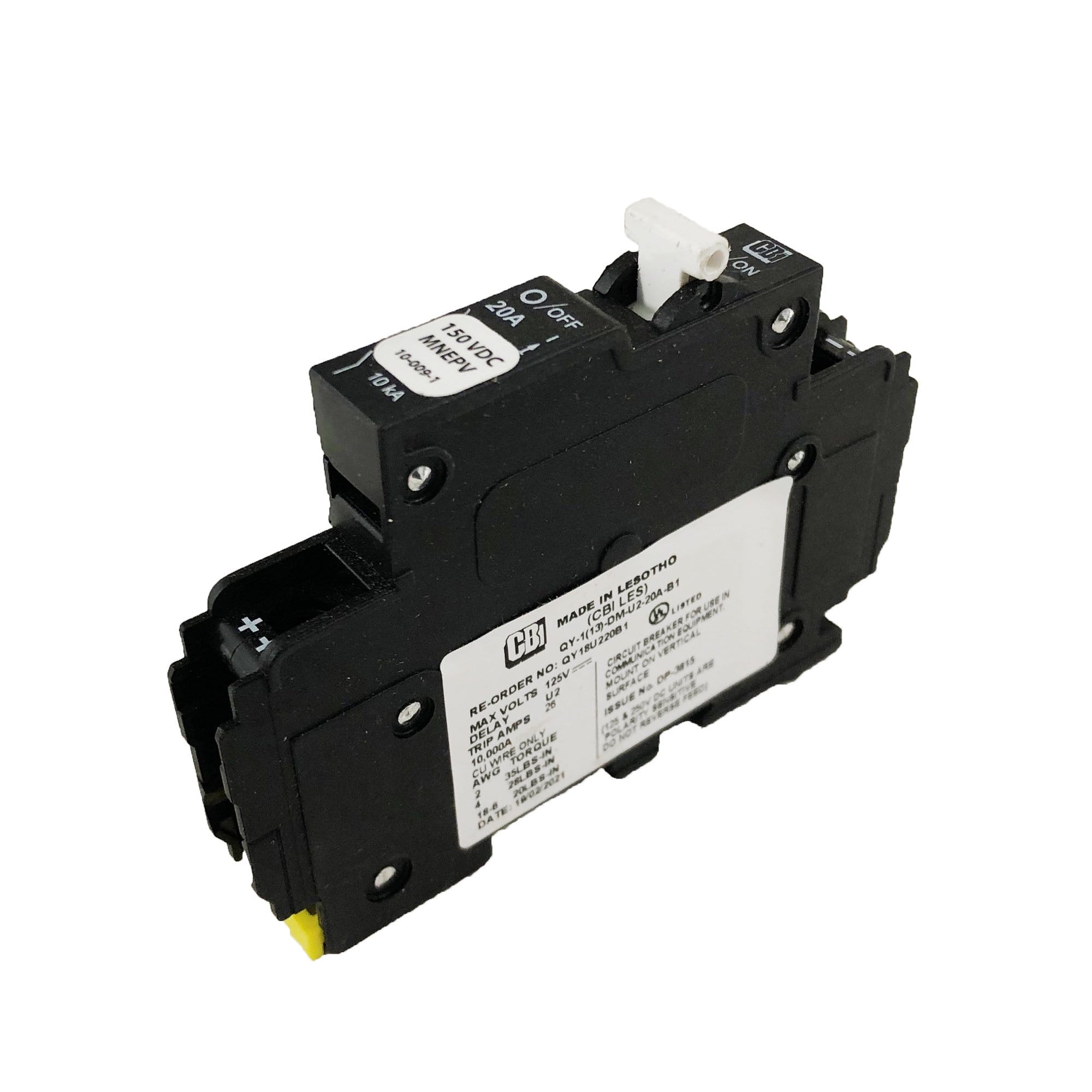

MidNite Solar Photovoltaic DC Circuit Breaker - 20 Amp, Model# MNEPV20
Brand: MidNite Solar
MidNite’s breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting. MNEPV breakers are the same as CBI QY breakers except the standard used is inadequate for the solar industry. MidNite breakers have been evaluated by ETL to 150VDC and are listed for US and Canada. All of the NRTL listings still apply. Breakers ordered under the CBI part numbering system will not be listed for 150VDC and in many cases are not suitable for the solar industry. All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.
Details
- Branch circuit rated 489A
- 150VDC din rail mount breaker (13mm wide)
- 150VDC ETL listed in the US and Canada
- 10,000 AIC | Polarized
- Breaker Torque Value: 20 In-Lbs (2.3NM)
Listing
| Binding | Lawn & Patio |
|---|---|
| Product group | Lawn & Patio |
| Product type | HARDWARE |
| Model | MNEPV20 |
| Part number | MNEPV-20 |
| Label | Midnite Solar |
| Manufacturer | Midnite Solar |
Analytics
| Category | tools |
|---|---|
| Case Qty | 1 units |
Din Rail Mount Combiner PV Breaker - 20 Amp, 150 VDC, | MNEPV20
Brand: MidNite Solar
<b>MidNite Solar MNEPV20 Circuit Breaker 150VDC 1-Pole</b> <p> MidNite;s breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting. All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure. <p> MNEPV breakers are the same as CBI QY breakers except the standard used is inadequate for the solar industry. MidNite breakers have been evaluated by ETL to 150VDC and are listed for US and Canada. All of the NRTL listings still apply. Breakers ordered under the CBI part numbering system will not be listed for 150VDC and in many cases are not suitable for the solar industry.
Details
- Branch circuit rated 489A
- 150VDC din rail mount breaker (13mm wide)
- 150VDC ETL listed in the US and Canada
- Breaker Torque Value: 20 In-Lbs (2.3NM)
- Polarized | 10,000 AIC
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Part number | MNEPV20 |
| Items per pack | 1 |
| Label | Midnite Solar |
| Manufacturer | Midnite Solar |
Analytics
| Case Qty | 1 units |
|---|
MNEPV 20A PV Breaker
Brand: MidNite Solar
FLEXware 250 AC Input-Output Bypass Assembly. Field installable kit with color coded wire, all required ring terminals and sliding interlock plate. Includes three 60A 120VAC single pole Panel mount breakers. Please Note: This does not include a Flexware enclosure. Outback PN: FW-IOB-S-120VAC
Listing
| Product group | BISS Basic |
|---|---|
| Product type | MECHANICAL_FASTENERS |
| Part number | MNEPV20 |
| Label | MidNite Solar |
| Manufacturer | MidNite Solar |
Analytics
| Case Qty | 1 units |
|---|
