40X-2000X 3MP Digital Integrated Microscope with LED Illumination + 3- – AmScope

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioOMAX
Extra Product Name40X-2000X 3MP Digital Integrated Microscope with LED Illumination + 3- – AmScope
moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
MPN, SKU, Keyword, Model, ModelNumber, Model_number, Mpns, PartNumber, Part_numberMD827S30L-PHD
qtyInStock-2
qtySourceFieldMap
snippetOMAX Digital Microscopes integrate advanced digital-imaging with precision optical-microscopy. Digital-integration promotes uniformity, and presents a simplified method for setting up and using microscopes. A simple USB connection allows you to view real-time images on your PC. The integrated camera can be used for mon
tierPrice1892.99
ASIN, AsinB00FG8C70C
AdultProduct, Autographed, Batteries_included, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount1489.00
Aspecttransportation_regulatory_class
BindingElectronics Misc.
Bullet_point5-year warranty against manufacturing defects Built-in digital camera: - Imaging device: 3.0 mega pixels, 1/2.5inch CMOS - Effective pixels: 2048x1536 - Maximum still image resolution: 2048x1536 pixels - Frame rate: 4 frames per second at 2048x1536, 10 frames per second at 1024x768 - Interface: USB2.0 ( 480MB/second) - SNR: >40dB - Software compatible with Windows XP/Vista/7/8/10, and Mac OS Condenser and diaphragm: Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm; Phase contrast condenser: NA1.25 (37mm mounting size) condenser, one centering telescopic eyepiece with three separated condenser annular plates for 10X, 40X, and 100X, each can be centered individually; Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal framework; Power supply: AC 100V-240V (US and Canada plug) Interpupillary distance: sliding adjustable 2-3/16inch-2-15/16inch (55mm-75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer size 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling digital binocular head
ClassificationId10824790011
Currency, CurrencyCodeUSD
DescriptionAchromatic
DisplayNameCompound Binocular Microscopes
Hazmat9
Height12.598425184 1200 15.354330693 39.0 47.0 500 75
Identifier0670541471722 0670541504505 670541471722 670541504505
IdentifierTypeEAN UPC
IsAutographed, IsMemorabiliafalse
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleOMAX 40X-2000X Built-in 3.0MP Digital Camera Phase Contrast Compound Microscope w Replaceable LED Light
Item_package_weight4.91
Item_type_keywordscience-lab-compound-binocular-microscopes
Item_weight0.01
Length20.0 27.952755877 7.87401574 7.874015740 71.0
Linkhttps://m.media-amazon.com/images/I/414tLAHHpNL._SL75_.jpg https://m.media-amazon.com/images/I/414tLAHHpNL.jpg https://m.media-amazon.com/images/I/41iblAUOcSL._SL75_.jpg https://m.media-amazon.com/images/I/41iblAUOcSL.jpg https://m.media-amazon.com/images/I/51IPO2AfFXL._SL75_.jpg https://m.media-amazon.com/images/I/51IPO2AfFXL.jpg https://m.media-amazon.com/images/I/51lwGPAM1XL._SL75_.jpg https://m.media-amazon.com/images/I/51lwGPAM1XL.jpg https://m.media-amazon.com/images/I/618HR6Zef2L.jpg https://m.media-amazon.com/images/I/61dx3vFqvlL.jpg https://m.media-amazon.com/images/I/61yaMSWjUcL.jpg https://m.media-amazon.com/images/I/71-othsBL-L.jpg
List_price1489.0
Magnification_maximum2000.0
Power_source_typeCorded Electric
ProductCategoryId10824790011 ce_display_on_website photo_display_on_website
ProductGroup, WebsiteDisplayGroupNamePhotography
ProductType, ProductTypeNameMICROSCOPES
Product_descriptionThe phase contrast digital compound LED microscope comes with phase contrast microscope system & brightfield microscope system, a built-in 3.0MP USB digital imaging system and a replaceable LED illumination. It offers eight levels of brightfield magnification from 40X to 2000X. The phase contrast kit includes a phase contrast NA1.25 condenser, a centering telescopic eyepiece, three achromatic phase contrast objectives with phase plate: 10X, 40X, 100X. The phase contrast biological microscope offers six levels of magnification: 100X-200X-400X-800X-1000X-2000X. The phase contrast microscope can improve the images of transparent and colorless objects, which are hard to see or invisible in an ordinary microscope.The USB digital imaging system captures still microscope images and live video on computer without the hassle of setting up the digital camera. The included software compatible with Windows XP/Vista/7/8/10 can also be used to make measurements. You can also view and capture the images on iMac or Macbook with Mac OS. This phase contrast compound microscopy is widely used clinical, biological research and schools, specially for observing live cells.
Product_site_launch_date2013-09-26T17:49:01.801Z
Rank1775983 178885 425
Real_angle_of_view45.0
StrippedMpnsMD827S30LPHD
Supplier_declared_dg_hz_regulationunknown
TypeLED ean upc
URLhttp://ecx.images-amazon.com/images/I/414tLAHHpNL._SL75_.jpg https://m.media-amazon.com/images/I/414tLAHHpNL._SL75_.jpg
Unitcentimeters degrees inches kilograms multiplier_x ounces pounds volts
Unitsinches pixels pounds
VariantMAIN PT01 PT02 PT03
Voltage240.0
WebsiteDisplayGroupphoto_display_on_website
Weight0.000625 10.8246970642 18.00
Width10.236220462 1200 18.503936989 26.0 32.0 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
amscope.comMD827S30L-PHD1-211 @ $892.99

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

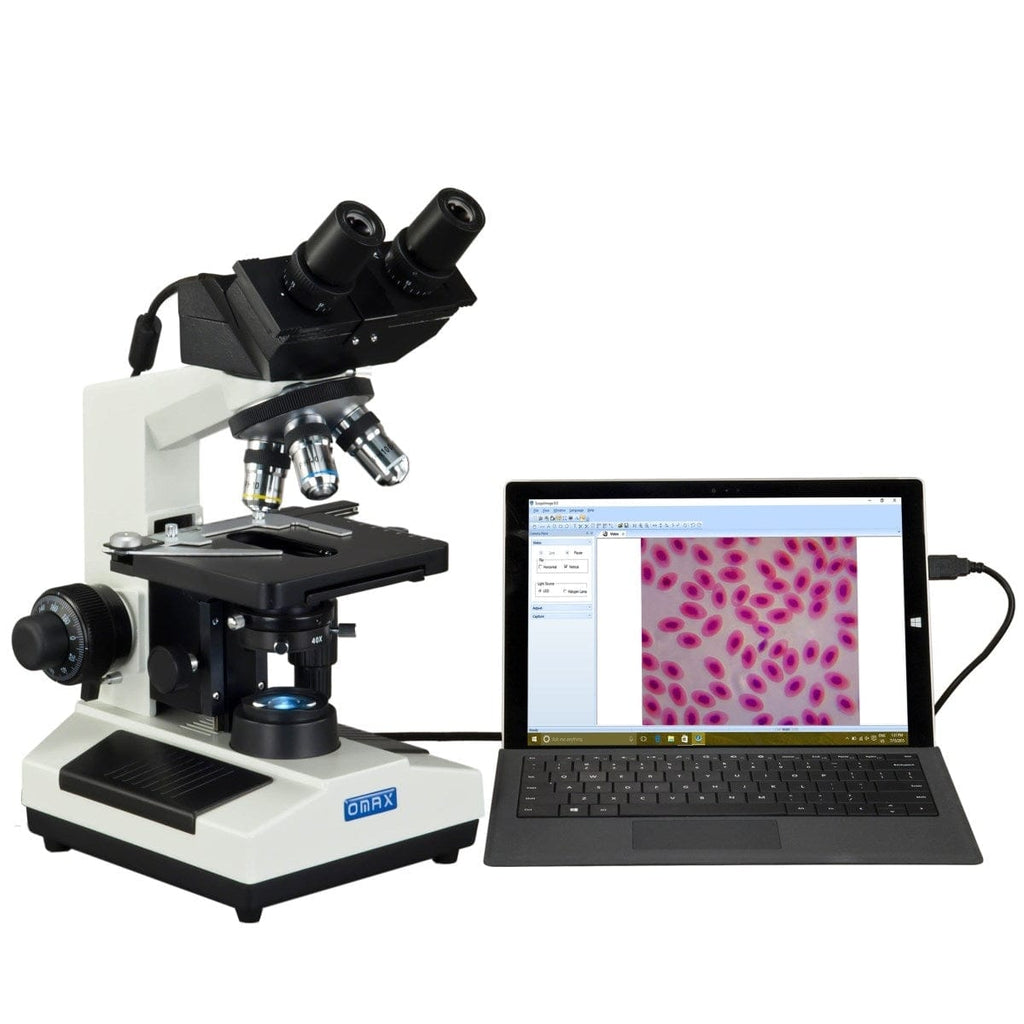

OMAX 40X-2000X Built-in 3.0MP Digital Camera Phase Contrast Compound Microscope w Replaceable LED Light
Brand: OMAX
The phase contrast digital compound LED microscope comes with phase contrast microscope system & brightfield microscope system, a built-in 3.0MP USB digital imaging system and a replaceable LED illumination. It offers eight levels of brightfield magnification from 40X to 2000X. The phase contrast kit includes a phase contrast NA1.25 condenser, a centering telescopic eyepiece, three achromatic phase contrast objectives with phase plate: 10X, 40X, 100X. The phase contrast biological microscope offers six levels of magnification: 100X-200X-400X-800X-1000X-2000X. The phase contrast microscope can improve the images of transparent and colorless objects, which are hard to see or invisible in an ordinary microscope.The USB digital imaging system captures still microscope images and live video on computer without the hassle of setting up the digital camera. The included software compatible with Windows XP/Vista/7/8/10 can also be used to make measurements. You can also view and capture the images on iMac or Macbook with Mac OS. This phase contrast compound microscopy is widely used clinical, biological research and schools, specially for observing live cells.
Details
  • Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling digital binocular head
  • Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling digital binocular head
  • Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling digital binocular head
  • Interpupillary distance: sliding adjustable 2-3/16inch-2-15/16inch (55mm-75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer size 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation
  • Condenser and diaphragm: Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm; Phase contrast condenser: NA1.25 (37mm mounting size) condenser, one centering telescopic eyepiece with three separated condenser annular plates for 10X, 40X, and 100X, each can be centered individually; Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal framework; Power supply: AC 100V-240V (US and Canada plug)
  • Built-in digital camera: - Imaging device: 3.0 mega pixels, 1/2.5inch CMOS - Effective pixels: 2048x1536 - Maximum still image resolution: 2048x1536 pixels - Frame rate: 4 frames per second at 2048x1536, 10 frames per second at 1024x768 - Interface: USB2.0 ( 480MB/second) - SNR: >40dB - Software compatible with Windows XP/Vista/7/8/10, and Mac OS
  • 5-year warranty against manufacturing defects
Listing
BindingElectronics
Product groupPhotography
Product typeMICROSCOPES
ModelMD827S30L-PHD
Part numberMD827S30L-PHD
Items per pack1
LabelOMAX
ManufacturerOMAX
