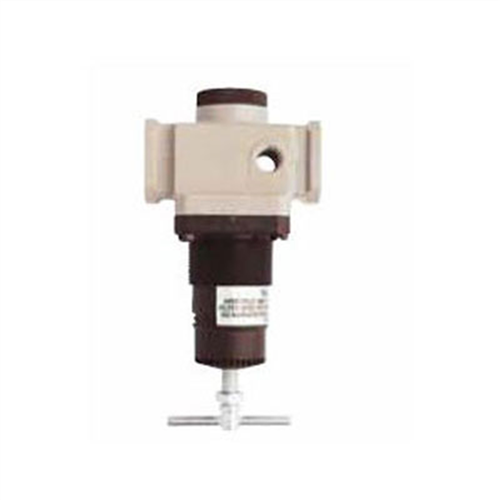

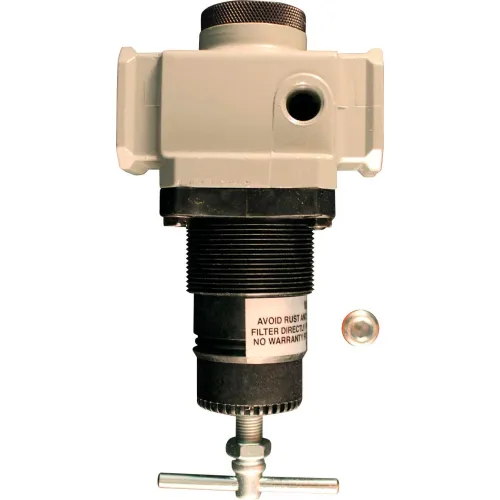

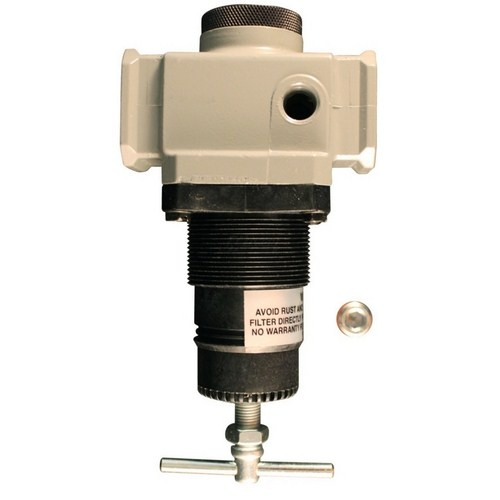

Midsize FRL Regulator,1" NPT

The Milton mid-size RELIEVING TYPE regulators offer stable downstream air pressure over a wide range of air flows with accurate control, fast response and minimal pressure drop. Offset 1/4” gage ports can also serve as two 1/4” supply lines, allowing up to three regulated full flow out ports. Gage not included, but available as an accessory.  Inlet pressure: 250 PSI Operating temperature: 40° F to 120° F Aluminum die-cast body Buna-N diaphragm and O rings Balanced piston, molded rubber seat Warning: Regulators should always be preceded by a filter to eliminate damage to the unit or inaccurate air flow. 1" Midsize NPT 250 Max SCFM

This 1" NPT midsize regulator is the relieving type, offering stable downstream air pressure over a wide range of air flows for accurate control, fast response and minimal pressure drop. Offset gage ports can also serve as two 1/4" NPT supply lines. Made up of an aluminum die cast body, balanced piston and molded rubber set, this regulator should be proceeded by a filter to eliminate damage. Maximum of 250 PSI and 250 SCFM. Features 1" national pipe thread Maximum inlet pressure of 250 pounds per square inch Maximum of 250 standard cubic feet per minute at 100 pounds per square inch Operating temperature range of 40 degrees Fahrenheit to 120 degrees Fahrenheit Buna-N diaphragm
