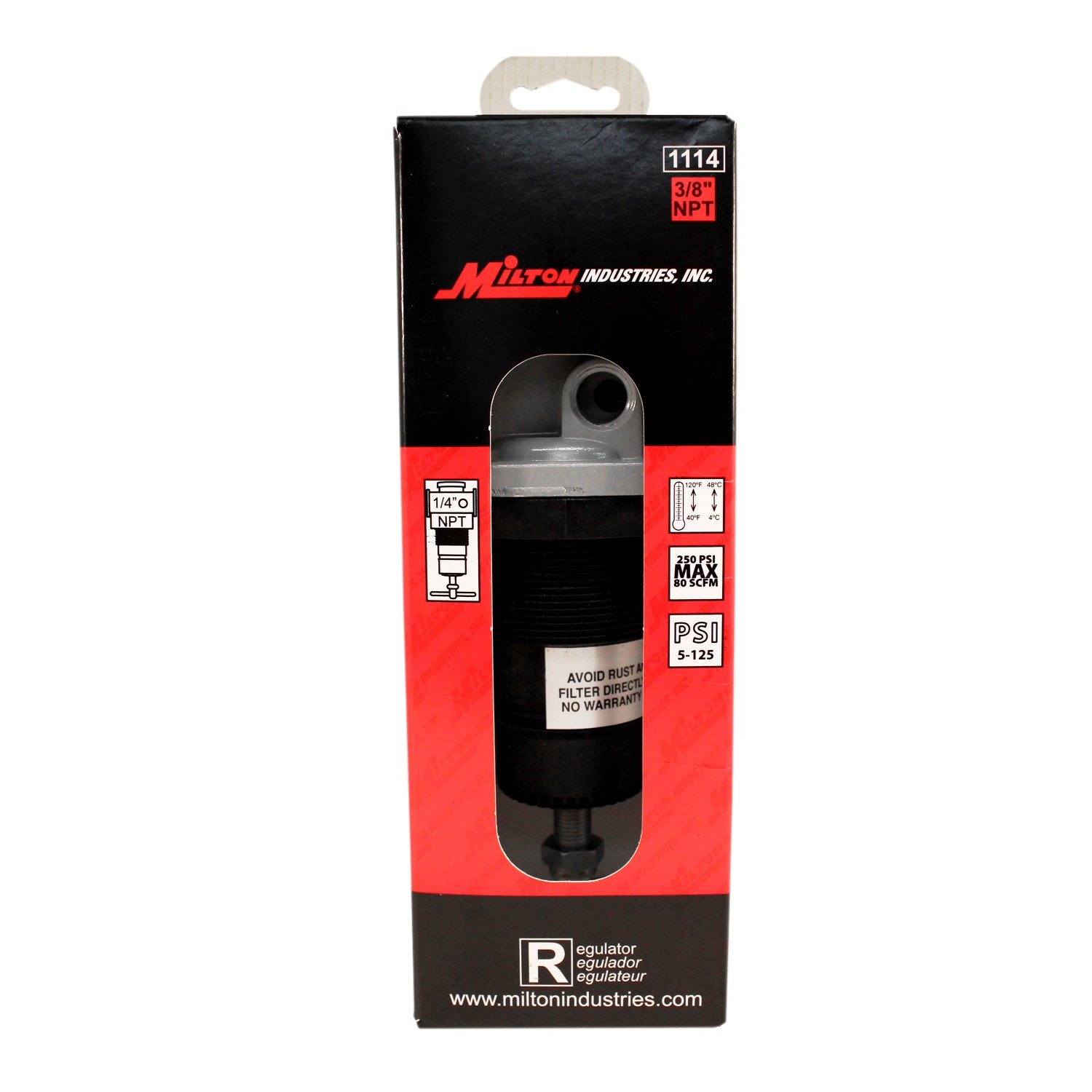

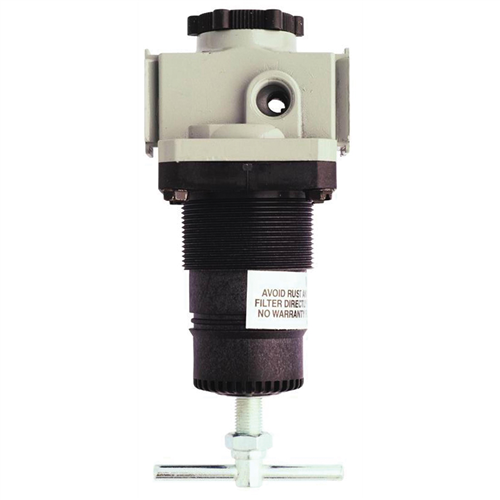

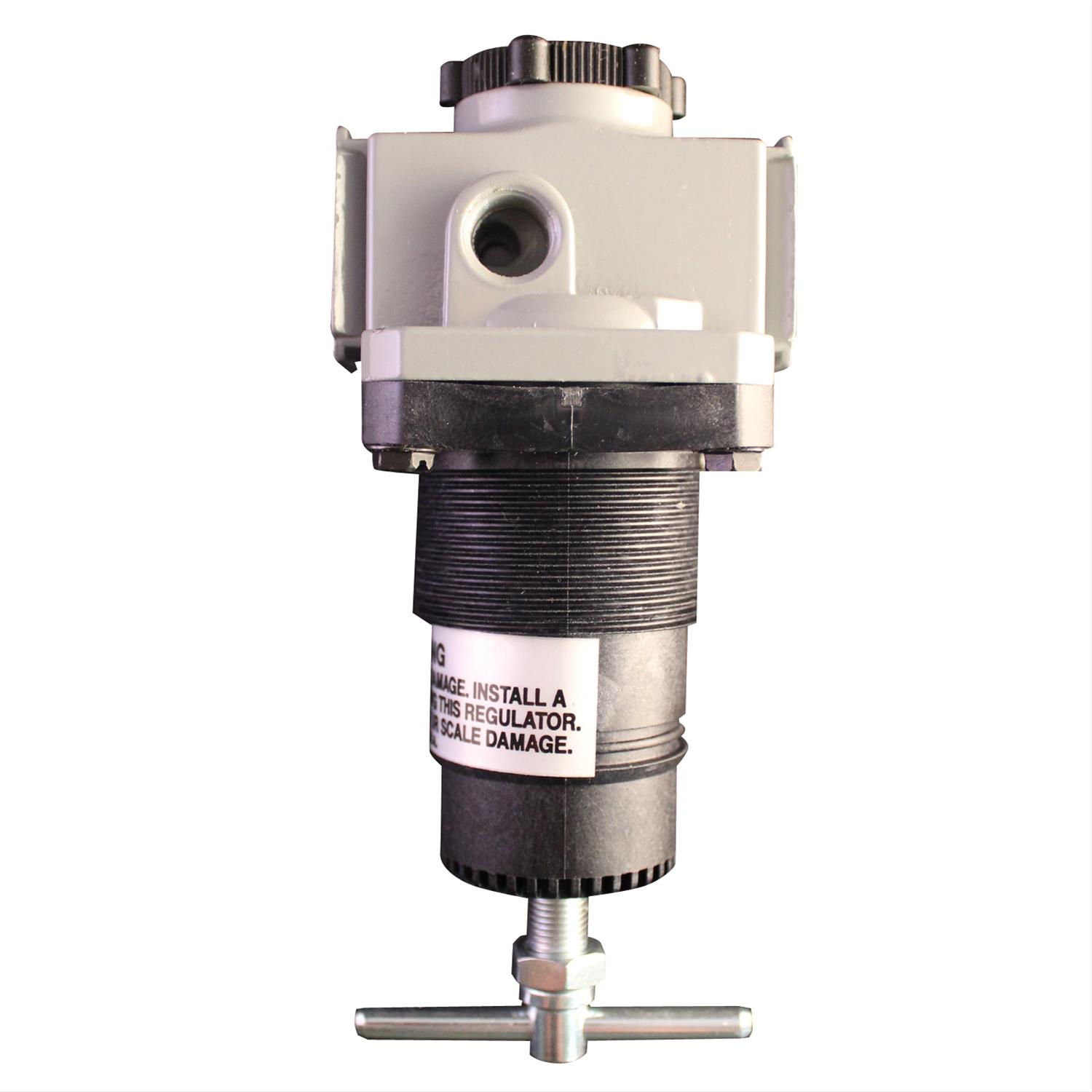

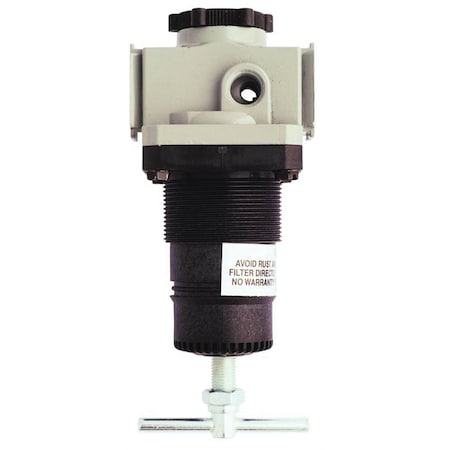

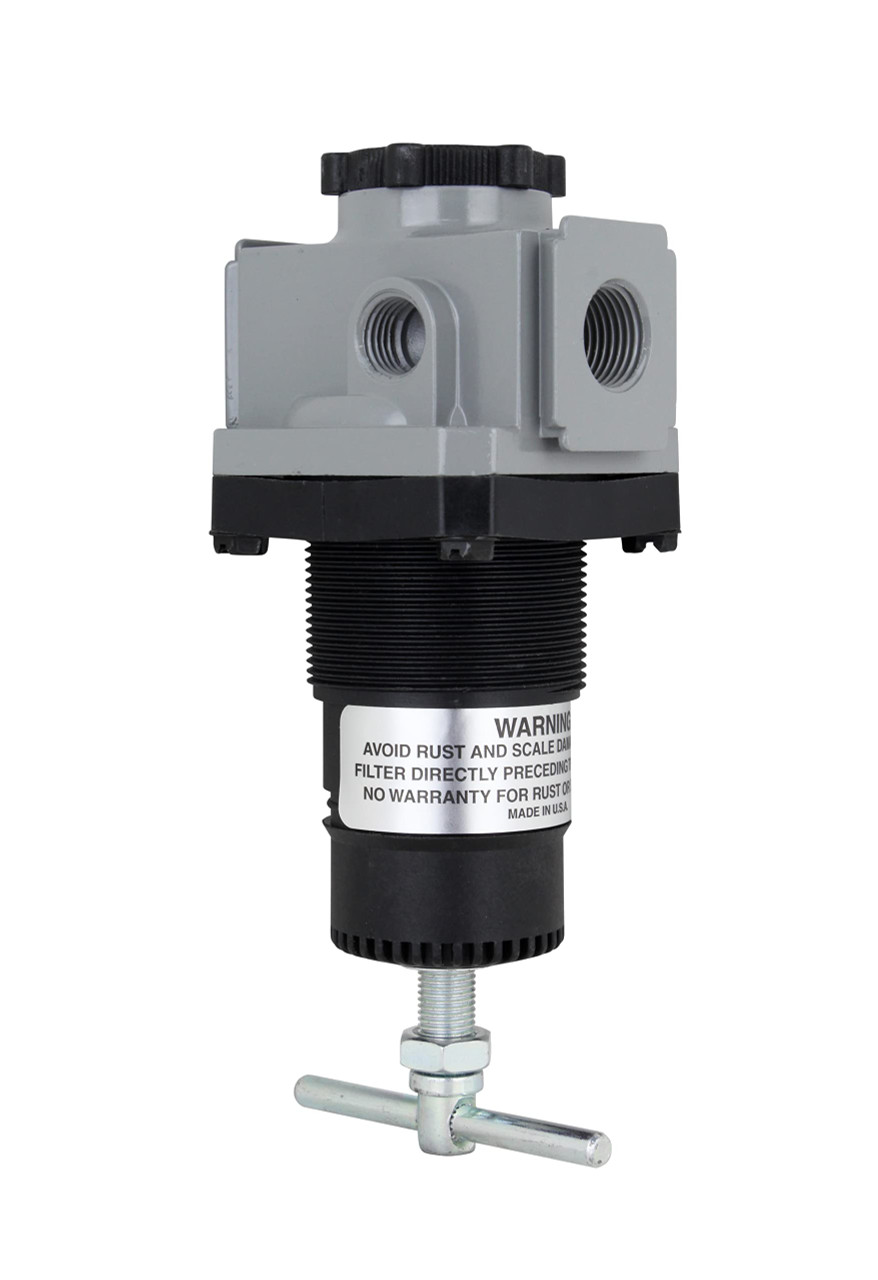

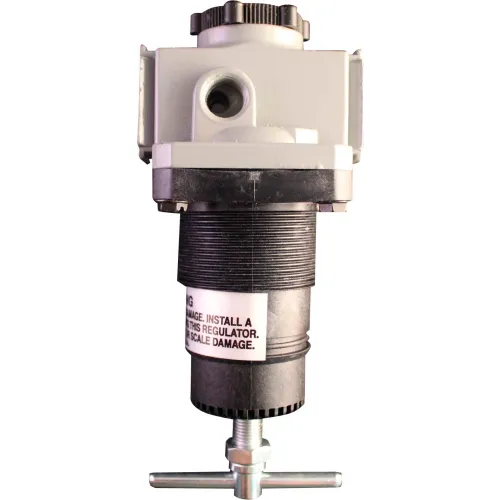

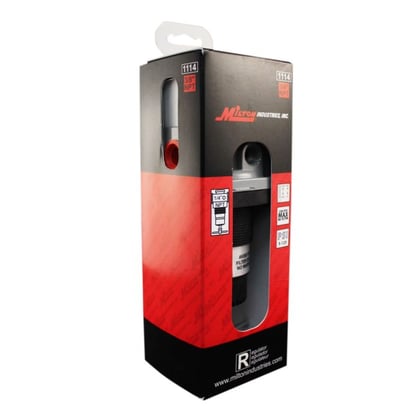

Air Regulator,3/8 In. NPT, Overall Width 3 1/2 in, Body Material Die Cast Aluminum

The Milton heavy duty RELIEVING TYPE regulatorsoffer stable downstream air pressure over a wide range of air flows with accurate control, fast response and minimal pressure drop. Offset 1/4" gage ports can also serve as two 1/4" supplylines, allowing up to three regulated full flow out ports. Gage not included, but available as an accessory.&#149 Inlet pressure: 250 PSI&#149 Operating temperature: 40&deg F to 120&deg F&#149 Aluminum die-cast body&#149 Buna-N diaphragm and O rings&#149 Balanced piston, molded rubber seat&#149 3/8" NPT&#149 Max SCFM: 80

Features and BenefitsMid size relieving type regulators offer wide range of airflow, accurate control, fast response and minimum pressure drop. Gauge not included but available as an option. Max pressure: 150 PSI, Max SCFM: 80

3/8" NPT mid-size regulator is the relieving type which offers stable downstream air pressure over a wide range of air flows with accurate control, fast response and minimal pressure drop. Regulators should always be preceded by a filter to eliminate damage to the unit or inaccurate air flow. The aluminum die cast body comes with a balanced piston, molded rubber seat, Buna-N diaphragm and O rings. This regulator also has two offset 1/4" gage ports which can serve as two 1/4" supply lines. Offers a maximum inlet pressure of 250 PSI and 80 SCFM. 3/8" national pipe thread Maximum of 80 standard cubic feet per minute at 100 pounds per square inch Operating temperature range of 40 degrees Fahrenheit to 120 degrees Fahrenheit
