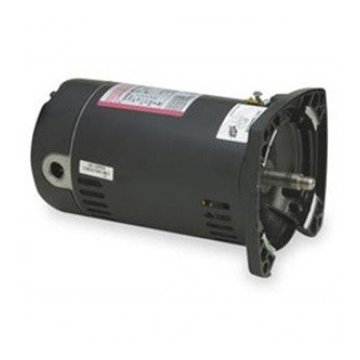

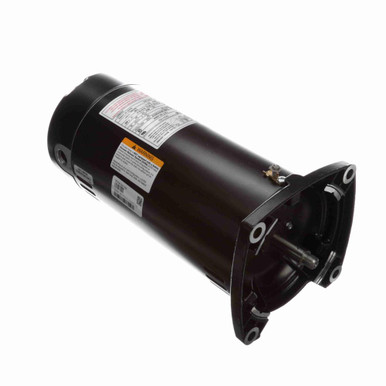

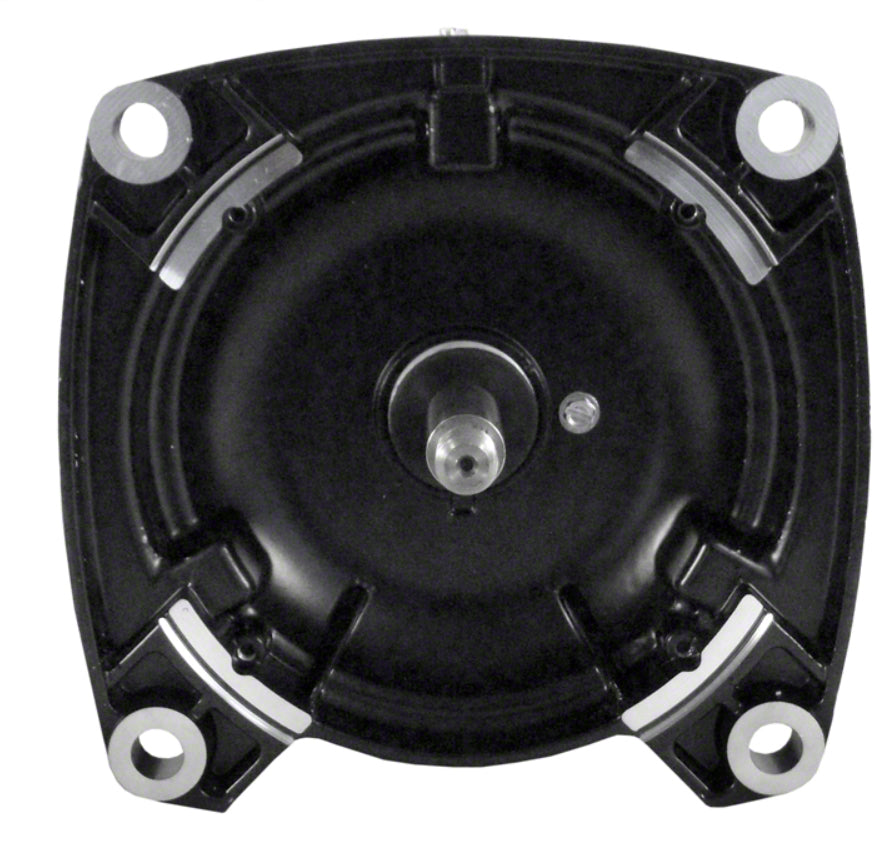

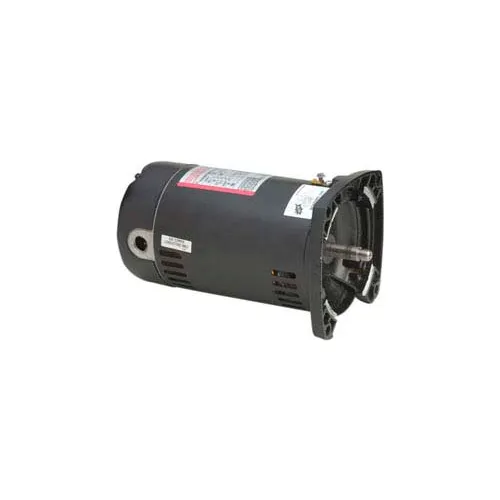

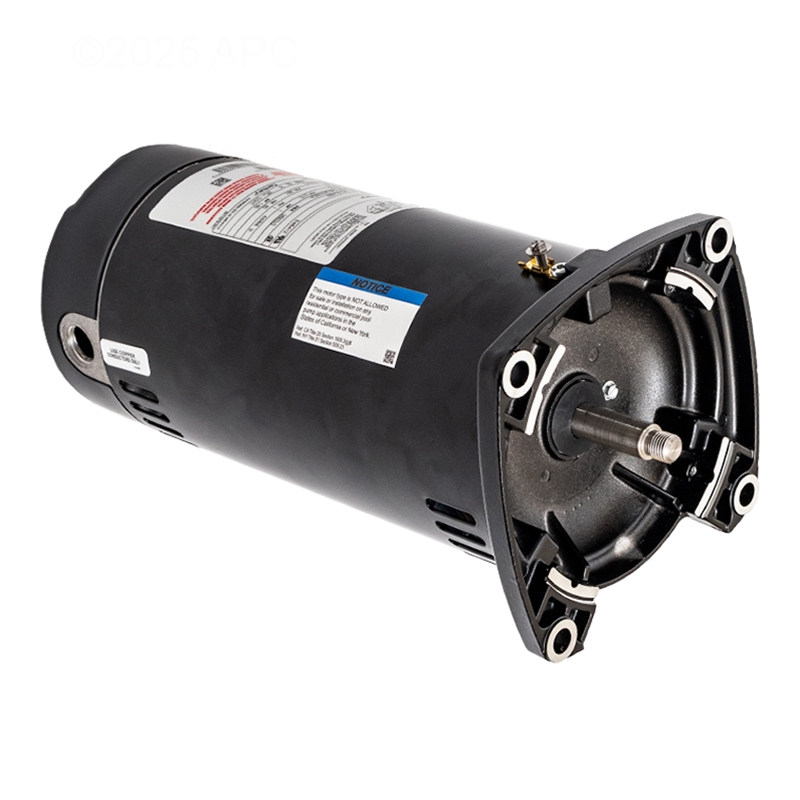

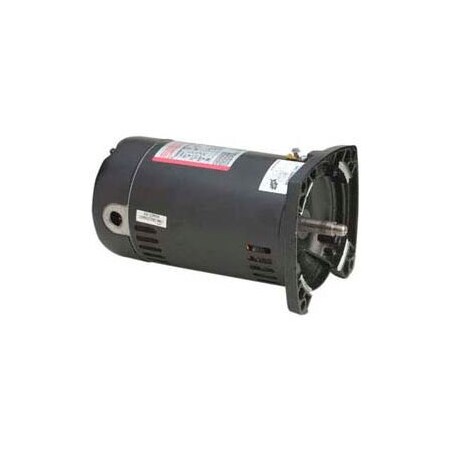

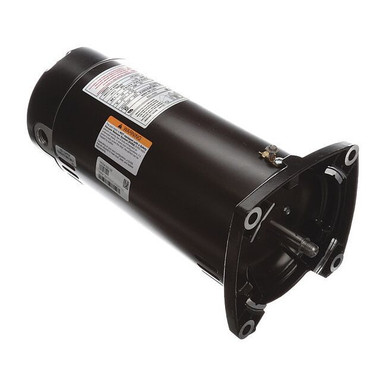

A.O. Smith SQ1102 1 HP, 3450 RPM, 1.65 Service Factor, 48Y Frame, Capacitor Start, ODP Enclosure, Square Flange Pool ...

Bring in this flanged motor to ensure proper maintenance for your swimming pool or spa pumps. Promising a full-rated service, it has a 1.65 SF that supports the 1HP. You get to witness a good airflow avoiding all the unwanted moisture. Product Features:. Sealed switch design pump motor is used has in ground swimming pool pumps. Used on many popular OEM pumps. Motor has automatic thermal protection and open drip proof. Its sealed ball bearings promise a long-lasting lifespan. Stainless steel shaft for corrosion protection. Class B insulation prevents meltdowns and overheating Additional Features:. Horsepower: 1 HP. Output: 0.75 kW. Frequency: 60 Hz. Voltage: 230-115 V. Current: 9.0-18.0 A. Speed: 3450 RPM. Service Factor: 1.65 HP. Phase: 1. Duty: continuous. Thermal Protection: thermally protected. Enclosure: drip proof. Ambient Temperature: 50 °C. Electrical Type: cap start motor. Rotation: counterclockwise pump end. Mounting: square flange. Drive End Bearing: ball. Motor Orientation: horizontal. Opp Drive End Bearing: ball. Frame Material: rolled Steel. Shaft Type: threaded. Overall Length: 13.82". Frame Length: 9.94". Shaft Diameter: 0.625". Shaft Extension: 0.906" Material(s): stainless steel

It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT. 1 HP - Full Rated 115 / 230 Volts 19.2/9.6 amps Service Factor: 1.65 48Y Frame 48Y motor body diameter is 1/2" smaller than 56Y Square Flange (Face) 5/8" Threaded Shaft All copper windings Automatic thermal protection Stainless steel threaded shaft Double sealed ball bearings Replaces Pentair part numbers WF-4, WF-24, 075234, 075234S, 355022S Cross Reference: A100EHL, C48A22A24, C48B03B67, C48K2P104A1, C48L2EA11, C48L2EA11A1, C48L2EA11A2, C48L2EA11A3, C48L2EA12, C48L2EB101, C48L2EB101A1, C48L2EB101A2, C48L2EB11, C48L2EB11A3, C48L2EB12, C48L2EC11, C48L2EC11A4, C48L2EC15, C48L2ED11, C48L2P100, C48L2P102, C48L2P103A1, C48L2PA103, C48L2PA103A2, C48L2PA105, C48L2PA105A6, C48L2PN100, C48L2PU101, C56L2B11, C56L2B17, C56L2B23, C56L2B28, C56L2E100, C56L2E11, C56L2E11A1, C56L2E11A2, C56L2E11C1, C56L2E11C2, C56L2E12, C56L2P100, C56L2S11, MTR263, SQ1102, 168453, B746, B848, B883, B946, C1171, C1306, EB848, 12504, 125042, 7-168453-23, 7-168453-24, 8-168453-23, 8-168453-20, 8-168453-24, 5KC39UN2522X, 355023S, ESQ1102, WF-4, WF-24, 075234, 075234S, 355022S When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.

Ao Smith Corp Sq1102,Sqaure Flange Pump Motor, Capacitor-Start,1 Hp,Volts: 115/230,Rpm: 3450,Hertz: 60,Frame: 48Y,Protector: Automatic,Shaft: Threaded,Bearings: Ball,Phase 1,
