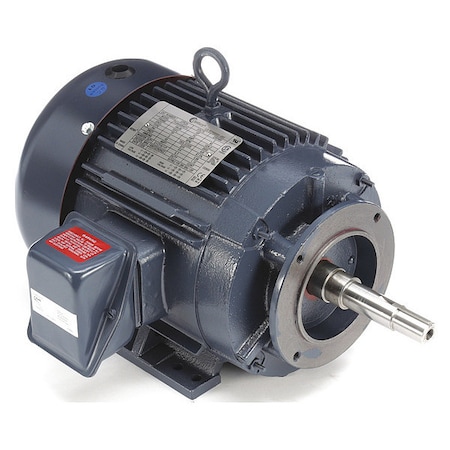

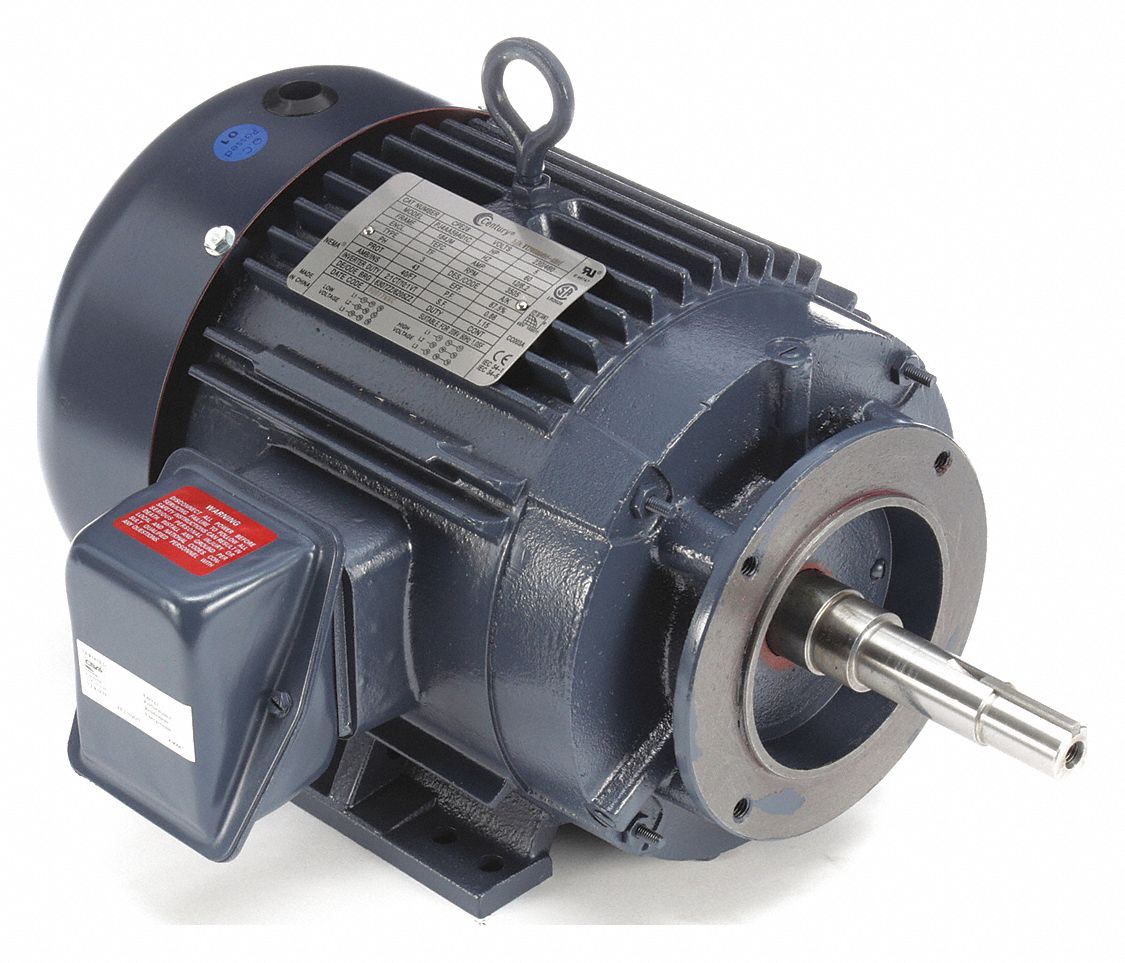

CC Pump Motor, 3-Ph, TEFC, 5HP, 184JM

Century . CPE28

Gallery

Attributes

Brand name, Manufacturer nameCentury
ManufacturerCentury A.O. Smith CENTURY
Attribute00Close-Coupled Pump Motor
Attribute013-Phase
Attribute025
Attribute033001-3600
Attribute043505
Attribute05, Voltage208-230/460
Attribute06184JM
Attribute07Face/Base
Attribute081.15
Attribute0940 Degrees C
Attribute10Pump
Attribute11208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460
Attribute12, Attribute23Cast Iron
Attribute1314.0-12.0/6.2
Attribute14Yes
Attribute15None
Attribute1614-1/4"
Attribute1760
Attribute18Continuous
Attribute19Ball
Attribute20CW/CCW
Attribute21UL Recognized (E49747), CSA Certified (LR2025)
Attribute22F
Attribute24Totally Enclosed Fan-Cooled
Attribute254-1/4"
Attribute263
Attribute2718-1/2"
Attribute28JM Threaded
Attribute291"
Attribute30Energy Efficient
Attribute31CC003A
Attribute3289.5%
Attribute33Close-Coupled Pump
Attribute34External Slinger
Attribute35, countryOfOriginChina
AttributeKey00Item
AttributeKey01Motor Design
AttributeKey02HP
AttributeKey03RPM Range
AttributeKey04Nameplate RPM
AttributeKey05Voltage
AttributeKey06Frame
AttributeKey07Motor Mounting Type
AttributeKey08Motor Service Factor
AttributeKey09Max. Ambient Temp.
AttributeKey10Motor Application
AttributeKey11Voltage Compatibility
AttributeKey12Motor Frame Material
AttributeKey13Full Load Amps
AttributeKey14Inverter Rated
AttributeKey15Motor Thermal Protection
AttributeKey16Length Less Shaft
AttributeKey17Hz
AttributeKey18Duty
AttributeKey19Motor Bearings
AttributeKey20Motor Shaft Rotation
AttributeKey21Standards
AttributeKey22Ins. Class
AttributeKey23Frame Material
AttributeKey24Motor Enclosure Design
AttributeKey25Shaft Length
AttributeKey26Phase
AttributeKey27, length_AttribOverall Length
AttributeKey28Motor Shaft Design
AttributeKey29, height_Attrib, width_AttribShaft Dia.
AttributeKey30Motor Efficiency Group
AttributeKey31CC Number
AttributeKey32Nominal Efficiency
AttributeKey33Motor Sub Application
AttributeKey34Includes
AttributeKey35Country of Origin (subject to change)
DimensionUnitinch
GraingerSku29NZ24
Extra Product Name, ItemName, Item_nameCC Pump Motor, 3-Ph, TEFC, 5HP, 184JM
WeightUnitlbs
diameter, height, width1.0
extendedLead, moq, multiple, tierMinQty1, Case, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
length18.5
MPN, Part Number, Keyword, PartNumber, Part_numberCPE28
qtyInStock0
SKUG5742396
tierPrice1503.99
urlhttps://www.zoro.com/century-cc-pump-motor-3-ph-tefc-5hp-184jm-cpe28/i/G5742396/
Product GroupBISS
ASINB076F9VDCX
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
AsinB01KSG78MS B076F9VDCX
BrandA. O. Smith Century
Bullet_point<b>Full Load Amps</b>: 14.0-12.0/6.2 <b>Frame</b>: 184JM <b>Frame Material</b>: Cast Iron <b>Inverter Rated</b>: Yes <b>Voltage</b>: 208-230/460 <b>Includes</b>: External Slinger <b>Country of Origin (subject to change)</b>: China <b>Price For:</b> Each <b>Item</b>: Close-Coupled Pump Motor <b>Motor Shaft Rotation</b>: CW/CCW <b>Motor Service Factor</b>: 1.15 <b>Duty</b>: Continuous <b>Motor Design</b>: 3-Phase <b>Hz</b>: 60 <b>Motor Application</b>: Pump <b>Motor Bearings</b>: Ball <b>Max. Ambient Temp.</b>: 40 Degrees C <b>Motor Thermal Protection</b>: None <b>Motor Sub Application</b>: Close-Coupled Pump <b>Phase</b>: 3 <b>Motor Enclosure Design</b>: Totally Enclosed Fan-Cooled <b>Voltage Compatibility</b>: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460 <b>Shaft Dia.</b>: 1" <b>Standards</b>: UL Recognized (E49747), CSA Certified (LR2025) <b>Shaft Length</b>: 4-1/4" <b>Overall Length</b>: 18-1/2" <b>Ins. Class</b>: F <b>Nominal Efficiency</b>: 87.5% <b>Motor Shaft Design</b>: JM Threaded <b>Nameplate RPM</b>: 3505 <b>Motor Mounting Type</b>: Rigid Base <b>HP</b>: 5 <b>Length Less Shaft</b>: 14-1/4"
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 306506011 306528011
ClassificationId306506011
DisplayNameIndustrial Electrical
Feature<b>Price For:</b> Each <b>Item</b>: Close-Coupled Pump Motor <b>Motor Shaft Rotation</b>: CW/CCW <b>Motor Service Factor</b>: 1.15 <b>Duty</b>: Continuous <b>Motor Design</b>: 3-Phase <b>Hz</b>: 60 <b>Motor Application</b>: Pump <b>Motor Bearings</b>: Ball <b>Max. Ambient Temp.</b>: 40 Degrees C <b>Motor Thermal Protection</b>: None <b>Motor Sub Application</b>: Close-Coupled Pump <b>Phase</b>: 3 <b>Motor Enclosure Design</b>: Totally Enclosed Fan-Cooled Technical Specification Item Close-Coupled Pump Motor Motor Application Pump Motor Sub
Height409 61 921
ItemClassificationBASE_PRODUCT
Item_type_keywordelectronic-components
Item_weight0.01
Label, Man, Publisher, StudioA.O. Smith CENTURY
Linkhttps://m.media-amazon.com/images/I/41JkIulEvgL._SL75_.jpg https://m.media-amazon.com/images/I/41JkIulEvgL.jpg https://m.media-amazon.com/images/I/6139u0sgAwL.jpg
ProductGroupBISS BISS Basic
ProductTypeELECTRONIC_COMPONENT
ProductTypeNameELECTRONIC_COMPONENT MECHANICAL_COMPONENTS
Product_description'Close-Coupled Pump Motor, 3-Phase, 5 HP, Nameplate RPM 3505, Voltage 208-230/460, 3 Phase, Frame 184JM, Totally Enclosed Fan-Cooled, Full Load Amps 14.0-12.0/6.2, 60 Hz, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 18-1/2 In., Shaft Dia. 1 In. Stepped Down to 7/8 In., Shaft Length 4-1/4 In., Frame Material Cast Iron'
Product_site_launch_date2016-09-18T00:49:10.297Z
Supplier_declared_dg_hz_regulationunknown
TitleA.O. Smith - CPE28 - 5 HP Close-Coupled Pump Motor, 3-Phase, 3505 Nameplate RPM, 208-230/460 Voltage, 184JM CC Pump Motor, 3-Ph, TEFC, 5HP, 184JM
URLhttp://ecx.images-amazon.com/images/I/41JkIulEvgL._SL75_.jpg https://m.media-amazon.com/images/I/41JkIulEvgL._SL75_.jpg
Unitounces pounds
Unitspixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Weight0.000625 106.00
Width1125 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG5742396111 @ $503.99
Grainger29NZ2411
emotorpro.comCPE281-211 @ $578.36
patrickssupply.comCPE28111 @ $495.00
