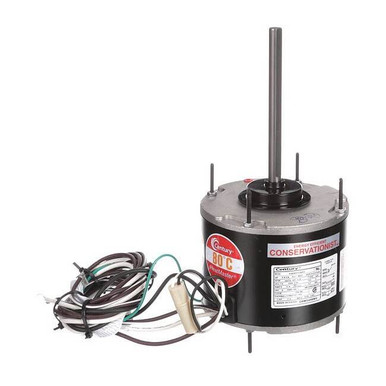

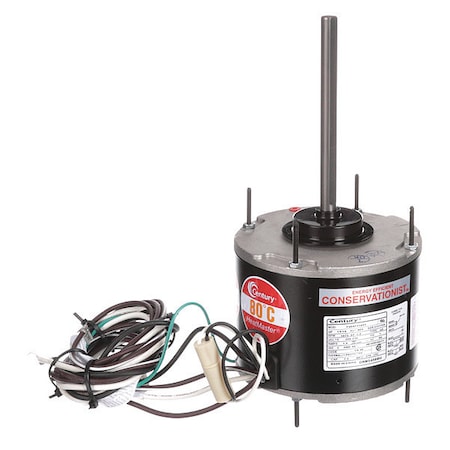

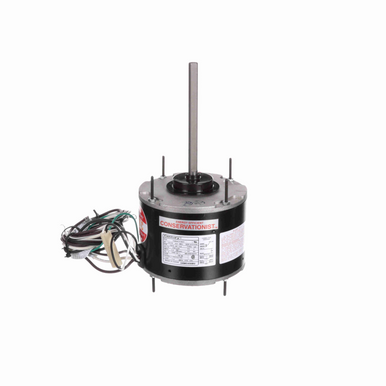

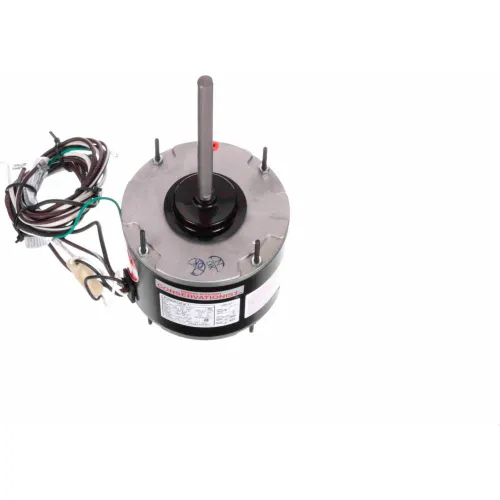

'Condenser Fan Motor,Motor Design Permanent Split Capacitor,Motor Enclosure Design Totally Enclosed Air-Over,1/3 to 1/6 HP,RPM Range 1001-1100,Nameplate RPM 1075,Voltage 208-230,48 Frame,Number of Speeds 1,Overall Length 10-5/8 In.,Shaft Length 6-1/2 In.,Shaft Orientation All Angle,Features Extended Thru-Bolts,Motor Shaft Rotation CW/CCW,Full Load Amps 1.9,Stud Motor Mounting Type,Thermal Protection Auto,Insulation Class F,Service Factor 1.0,Bearings Ball'

80°C ambient UL and CSA approved Class F insulation achieves superior dielectric strength for long life, energy efficient, PSC, single-speed thermal, TEAO double-sealed ball bearings with high-temperature waterproof synthetic grease Plug 48" color coded high temperature leads reverse for easy identification and installation by belly band, extended thru-bolts, adjustable brackets or Rheem/Trane mounting brackets, with screws included.. Diameter: 5-5/8"; HP: 1/3 – 1/6; V: 208-230; rpm: 1075; speeds: 1; F/L/H): 1.9; efficiency: 65.0%; Shaft Diameter: .: 1/2"; Shaft Length: 6-1/2"; rot.: rev.; A: 4.11"; Bearing Type: DBL-SLD Ball; Wt. lbs.: 11.8; Capacitor to Match: G21-933. For use with Pressure Head/Speed Controls. Automatic Thermal Protection | Three-year warranty |UL and CSA approved Class F insulation achieves excellent dielectric strength for long thermal life |Double sealed ball bearings with high-temperature synthetic grease |Water-resistant leads Plug |48" high-temperature keyed for easy Reversing ID and Installation |Mounts by adjustable belly band, extended thru-bolts, or Rheem/Trane mounting holes with included bolts.
