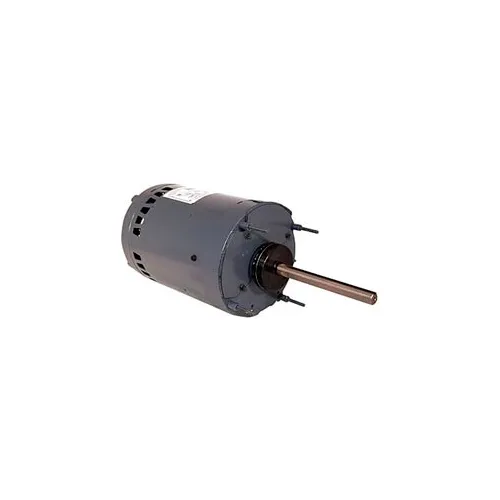

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 850, No. of Speeds 1, Voltage 200-230/460V AC, 3.5-3.4/1.70 Full Load Amps, 56Y Frame, Output Watts 370 W, 60 Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Cradle Base, Motor Frame Material Steel
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G0584875 | 1 | 1 | 1 | 1 @ $446.99 |
| Grainger | 4MA25 | 1 | 1 | ||
 Global Industrial | WBB245046 | 1 | -2 | 1 | 1 @ $572.00 |
| SupplyHouse | C512V1 | 1 | 1 | ||
| AD8TLJ | 1 | 1 | 1 @ $731.28 | ||
 MRO Supply | 5918210 | 1 | 1 | 1 @ $447.15 | |
| B0026XPM7A | 1 | 1 | |||
| Amazon | B000LE9HPE | 1 | 1 | 1 @ $362.82 | |
| C512V1 | 1 | 1 | 1 @ $476.96 | ||
 National Supply Network | B245046 | 1 | -2 | 1 | 1 @ $564.39 |
| sustainablesupply.com | C1561089 | 1 | 1 | 1 @ $573.23 | |
| C512V1 | 1 | -2 | 1 | 1 @ $533.44 | |
| uri.com | C512V1 | 1 | -2 | 1 | 1 @ $1319.80 |
 simsupply.com | CU-344D413235 | 1 | 8 | 1 | 1 @ $391.59 |
 midwestapplianceparts.com | C512V1-AO-P | 1 | 1 | 1 @ $574.82 | |
| midwestapplianceparts.com | C512V1 -AO-P | 1 | 1 | ||
 Dreisilker | CE-RBC-C512V1 | 1 | -2 | 1 | 1 @ $550.34 |
| Square One | C512V1 | 1 | 1 | ||
 simsupply.com | ZO-G0584875 | 1 | 5 | 1 | 1 @ $543.82 |
| C512V1 | 1 | -2 | 1 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
A.O. Smith C512V1 1/2 HP 460/200-230 Volt 850 RPM Condenser Fan Motor C512V1
Brand: A. O. Smith
Auto ProtectorClass B Moisture-Resistant InsulationDouble Sealed Ball BearingPermanent Split CapacitorPositioning Lugs for easy Belly-Band MountingQuick-Connect DesignReversibleService Factor 1.060 Degrees C Ambient
Listing
| Product group | Home Improvement |
|---|---|
| Product type | ELECTRIC_MOTOR |
| Part number | C512V1 |
| Label | A.O. Smith |
| Manufacturer | A.O. Smith |
Catalog
| Category | Tools & Home Improvement |
|---|---|
| MPN | C512V1 |
| Product group | Home Improvement |
| Product type | HOME_LIGHTING_ACCESSORY |
| Manufacturer | A.O. Smith |
Analytics
| Case Qty | 1 units |
|---|---|
| Atom Count | 1 |
Condenser Fan Motor, 1/2 HP, 850 RPM, 60 Hz
Brand: Century
'Condenser Fan Motor,Motor Design Permanent Split Capacitor,Motor Enclosure Design Open Air-Over,1/2 HP,RPM Range Under 1000,Nameplate RPM 850,Voltage 200-230/460,56Y Frame,Number of Speeds 1,Overall Length 16-13/16 In.,Shaft Length 6 In.,Shaft Orientation Up,Features Internal Conduit Box for Enclosed Wiring Connection,Motor Shaft Rotation CW/CCW,Full Load Amps 3.5-3.4/1.7,Stud Motor Mounting Type,Thermal Protection Auto,Insulation Class B,Service Factor 1.0,Bearings Ball'
Details
- <b>Price For:</b> Each <b>Item</b>: Condenser Fan Motor <b>Motor Application</b>: HVAC/R <b>Motor Sub Application</b>: Condenser Fan <b>Motor Thermal Protection</b>: Auto <b>Motor Service Factor</b>: 1.00 <b>Standards</b>: UL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642) <b>Voltage Compatibility</b>: 200, 208, 230, 240, 460, 200-230, 200-230/440, 208-230/460, 220/460, 200-230/460, 230/460
- <b>Features</b>: Internal Conduit Box for Enclosed Wiring Connection <b>Frame</b>: 56Y <b>HP</b>: 1/2 <b>Motor Design</b>: Permanent Split Capacitor <b>Full Load Amps</b>: 3.5-3.4/1.7 <b>No. of Speeds</b>: 1 <b>Voltage</b>: 200-230/460 <b>Resilient Ring Dia.</b>: 2-1/2" <b>Shaft Length</b>: 6" <b>Mounting Stud Pattern</b>: 4-1/8" x 4-1/8" <b>Ring to Ring Center</b>: 10-5/16" <b>Overall Length</b>: 16-13/16" <b>Ins. Class</b>: B <b>Max. Ambient Temp.</b>: 60 Degrees C
- <b>Nominal Efficiency</b>: 65.0% <b>Motor Bearings</b>: Ball <b>Length Less Shaft</b>: 10-13/16" <b>Hz</b>: 60 <b>Motor Shaft Rotation</b>: CW/CCW <b>Shaft Dia.</b>: 5/8" <b>Duty</b>: Continuous <b>Motor Shaft Design</b>: Keyed with Single Flat <b>Stud Size</b>: 10-32 x 1-1/4" <b>Capacitor Required</b>: 2MDV9 <b>Motor Enclosure Design</b>: Open Air-Over <b>Stud Quantity</b>: 4 <b>Phase</b>: 1 <b>Motor Mounting Position</b>: Vertical Shaft Up <b>Body Dia.</b>: 6-1/2" <b>Nameplate RPM</b>: 850
- <b>Motor Mounting Type</b>: Stud <b>Country of Origin (subject to change)</b>: Mexico
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS Basic |
| Product type | ELECTRIC_MOTOR |
| Model | C512V1 |
| Part number | C512V1 |
| Items per pack | 1 |
| Label | CENTURY |
| Manufacturer | CENTURY |
Catalog
| Feature | <b>Price For:</b> Each <b>Item</b>: Condenser Fan Motor <b>Motor Application</b>: HVAC/R <b>Motor Sub Application</b>: Condenser Fan <b>Motor Thermal Protection</b>: Auto <b>Motor Service Factor</b>: 1.00 <b>Standards</b>: UL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642) <b>Voltage Compatibility</b>: 200, 208, 230, 240, 460, 200-230, 200-230/440, 208-230/460, 220/460, 200-230/460, 230/460 |
|---|---|
| Category | Tools & Home Improvement |
| MPN | C512V1 |
| UPC | 663001044086 |
| EAN | 663001044086 |
| Product group | BISS |
| Product type | HOME_LIGHTING_ACCESSORY |
| Manufacturer | CENTURY |
Analytics
| Category | tools |
|---|---|
| Offers | 8 |
| Case Qty | 1 units |
| Atom Count | 1 |
| Last Price | $634.34 |
A.O. Smith Corporation C512 1/2 HP 56 Frame Vertical Condenser Fan Motor, Permanent Split Capacitor
Brand: A.O. Smith Corporation
C512, A.O. Smith Corporation, 1/2 HP 56 Frame Vertical Condenser Fan Motor, Permanent Split Capacitor
Listing
| Product group | BISS Basic |
|---|---|
| Product type | MECHANICAL_COMPONENTS |
| Part number | C512 |
| Items per pack | 1 |
| Label | A.O. Smith Corporation |
| Manufacturer | A.O. Smith Corporation |
Catalog
| Category | Tools & Home Improvement |
|---|---|
| MPN | C512 |
| Product group | BISS |
| Product type | MECHANICAL_COMPONENTS |
| Manufacturer | A.O. Smith Corporation |
Condenser Fan Motor 1/2 HP 850 RPM 60 H
Brand: Century
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS Basic |
| Product type | ELECTRIC_MOTOR |
| Part number | C512V1 |
| Items per pack | 1 |
| Label | CENTURY |
| Manufacturer | CENTURY |
Catalog
| Category | Tools & Home Improvement |
|---|---|
| MPN | C512V1 |
| UPC | 94700824448 |
| EAN | 94700824448 |
| Product group | Home Improvement |
| Product type | TOOLS |
| Manufacturer | Century |
Analytics
| Category | tools |
|---|---|
| Offers | 3 |
| Case Qty | 1 units |
| Atom Count | 1 |
| Last Price | $424.92 |
