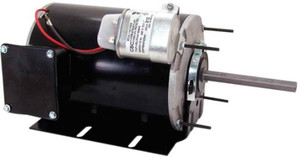

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 208-230/460V AC, 2.4/1.20 Full Load Amps, 48Y Frame, Output Watts 370 W, 60 Hz, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G2642841 | 1 | 20 | 1 | 1 @ $342.99 |
| Grainger | 4MA29 | 1 | 1 | ||
 Global Industrial | WBB244998 | 1 | -2 | 1 | 1 @ $399.95 |
| AD8TLN | 1 | 1 | 1 @ $550.72 | ||
 AmazonTP | B0091BBXRS | 1 | 1 | 1 @ $302.56 | |
 AmazonTP | B000LEETUM | 1 | 1 | 1 @ $251.69 | |
| B0091BBXRS | 1 | 1 | 1 @ $302.56 | ||
 Voomi Supply | FB1056TE | 1 | -2 | 1 | 1 @ $384.16 |
 National Supply Network | B244998 | 1 | -2 | 1 | 1 @ $388.67 |
| sustainablesupply.com | C1561092 | 1 | 1 | 1 @ $413.70 | |
 emotorpro.com | FB1056TE | 1 | -2 | 1 | 1 @ $391.66 |
| uri.com | FB1056TE | 1 | -2 | 1 | 1 @ Contact your local branch for more information. |
 simsupply.com | CU-344D413239 | 1 | 71 | 1 | 1 @ $305.92 |
 midwestapplianceparts.com | FB1056TE-AO-P | 1 | 1 | 1 @ $516.19 | |
| AO2 FB1056TE | 1 | -2 | 1 | 1 @ $777.34 | |
| midwestapplianceparts.com | FB1056TE -AO-P | 1 | 1 | ||
 Square One | FB1056TE | 1 | -2 | 1 | 1 @ $365.40 |
| hvacdiscountstore.com | CEN--FB1056TE | 1 | 1 | 1 @ $451.02 | |
 homeessentialsdirect.com | FB1056TE | 1 | -2 | 1 | 1 @ $428.01 |
 simsupply.com | ZO-G2642841 | 1 | 3 | 1 | 1 @ $405.99 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Condenser Fan Motor, 1/2 HP, 1075 RPM, 60Hz
Brand: Century
' Condenser Fan Motor, Motor Design Permanent Split Capacitor, Motor Enclosure Design Totally Enclosed Air-Over, 1/2 HP, RPM Range 1001-1100, Nameplate RPM 1075, Voltage 208-230/460, 48Y Frame, Number of Speeds 1, Overall Length 13-3/4 In., Shaft Length 5 In., Shaft Orientation Up, Features Reversible, Auto Protector, Open Lead End, Motor Shaft Rotation CW/CCW, Full Load Amps 2.4-2.4/1.2, Cradle Base Motor Mounting Type, Thermal Protection Auto, Insulation Class B, Service Factor 1.0 '
Details
- Price For: Each Hz: 60 Motor Service Factor: 1.00 Motor Shaft Rotation: CW/CCW Motor Application: HVAC/R Phase: 1 No. of Speeds: 1 Motor Sub Application: Condenser Fan Motor Enclosure Design: Totally Enclosed Air-Over Item: Condenser Fan Motor Motor Thermal Protection: Auto Motor Design: Permanent Split Capacitor Features: Reversible, Auto Protector, Open Lead End
- Standards: UL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642) Voltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460 Mounting Stud Pattern: 3-5/8" x 3-5/8" Stud Size: 8-32 x 1-1/2" Nameplate RPM: 1075 Ins. Class: B Stud Quantity: 4 HP: 1/2 Motor Bearings: Ball Body Dia.: 5-5/8" Full Load Amps: 2.4-2.4/1.2 Motor Shaft Design: Double-Flat
- Frame: 48Y Motor Mounting Position: Vertical Shaft Up Motor Mounting Type: Cradle Base Voltage: 208-230/460 Resilient Ring Dia.: 2-1/4" Shaft Length: 5" Ring to Ring Center: 8-5/16" Overall Length: 13-3/4" Max. Ambient Temp.: 40 Degrees C Nominal Efficiency: 65.0% Length Less Shaft: 8-3/4" Duty: Continuous Shaft Dia.: 1/2" Capacitor Required: Included
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRIC_MOTOR |
| Part number | FB1056TE |
| Items per pack | 1 |
| Label | CENTURY |
| Manufacturer | CENTURY |
Catalog
| Feature | Price For: Each Hz: 60 Motor Service Factor: 1.00 Motor Shaft Rotation: CW/CCW Motor Application: HVAC/R Phase: 1 No. of Speeds: 1 Motor Sub Application: Condenser Fan Motor Enclosure Design: Totally Enclosed Air-Over Item: Condenser Fan Motor Motor Thermal Protection: Auto Motor Design: Permanent Split Capacitor Features: Reversible, Auto Protector, Open Lead End |
|---|---|
| Category | Tools & Home Improvement |
| MPN | FB1056TE |
| UPC | 663001044550 |
| EAN | 663001044550 |
| Product group | BISS |
| Product type | HOME_LIGHTING_ACCESSORY |
| Manufacturer | CENTURY |
Analytics
| Category | lighting |
|---|---|
| Offers | 11 |
| Case Qty | 1 units |
| Last Price | $349.99 |
Condenser Fan Motor, 1/2 HP, 1075 RPM, 60Hz
Brand: Century
Listing
| Binding | Misc. |
|---|---|
| Product group | Home Improvement |
| Product type | ELECTRIC_MOTOR |
| Model | FB1056TE |
| Part number | FB1056TE |
| Label | CENTURY |
| Manufacturer | CENTURY |
Catalog
| Feature | Sold on Amazon |
|---|---|
| Category | Tools & Home Improvement |
| MPN | FB1056TE |
| Product group | Home Improvement |
| Product type | TOOLS |
| Manufacturer | Century |
Analytics
| Category | tools |
|---|---|
| Offers | 2 |
| Case Qty | 1 units |
| Last Price | $349.99 |
Century FB1056TE Condenser, 5.6-Inch Frame Diameter, 1/2-HP, 1075-RPM, 208-230, 460-Volt, 2.4-Amp, Ball Bearing Motor
Brand: Century
Details
- 5.6-Inch Frame Diameter
- 1/2-HP
- 1075-RPM
Listing
| Binding | Tools & Home Improvement |
|---|---|
| Product group | Home Improvement |
| Product type | HOME_LIGHTING_ACCESSORY |
| Model | FB1056TE |
| Part number | FB1056TE |
| Items per pack | 1 |
| Label | Century |
| Manufacturer | Century |
Catalog
| Feature | 5.6-Inch Frame Diameter |
|---|---|
| Category | Tools & Home Improvement |
| MPN | FB1056TE |
| UPC | 786674020253 |
| EAN | 786674020253 |
| Product group | Home Improvement |
| Product type | HOME_LIGHTING_ACCESSORY |
| Manufacturer | Century |
Analytics
| Category | lighting |
|---|---|
| Offers | 3 |
| Case Qty | 1 units |
| Last Price | $311.02 |
