Pool Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Frame 48Y, Hz 60, Full Load Amps 7.7/2.8, Height 5 5/8 in, HP 1, 1/6, Ins. Class B, Length Less Shaft 12 15/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

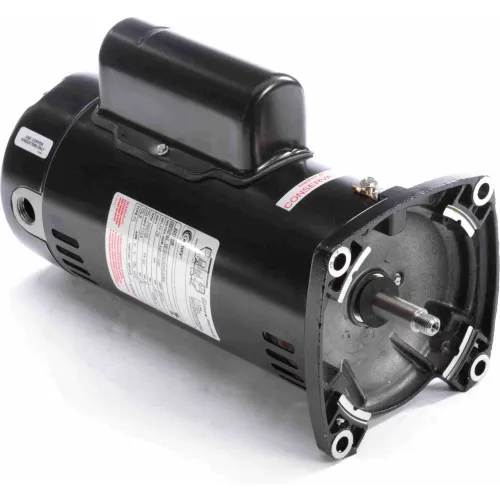

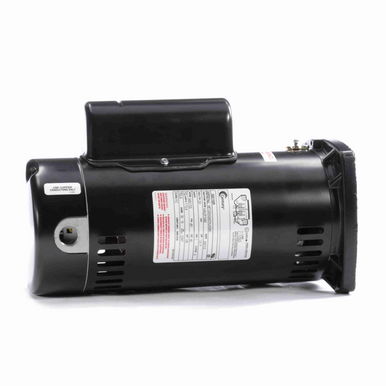

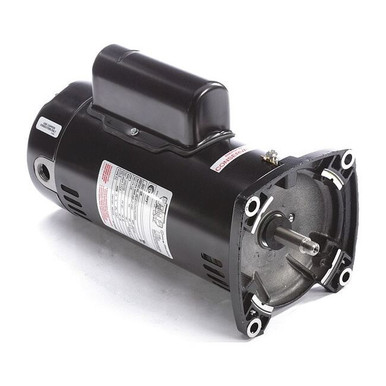

Square Flange replacement inground pool pump motor. This is a 2 speed motor. Motor is found on many in ground pool pumps such as PacFab Challenger, Whisperflo, Pentair, Sta-rite Dura Glas, Dyna Glas, Max E Glas. Motor has a square type flange for mounting the pump. 4 non-threaded bolts holes in flange. 48Y motors do not have internal threaded hole in shaft. 1 year manufacture warranty.

1 to 1/6 HP Motor

It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT. Replaces A.O. Smith UQS1152R Motor Dual Speed Motor (2 Speed) High Speed: 1 Horsepower Low Speed: 1/6 Horsepower High Speed Amps: 7.7 amps Low Speed Amps: 2.8 amps Service Factor: 1.65 230 Volt 48Y Frame 48Y motor body diameter is 1/2" smaller than 56Y Square Flange (Face) 5/8" Threaded Shaft All copper windings Automatic thermal protection Stainless steel threaded shaft Double sealed ball bearings Does not include toggle switch Cross Reference: 12042, 12072, 177144, 5KC39UN2560CT, 5KC39UN2560T, 8-177144-04, A100EHL-YS, B2982, B961, B982, C1311, C48K2P109, C48L2P104A1, C48L2P105, C48L2P105A1, C48L2PM101, C48L2PU102, EB982, K48L2P104B2, SQH10FL2, SQS1102R, UQS1152R When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.
