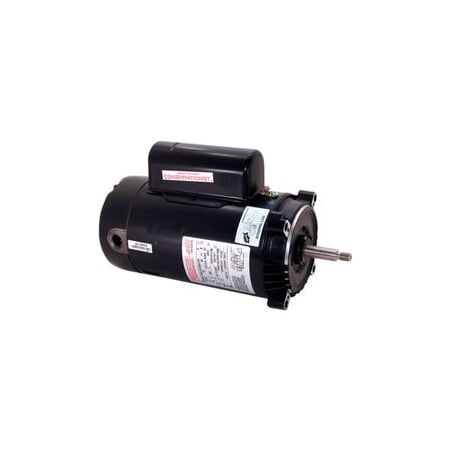

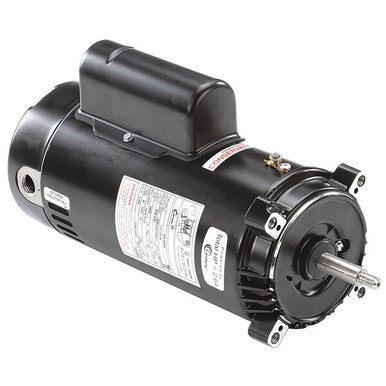

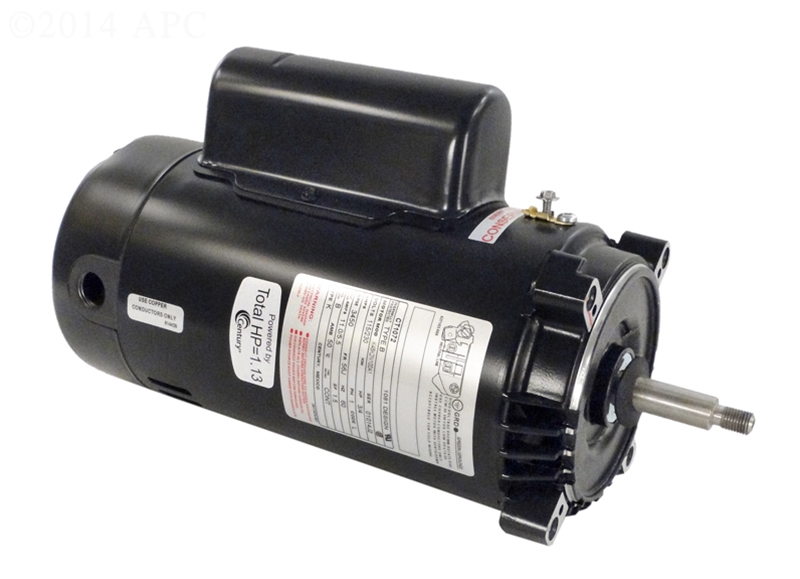

A.O. Smith ST1202 2 HP, 12.6-11.4 Amps, 1.3 Service Factor, 56J Frame, Capacitor Start/Capacitor Run, ODP Enclosure, ...

A.O. Smith C-Face Pool Pump Motor Energy Efficient Full Rated 2HP 230V # ST1202 Pool Pump Motor, Open Drip Proof, Capacitor-Start/Capacitor Run, 2 HP, 3450 RPM, 56J NEMA Frame, 208-230 Voltage, 12.6-11.4 Full Load Amps, C-Face Mounting, Auto Thermal Protection, 1.30 Service Factor, Ambient 50 C, Insulation Class B, CWLE Rotation, Bearings Locked Double Sealed Ball on Shaft End, Efficiency Group High, Shaft Diameter 5/8 In, Shaft Length 2 9/16 In, Shaft Type Threaded, 303 Stainless Steel Shaft, Aluminum Flange, 60 Hz, Black Finish. Fits: Americana Pump, American Productss Eagle, Hayward Super Pump, Hayward Max-Flo Pump, Jacuzzi Magnum

It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT. 2 HP - Full Rated Energy Efficient Service Factor: 1.30 56J Frame 56C Face Mount Threaded Shaft 208-230 Volt 12.6-11.4 amps Capacitor Start Automatic Overload Protection Non-Reversible CCW Stainless Steel Shaft Cross Reference: SP1615Z1MBK, SP1615Z1MEE, SP1620Z1B, SP1620Z1BEE, SPX1620Z1BEE, SP1620Z1MEE, SP1620Z1MH, SPX1615Z1M, C48M2DB11C10, C56M2N111, C56M2N11A1, C56N2N104, C56N2N104A1, C56N2N105, C56N2N106, C56N2N107A1, C56N2T61, C56N2T61A1, C56N2T61A2, C56N2U11A1, C56N2U11A7, K48M2N113, K48M2N113A1, K48N2N104, K48N2N104A1, K48N2N107A1, K48N2N107A2, K48N2N113A1, K48N2N113A3, K48N2N113A4, K56N2N100A1, ST1202, 164567, 165114, 177027, 177033, B109, B130, B711, B773, B809, B836, C1102, C494, EB130, EB809, 12039, 13300, 13800, 15027, 15226, 52012, CT120C, CT220CE, 5KCR49UN2090X, B809 When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.?
