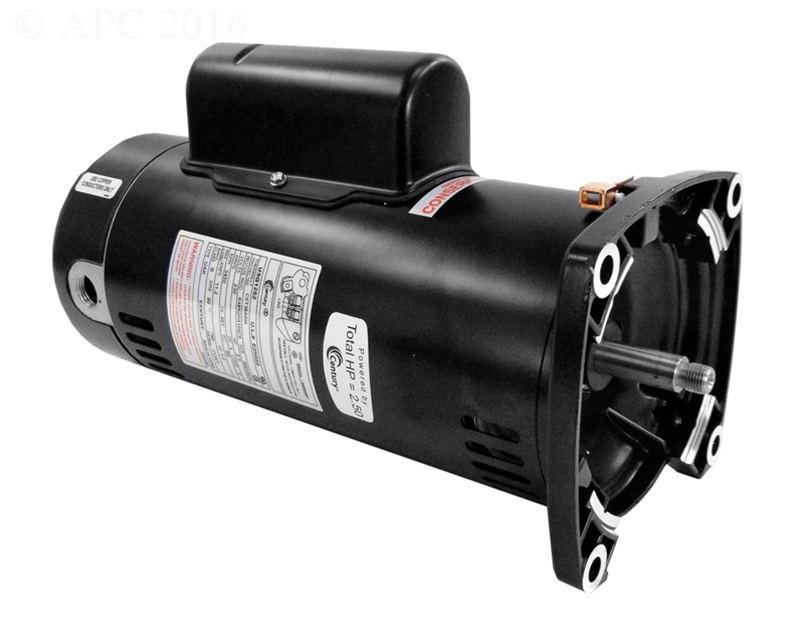

Century Electric USQ1252 2 1/2-Horsepower Up-Rated Square Flange Replacement Motor (Formerly A.O. Smith). High-qualit...

'Square Flange Pool Pump Motor, Capacitor-Start/Run Motor Design, Open Dripproof Motor Enclosure Design, 2-1/2 HP, Nameplate RPM 3450, 48Y Frame, Voltage 230, 60 Hz, 1 Phase, Full Load Amps 11.2, Face Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.00, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CCWSE, Shaft Threaded 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH, Shaft Material 303 Stainless Steel, Shaft Dia. 5/8 In., Two Compartment'

A.O. Smith a name you can trust for pool replacement motors. Single speed. 230 volts. 11.2 max amps. 1.00 service factor. Threaded shaft. 48y frame. 3450 rpm. 60 hz. Equipment, Pump Motors, Square Motor.

AO SMITH - 2-1/2 HP Motor, up rated 230V

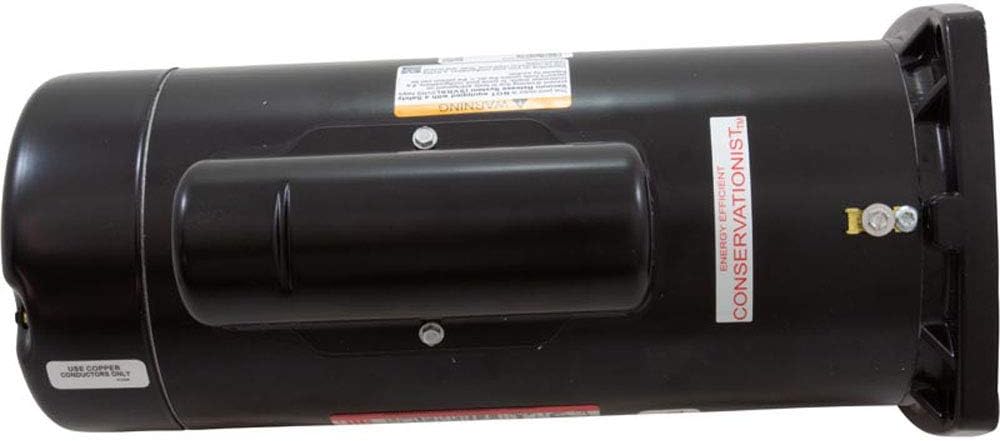

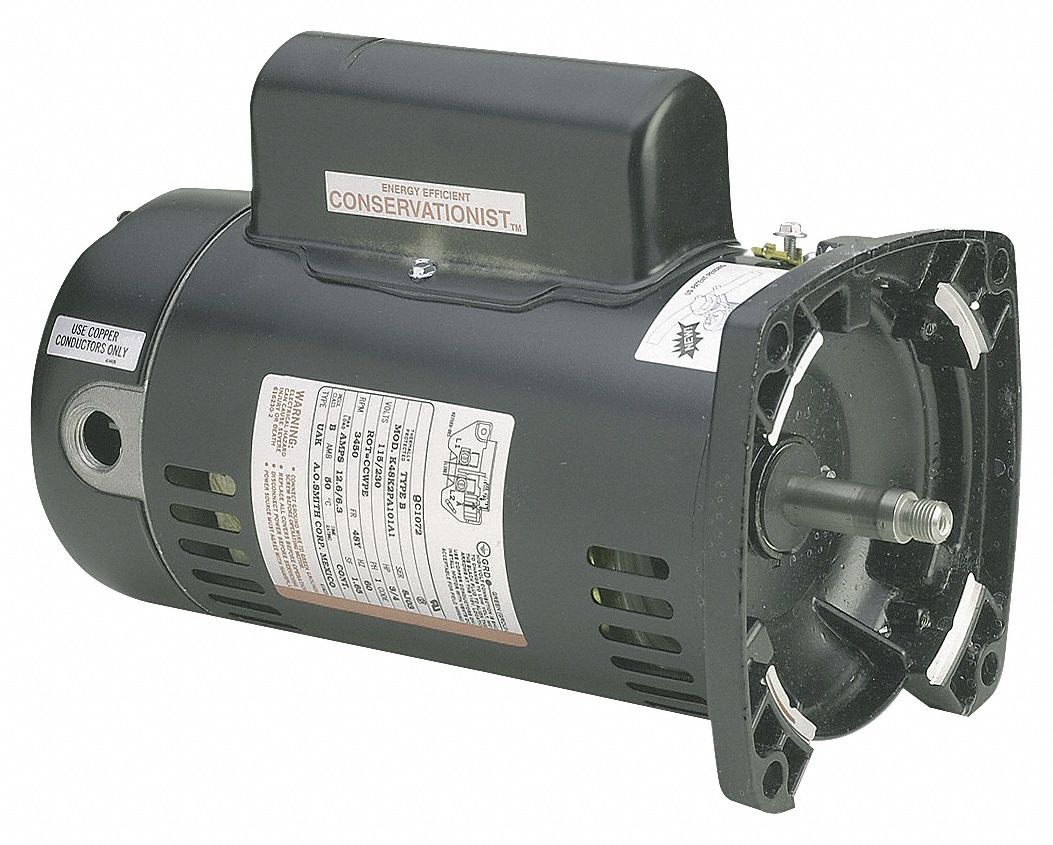

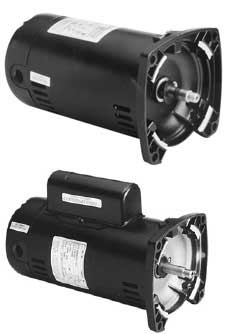

The A.O. Smith Two-Compartment Square Flange Pool Filter Motor works efficiently with its single-speed design. It boasts a CCW Rotation on the pump end for installation and is Energy Efficient capacitor start is run using a ?Conservationist?? motor for enhanced performance. With horsepower ratings ranging from 1/2"P to 3HP, the Two-Compartment Square Flange Pool Filter Motor comes in Full or Up-Rated models and provides long lasting and trustworthy performance. Used on many Sta-Rite, Red Jacket, Pac Fab and American products, it's the perfect addition to your filter pump system for enhanced performance. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with and open drip proof enclosure, the Two-Compartment Square Flange Pool Filter Motor is sure to last.

It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT. 2.5 HP - Up Rated - Energy Efficient 230 Volts 11.2 amps Service Factor: 1.00 48Y Frame 48Y motor body diameter is 1/2" smaller than 56Y Square Flange (Face) 5/8" Threaded Shaft All copper windings Automatic thermal protection Stainless steel threaded shaft Double sealed ball bearings Replaces Sta-Rite numbers AE100G5LL (Pump Models: MPEAA6G-168L, PEAA5G-122L, PEAA6G-184L, P6EAA6G-208L, TPEAAG-168LS, P4EAA6G-189L) Replaces Jandy number R0339805 (Pump Model: MHPU2.5) Replaces Pentair numbers 355394 ( Pump Models: WFE-30, WF-30, CFII-NI-2-12A, CHII-NI-2-1/2A & CHII-NI-2-1/2AE) Cross Reference: AE100G5LL, K48A03A24, K48N2EC11A1, K48N2P102A2, K48N2P102A3, K48N2P103, K48N2PA102A1, K48N2PA102A3, K48N2PA105, K48N2PA105A2, USQ1252, B840, B840SE, C1284, 11804, 13280, 5KCR48UN2496X, 355394 When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.?
