| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Grainger | 6TWK9 | 1 | 1 | ||
 Zoro | G3297603 | 1 | 53 | 1 | 1 @ $140.00 |
| SupplyHouse | FD6001A | 1 | 1 | ||
 AmazonTP | B007ICTDCE | 1 | 1 | 1 @ $127.66 | |
| AmazonSC | B0831MC774 | 1 | 1 | 1 @ $174.03 | |
 AmazonUNK | B082MQMRC6 | 1 | -2 | 1 | 1 @ $153.84 |
| AmazonTP | B082MQMRC6 | 1 | 1 | 1 @ $153.84 | |
 Voomi Supply | FD6001A | 1 | -2 | 1 | 1 @ $140.00 |
| sustainablesupply.com | C2090584 | 1 | 1 | 1 @ $166.20 | |
 emotorpro.com | FD6001A | 1 | -2 | 1 | 1 @ $158.84 |
| uri.com | FD6001A | 1 | -2 | 1 | 1 @ $310.76 |
 simsupply.com | ZO-G3297603 | 1 | 9 | 1 | 1 @ $165.78 |
 midwestapplianceparts.com | FD6001A-AO-P | 1 | 1 | 1 | 1 @ $192.15 |
 ktool.net | FD6001A | 1 | -2 | 1 | 1 @ $140.00 |
| bakerdist.com | AOSFD6001A | 1 | 1 | 1 @ False | |
| midwestapplianceparts.com | FD6001A -AO-P | 1 | 1 | ||
| Square One | FD6001A | 1 | 1 | ||
 Global Industrial | WBB2776574 | 1 | -2 | 1 | 1 @ $189.95 |
 National Supply Network | B2776574 | 1 | -2 | 1 | 1 @ $170.04 |
| hvacdiscountstore.com | CEN--FD6001A | 1 | 1 | 1 @ $151.17 | |
 homeessentialsdirect.com | FD6001A | 1 | -2 | 1 | 1 @ $154.41 |
| FD6001A | 1 | 1 | 1 @ $140.00 | ||
 Zoro | G404937176 | 1 | -2 | 1 | 1 @ $341.97 |
 Zoro | G009236131 | 1 | 1 | 1 | 1 @ $208.99 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
AO SMITH FD6001 5 5/8 Inch Diameter Motor 208-230 Volts 1075 RPM
Brand: A. O. Smith
Listing
| Product group | Home Improvement |
|---|---|
| Product type | ELECTRIC_MOTOR |
| Part number | FD6001A |
| Label | A.O. Smith |
| Manufacturer | A.O. Smith |
Analytics
| Case Qty | 1 units |
|---|

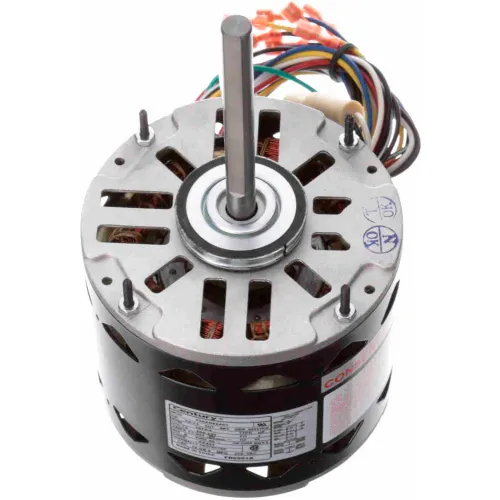

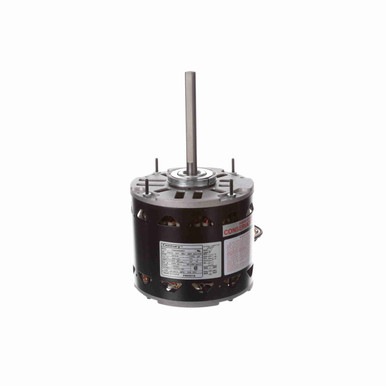

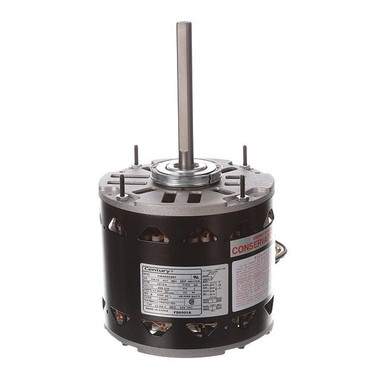

Century FD6001A Direct Drive Blower Motor, 5-5/8", 208-230V, 4.0-2.0 Amp, 3/4-1/5 hp, 1,075 RPM, Plastic, 13.8" x 7.1" x 7"
Brand: Century
' Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Enclosure, 3/4 to 1/5 HP, 1075 Nameplate RPM, Voltage 208-230, 4.0 Full Load Amps, 60 Hz, 1 Phase, 48Y Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 4, Mounting Stud, Shaft Orientation Horizontal, Bearings Ball, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5-3/4 In., Length Less Shaft 5-1/2 In., Overall Length 10-5/16 In., Shaft Dia. 1/2 In. '
Details
- Price For: Each Body Dia.: 5-3/4" Motor Shaft Design: Flat Hz: 60 Motor Service Factor: 1.00 Motor Shaft Rotation: CW/CCW Frame: 48Y Includes: Reversing Plug, Predrilled Holes In Shell for Rheem Mounting Standards: UL Recognized, CSA Certified Overall Length: 10-5/16" Motor Application: HVAC/R Mounting Stud Pattern: 3-5/8" x 3-5/8" Phase: 1 Ins. Class: B
- Mounting Stud Length: 5/8" Mounting Stud Location: Shaft End No. of Speeds: 4 Resilient Ring Dia.: 2-1/4" Shaft Length: 4-1/2" Capacitor Required: Included Max. Ambient Temp.: 40 Degrees C Manufacturers Warranty Length: 1 yr. Motor Sub Application: Direct Dr Fan/Blower Application: Replaces Emerson, Fasco, Genteq, Marathon, Protech Fan, Blower Motors In Residential and Light Commercial HVAC Systems
- Bolt Circle Dia.: 5-3/16" Motor Mounting Type: Stud Stud Size: #8-32 NC-2A Ring to Ring Center: 5-7/16" Motor Enclosure Design: Open Item: Direct Drive Blower Motor Motor Mounting Position: Horizontal Nameplate RPM: 1075 Motor Thermal Protection: Auto Motor Design: Permanent Split Capacitor Shaft Dia.: 1/2" Duty: Continuous Voltage Compatibility: 115/208-230, 208-230, 208-240 Motor Bearings: Ball
Listing
| Binding | Misc. |
|---|---|
| Product group | Home Improvement |
| Product type | HOME_LIGHTING_ACCESSORY |
| Model | FD6001A |
| Part number | FD6001A |
| Items per pack | 1 |
| Label | CENTURY |
| Manufacturer | CENTURY |
Catalog
| Feature | Hvac/Service and Installation Parts |
|---|---|
| Category | Tools & Home Improvement |
| MPN | FD6001A |
| UPC | 786674054753 |
| EAN | 786674054753 |
| Product group | BISS |
| Product type | SAFETY_SUPPLY |
| Manufacturer | Century |
Analytics
| Revenue | $281.90 |
|---|---|
| DA Sales | 2 |
| Offers | 14 |
| Case Qty | 1 units |
| Atom Count | 1 |
| Last Price | $137.65 |
AO SMITH FD6001A 1/5HP-3/4HP MASTERFIT DIRECT DRIVE BLOWER MOTOR SINGLE SHAFT
Brand: AO Smith
Catalog
| Feature | DIRECT DRIVE BLOWER MOTOR |
|---|---|
| Category | Industrial & Scientific |
| MPN | FD6001A |
| UPC | 786674054753 |
| EAN | 786674054753 |
| Product group | BISS |
| Product type | MATERIAL_HANDLING |
| Manufacturer | AO SMITH |
A.O. Smith Corporation A. O. Smith Corporation FD6001A Motor 48FR
Brand: A.O. Smith Corporation
Motor 48fr
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Part number | FD6001A |
| Items per pack | 1 |
| Label | A.O. Smith Corporation |
| Manufacturer | A.O. Smith Corporation |
Analytics
| Case Qty | 1 units |
|---|---|
| Atom Count | 1 |
Century Motors Masterfit Pro Direct Replacement Multi-horsepower Motor Direct Drive Fan & Blower Motor Fd6001a
Brand: Century
Direct Drive Blower Motor, Permanent Split Capacitor Motor Design, Open Air-Over Motor Enclosure Design, 3/4 to 1/5 HP, 1075 Nameplate RPM, Voltage 208-230, 4.0 Full Load Amps, 60 Hz, 1 Phase, 48Y Frame, Motor Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Ins. Class B, Duty Continuous, No. of Speeds 4, Motor Mounting Type Stud, Motor Mounting Position Horizontal, Motor Bearings Ball, Motor Thermal Protection Auto, Motor Shaft Rotation CW/CCW, Length Less Shaft 5 13/16 in
Details
- Mounting Stud Pattern: 3-5/8 in x 3-5/8 in, Nameplate RPM: 1075, Stud Size: #8-32
Listing
| Product group | Kitchen |
|---|---|
| Product type | KITCHEN |
| Model | FD6001A |
| Part number | FD6001A |
| Items per pack | 1 |
| Label | Century Motors |
| Manufacturer | Century Motors |
Analytics
| Case Qty | 1 units |
|---|---|
| Atom Count | 1 |
