Century . 9685
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2584705 | 1 | 1 | |||
 Raptor Supplies | AD9TWW | 1 | 1 | 1 @ $382.44 | |
| B00BXKEIGI | 1 | -2 | 1 | 1 @ $228.08 | |
| sustainablesupply.com | C2090759 | 1 | 1 | 1 @ $277.10 | |
 Dreisilker | CE-RBC-9685 | 1 | -2 | 1 | 1 @ $313.54 |
| 9685 | 1 | -2 | 1 | 1 @ $296.48 | |
 midwestapplianceparts.com | 9685-AO-P | 1 | 1 | 1 | 1 @ $299.42 |
| midwestapplianceparts.com | 9685 -AO-P | 1 | 1 | ||
| hvacdiscountstore.com | CEN--9685 | 1 | 1 | 1 @ $326.62 | |
| Square One | 9685 | 1 | 1 | ||
 ktool.net | 9685 | 1 | -2 | 1 | 1 @ $240.22 |
| 9685 | 1 | -2 | 1 | 1 @ $273.24 | |
| 9685 | 1 | -2 | 1 | 1 @ $325.23 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

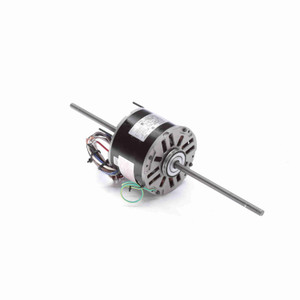

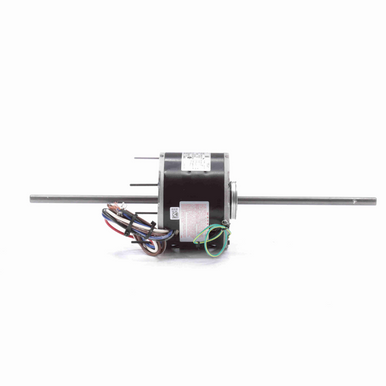

Room Air Cond Mtr, PSC, OAO, 1550 RPM
Brand: Century
'Room Air Conditioner Motor, Permanent Split Capacitor, Open Air-Over, Continuous, 1/6 HP, 1550 Nameplate RPM, Voltage 115, 48Y Frame, Service Factor 1.0, 60/50 Hz, Full Load Amps 2.7, Thermal Protection Auto, Insulation Class B, Max. Ambient Temp. 40 Degrees C, Number of Speeds 3, CCWLE Rotation, 1 Phase, Stud Mounting, Sleeve Bearings, Body Dia. 5-5/8 In., Length Less Shaft 4-1/2 In., Shaft Type Flat, Shaft Dia. 1/2 In., Shaft Length 7-1/2, 8 In., Stud Pattern 3-5/8 x 3-5/8 In.'
Details
- <b>Price For:</b> Each <b>Item</b>: Room Air Conditioner Motor <b>Motor Enclosure Design</b>: Open Air-Over <b>Phase</b>: 1 <b>Motor Bearings</b>: Sleeve <b>Motor Thermal Protection</b>: Auto <b>Duty</b>: Continuous <b>Motor Service Factor</b>: 1.00 <b>Motor Sub Application</b>: Room Air Conditioner <b>Motor Application</b>: HVAC/R <b>Motor Design</b>: Permanent Split Capacitor <b>Shaft Dia.</b>: 1/2" <b>Nameplate RPM</b>: 1550
- <b>Mounting Stud Pattern</b>: 3-5/8" x 3-5/8" <b>Lead Length</b>: 36" <b>HP</b>: 1/6 <b>Stud Size</b>: #8-32 x 1-5/8" <b>Max. Ambient Temp.</b>: 40 Degrees C <b>Full Load Amps</b>: 2.7 <b>Bolt Circle Dia.</b>: 5-3/16" <b>Length Less Shaft</b>: 4-1/2" <b>Voltage Compatibility</b>: 115, 120, 115/208-230, 115/230, 120/240 <b>Body Dia.</b>: 5-5/8" <b>Ins. Class</b>: B <b>Frame</b>: 48Y <b>Motor Shaft Rotation</b>: CCWLE <b>Standards</b>: UL, CSA <b>Motor Shaft Design</b>: Flat <b>Voltage</b>: 115
- <b>Motor Mounting Type</b>: Stud <b>Shaft Length</b>: 7-1/2" and 8" <b>No. of Speeds</b>: 3 <b>Hz</b>: 60/50 <b>Resilient Ring Dia.</b>: 2-1/4" <b>Capacitor Required</b>: 2MDV7 <b>Country of Origin (subject to change)</b>: Mexico
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS |
| Product type | HOME_LIGHTING_ACCESSORY |
| Model | 9685 |
| Part number | 9685 |
| Items per pack | 1 |
| Label | CENTURY |
| Manufacturer | CENTURY |
Catalog
| Feature | <b>Price For:</b> Each <b>Item</b>: Room Air Conditioner Motor <b>Motor Enclosure Design</b>: Open Air-Over <b>Phase</b>: 1 <b>Motor Bearings</b>: Sleeve <b>Motor Thermal Protection</b>: Auto <b>Duty</b>: Continuous <b>Motor Service Factor</b>: 1.00 <b>Motor Sub Application</b>: Room Air Conditioner <b>Motor Application</b>: HVAC/R <b>Motor Design</b>: Permanent Split Capacitor <b>Shaft Dia.</b>: 1/2" <b>Nameplate RPM</b>: 1550 |
|---|---|
| Category | Tools & Home Improvement |
| MPN | 9685 |
| Product group | BISS |
| Product type | HOME_LIGHTING_ACCESSORY |
| Manufacturer | CENTURY |
Analytics
| Category | lighting |
|---|---|
| Offers | 10 |
| Case Qty | 1 units |
| Last Price | $256.62 |
