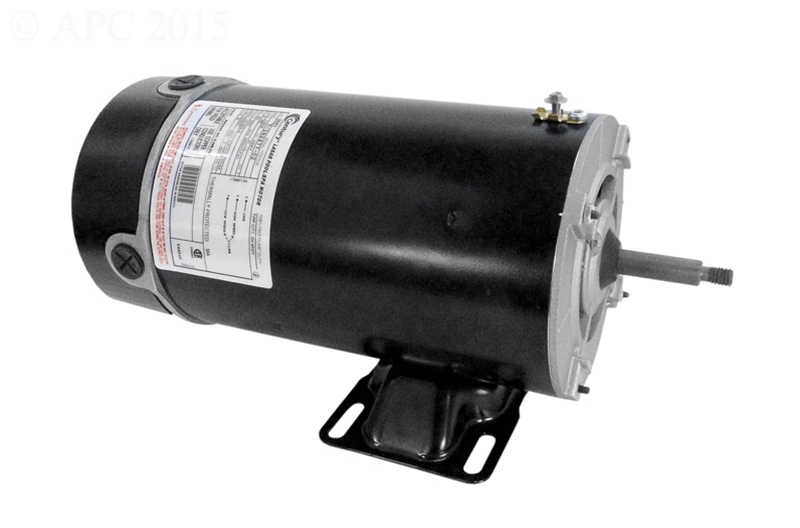

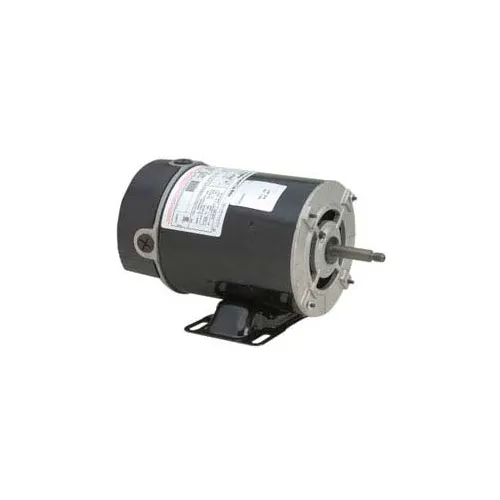

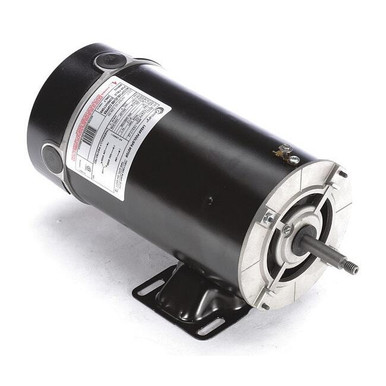

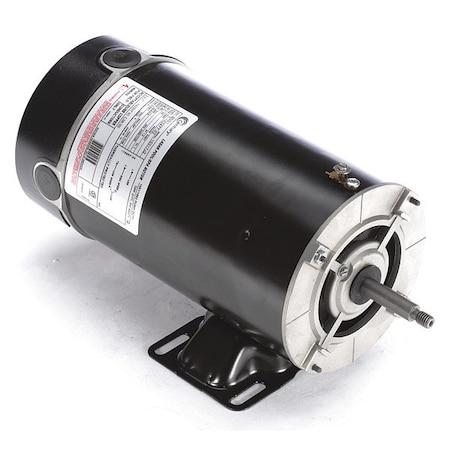

A.O. Smith BN51 2 HP-1/4 HP, 16.4/4.5 Amps, 1 Service Factor, 48Y Frame, Capacitor Start, ODP Enclosure, Rigid Base P...

'Pool and Spa Pump Motor, Capacitor-Start, Open Dripproof, 2, 1/4 HP, 3450/1725 Nameplate RPM, 48Y Frame, CCWSE Motor Shaft Rotation, Voltage 230, 10.5/2.6 Full Load Amps, 1 Phase, 60 Hz, Rigid Base Motor Mounting Type, Ball Motor Bearings, Black, Shaft Threaded 3/8-16 UNC-2A RH, Shaft Material Steel, Motor Thermal Protection Auto, 1.00 Motor Service Factor, Shaft Dia. 1/2 In., Shaft Length 2-5/16 In., Ins. Class B, Standards UL 1081, 1563 Approvable'

2 HP - Thru Bolt - 48Y - 230V - Threaded - Full Rate - 1.0 SF - 2 SpeedAbove Ground Swimming Pool & Jetted Tub/Spa Pump MotorsSplit Phase, Capacitor Start & PSC Single Phase - Dripproof - Ball Bearing - Rigid Base & No BaseCentury Flex 48 LASAR - 1081 - 1563 - Rigid BaseLine (Low Amp Start and Run)Features:12 & 3 O'clock Conduit EntriesRotation: CCW Pump End3-1/2 Inch Shaft Height40 C AmbientClass B InsulationThrough Bolt Mount48/56 Base MountingFour Thru Bolts on a 5.146 Bolt Circle

The 2 -.25 HP 2 SpeedThreaded Shaft Motor 3450/1725 230 60 10.5/2.6 1.0 48Y is manufactured by AO Smith and has the part number of BN51 / BN51

It is important to know that pool pump motors are not manufactured by the pump manufacturer, the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT. 2 Speed Pump High Speed: 2 Horsepower Low Speed: 1/4 Horsepower Service Factor: 1 230 Volts 10.5 / 2.6 amps Mounting: Thru-Bolt Frame: 48Y Rigid Base Mount Welded to Motor Case Automatic overload protection Rotation: CWLE Cross Reference: 181429, 182477, 182864, 182873, 184169, 186548, C1327, 17521, 8-182477-01, 8-182477-40, 7-182477-02, 7-182477-82, 5KCR39UN2904X, 18247700, 718247702, 3420820, 3051310, 718247702 When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump. ?
