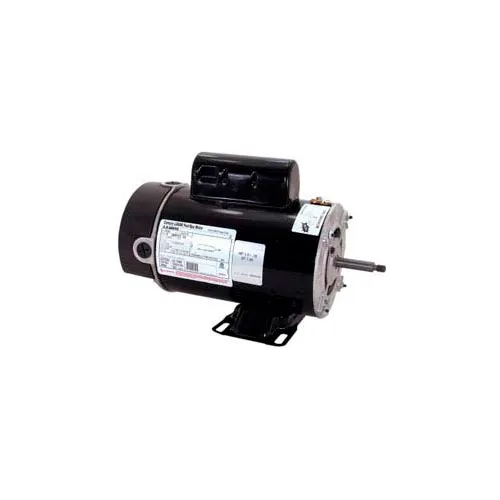

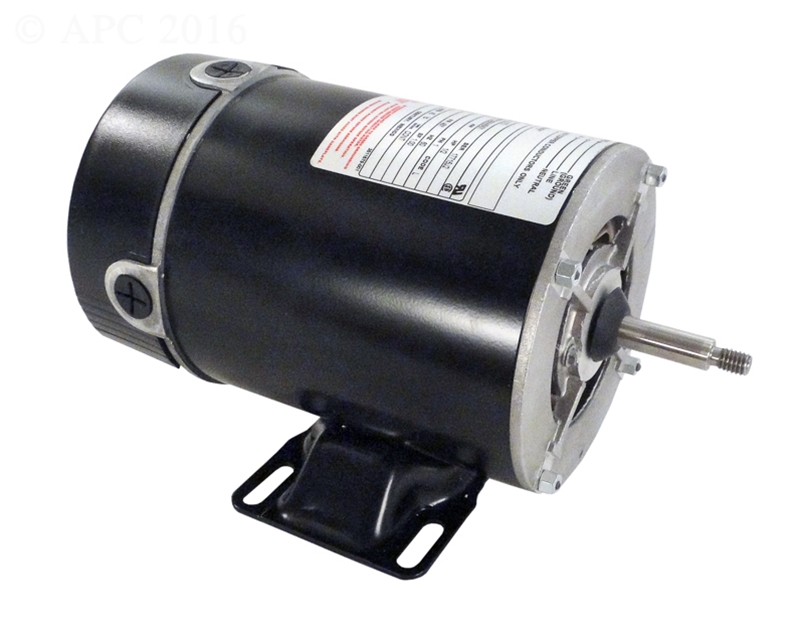

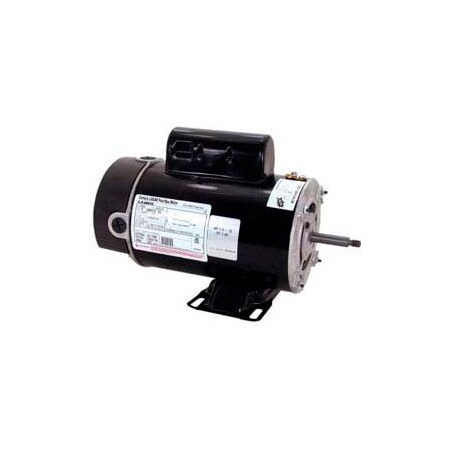

A.O. Smith BN61 2 HP-1/4 HP, 3450/1725 RPM, 2 Speed, 230 Volts, 48Y Frame, PSC, ODP Enclosure, Rigid Base Pool Motor....

'Pool and Spa Pump Motor, Capacitor-Start, Open Dripproof, 2, 1/4 HP, 3450/1725 Nameplate RPM, 48Y Frame, CCWSE Motor Shaft Rotation, Voltage 230, 8.5/2.8 Full Load Amps, 1 Phase, 60 Hz, Rigid Base Motor Mounting Type, Ball Motor Bearings, Black, Shaft Threaded 3/8-16 UNC-2A RH, Shaft Material Steel, Motor Thermal Protection Auto, 1.00 Motor Service Factor, Shaft Dia. 1/2 In., Shaft Length 2-5/16 In., Ins. Class B, Standards UL 1081, 1563 Approvable'

Motor, Century, 2.0 Horsepower, 230v, 2 Speed, 48 Frame, EE

A O Smith Motor 2 speed 3.0HP 230V 2.0HP 3.0 SPL @ Higher RPM 1 4 HP @ Lower RPM 3450 1725 RPM 48Y NEMA Frame 8.5 2.8 Full Load Amps

Above ground swimming pool and spa motors. These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 48Y frame motors thru bolt dimension is 5 1/8" on center measured across the shaft. Shaft is 1/2" diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps. 1 Year Manufacture Warranty. US Electric Equivalent SPH20FL2S

It is important to know that pool pump motors are not manufactured by the pump manufacturer, the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT. Energy Efficient 2 Speed High Speed: 2 Horsepower Low Speed: 1/4 Horsepower 230 Volts 8.5 / 2.8 amps Frame: 48Y Mounting: Thru-Bolt Rigid Base Mount Welded to Motor Case Automatic overload protection Non-Reversible CCW facing the shaft Cross Reference: 182862, 182912, 184224, 186285, 7-182912-03, 8-182862-02, C1327, 17525, 10-182912-03, 7-182862-03, 7-182912-83, 7-182862-40, 7-184224-40, 7-182912-02, 5KCR39UN2904X, 7-186540-01, 186540, sph20fl2s When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump. ?
