NEMA Three Phase, 1.5HP, 3450RPM, 208-230/460V, 6.8/3.4 AMPS, 1.47SERVICE FACTOR, Square FLANGE

'Pool and Spa Pump Motor, 3-Phase, Open Dripproof, 1-1/2 HP, 3450 Nameplate RPM, 48Y Frame, CW/CCW Motor Shaft Rotation, Voltage 208-230/460, 6.8/3.4 Full Load Amps, 3 Phase, 60 Hz, Face Motor Mounting Type, Ball Motor Bearings, Black, Motor Flange Material Aluminum, Shaft Threaded 1/2-20 UNF-2A RH, Shaft Material 303 Stainless Steel, Motor Thermal Protection None, 1.47 Motor Service Factor, Ambient Temperature 50 Degrees C, Shaft Dia. 5/8 In., Shaft Length 5/8 In., Ins. Class B'

These quality A.O. Smith Square Flange Motors are found on many brands of pool pump. Some of these pool pump brands are Sta-Rite, American Products, Pentair, Waterco, Premier Springwater, Waterway, Jandy, Flotec, Red Jacket, Sears Jet, and others.These motors directly replace the "original" motor that came with your pool pump. No pump manufacturer manufactures their own motors. We sell A.O. Smith motors because we have found them to be long lasting and reliable. A.O. Smith manufactured motors are the only brand of replacement motor we use in our local repair work.Features:All copper windingsAutomatic thermal protectionCapacitor startOpen drip proof designStainless steel threaded shaftSealed Ball BearingsMaximum Temperature 50 Degrees Celsius ambient60 HertzThree phaseSingle speed (3450 RPM)

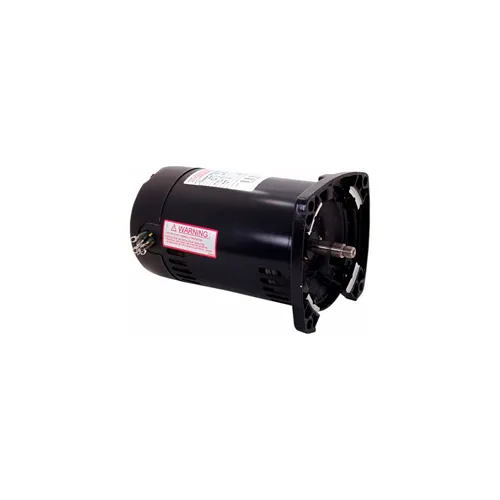

AO SMITH - 1-1/2 HP Motor

The A.O. Smith Two-Compartment Square Flange Pool Motor works efficiently with its single-speed design. It boasts a CCW Rotation on the pump end for installation and is Energy Efficient capacitor start delivers enhanced performance. With horsepower ratings ranging from 3/4-1/8"P to 2-1/3HP, the Two-Compartment Square Flange Pool Motor comes in Full or Up-Rated models and provides long lasting and trustworthy performance. The Two-Compartment Square Flange Pool Motor is used on many Sta-Rite, Red Jacket, Sears Jet and Pool Pumps products. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with and open drip proof enclosure, the Two-Compartment Square Flange Pool Motor is sure to last. This motor does not include a hi/lo switch but the end cover and switch assembly may be purchased separately for remote operation. The Two-Compartment Square Flange Pool Motor also meets California Energy Commission Appliance Regulations 2008 for ultimate efficiency.
