Pool Pump Motor, Permanent Split Capacitor, 1 1/2 HP, 56C Frame, 3,450 Nameplate RPM

'Pool and Spa Pump Motor, Permanent Split Capacitor, Open Dripproof, 1-1/2 HP, 3450 Nameplate RPM, 56C Frame, CCWSE Motor Shaft Rotation, Voltage 115/230, 18.4/9.2 Full Load Amps, 1 Phase, 60 Hz, Face Motor Mounting Type, Ball Motor Bearings, Black, Motor Flange Material Aluminum, Shaft Keyed, Shaft Material AISI 1215 Steel, Motor Thermal Protection Auto, 1.30 Motor Service Factor, Ambient Temperature 50 Degrees C, Shaft Dia. 5/8 In., Shaft Length 2-1/16 In., Ins. Class B'

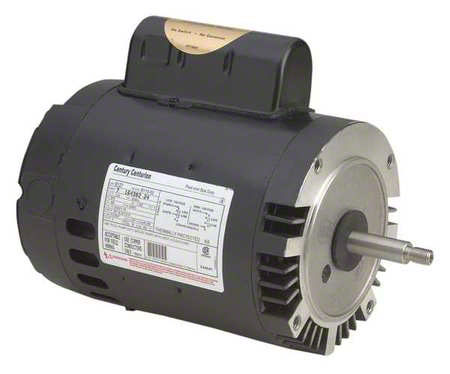

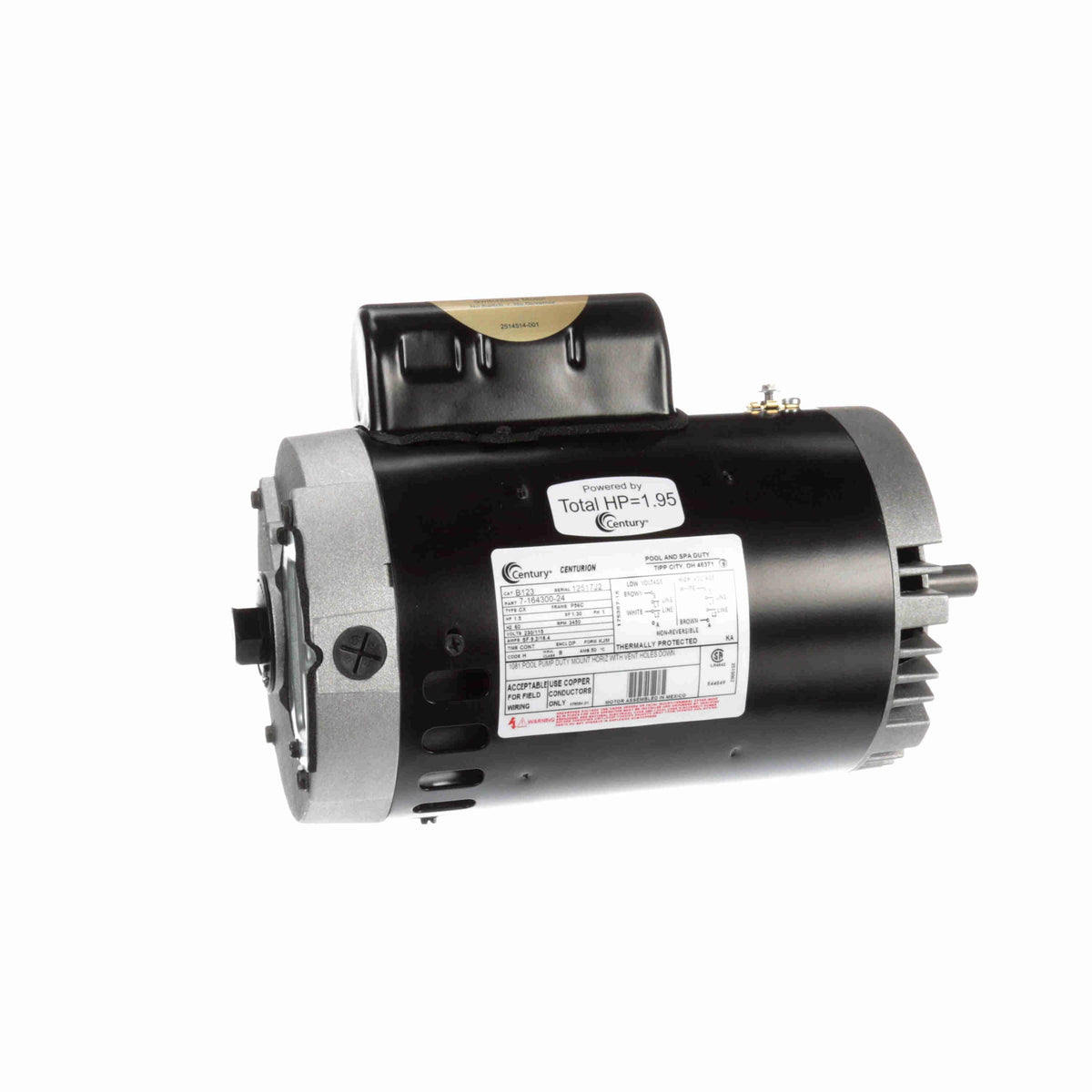

A.O. Smith B123 1.5HP 115/230V Single-Speed 56C Frame Motor

It is important to know that pool pump motors are not manufactured by the pump manufacturer, the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT. 1.5 HP 1.3 Service Factor 115 / 230 Volt 3450 RPM 56C NEMA Frame Keyed Shaft, C-Face Mounting Amps: 19.4/9.7 Cross Reference: 35-6403, 141930, 142459, 142775, 158127, 158961, 159985, 164124, 164128, 164300, 164430, 164440, 164444, 177471, 190000, B706, C1096, EB123, 1104375401, 13592, CK115, 7-164300-23, 8-164300-23, 7-164300-24, 5KCR49UN2087X, B795, SK1152, B796, 716430024, MGT605094 When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump. ?
