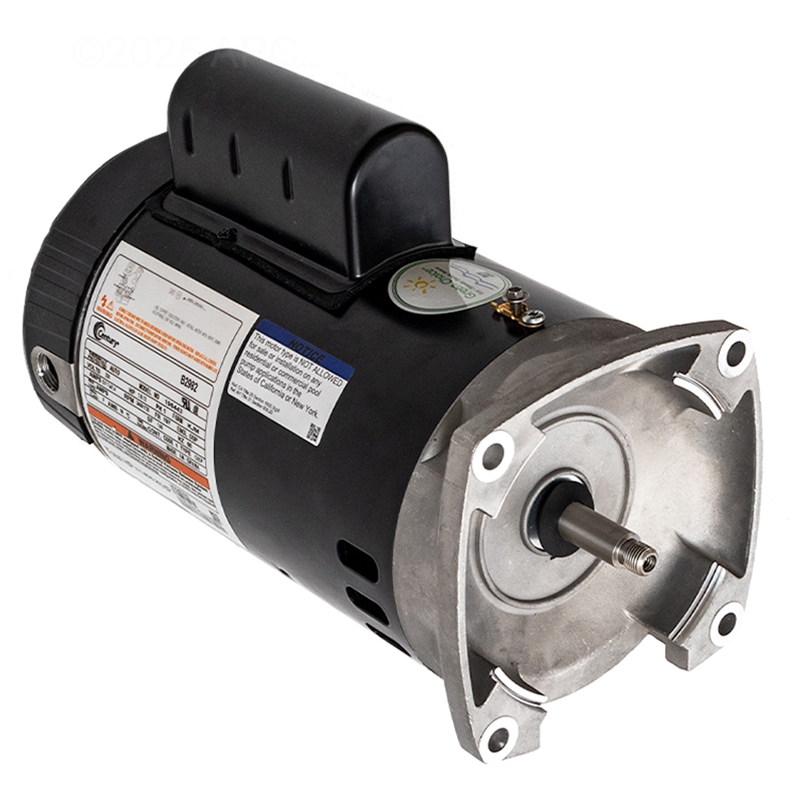

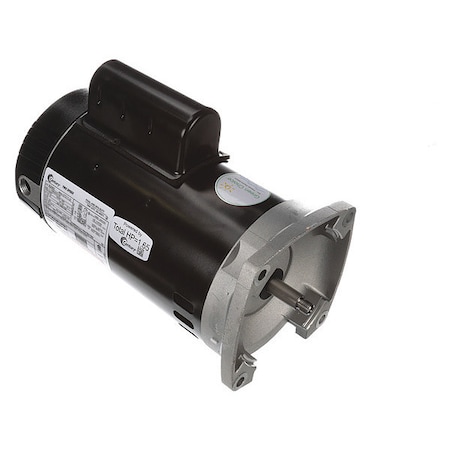

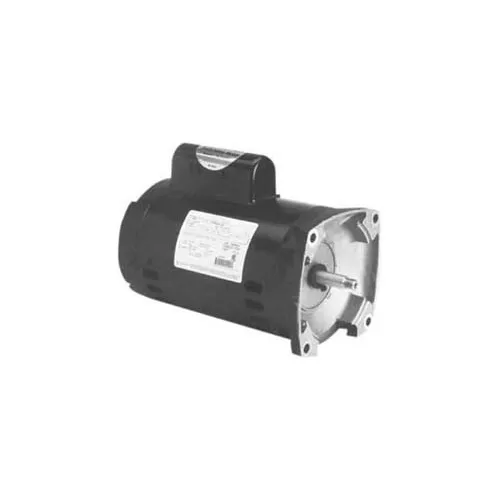

A.O. Smith . B2982

'Square Flange Pool Pump Motor, Capacitor-Start/Run Motor Design, Open Dripproof Motor Enclosure Design, 1, 1/10 HP, Nameplate RPM 3450/1725, 56Y Frame, Voltage 230, 60 Hz, 1 Phase, Full Load Amps 7.4/1.4, Face Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class F, Motor Service Factor 1.65, Ball Motor Bearings, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CCWSE, Shaft Threaded 1/2-20 UNF-2A RH, Shaft Material 303 Stainless Steel, Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.'

It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT. A.O. Smith part numbers: B2982, B982 Energy Efficient - Full Rated Motor High Speed 1 HP Low Speed .12 HP Service Factor: 1.65 7.4 / 1.4 amps 56Y Frame 230 Volt Square Flange (Face) Threaded Shaft Capacitor start All copper windings Automatic thermal protection Stainless steel threaded shaft Sealed ball bearings When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.?
