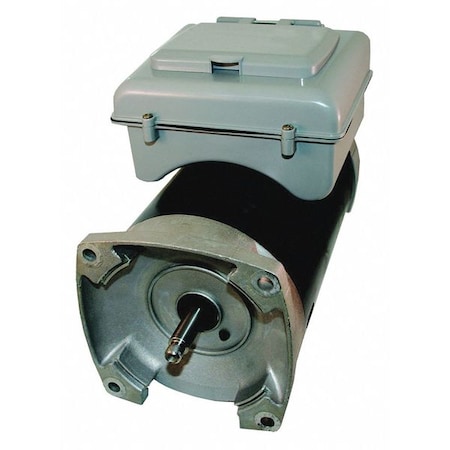

Square Flange Pool Pump Motor, Capacitor-Start, 2, 1/4 HP, 56Y Frame, 3450/1725 Nameplate RPM

Convert a single speed pump to a 2-speed pump just by replacing the motor! This 2-speed Centurion replacement is the most energy efficient 2-speed square flange motor available and it includes a timer for optimum operation and savings. Just install the motor, the timer is already wired and ready to go. This motor is the easiest 2-speed ever for installation and wiring. The 2GreenTM motor’s integrated electronics control the power supply to the motor. The interface controls the Start and Stop time of the two-speed single phase induction PSC motor. The motors are rated up to 230V AC at 3.45 HP or 115V AC at 1.26 HP. The 2Green offers the Timer mode and Manual mode. You can set either High Speed or Low Speed in both modes. You can set the timer to power ON and OFF at specific times. Only one mode can be activated at a time. It takes the timer only two seconds to turn the motor on in both modes for high speed and low speed. These motors can only be used on pumps that require a square flange! Features Include: Integrated Timer Interface and motor as a single unit Rain-proof Timer Enclosure Timer Mode Manual mode On-screen motor status updates Built-in battery backup protects programming for 7 years LCD backlight and adjustable contrast Step-by-step screen instructions Manual override High efficiency on high speed for reduced electrical usage Meets California Title 20 requirements Single phase only

Century's new 2Green two-speed premium efficiency replacement pump motor with integrated timer packs tremendous value into an easy-to-install package. Energy efficiency continues to drive the needs of the pool market from legislation to increased awareness of energy costs and environmental impact. And thanks to the 2Green energy efficient high and low speed windings paired with an onboard timer interface, energy consumption can be reduced by as much as 58% over single speed motors. The all-in-one integrated motor and timer means less work for an installer and maximum energy savings for pool and spa owners.Features:Integrated Timer InterfaceTimer ModeAdjustable ContrastManual ModeOver Current ProtectionBattery Backup - Program SaverLCD Display with BacklightBall BearingClass B Insulation50°C AmbientHigh Effeciency High and Low SpeedOpen DripproofRotation: CCW Pump EndSingle Phase303 Stainless Steel Shaft
