Pool Pump Motor, Permanent Split Capacitor, 3/4 HP, 56CZ Frame, 3,450 Nameplate RPM

Pool Pump Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 13.0/6.5, 56CZ Frame, Usable @ 208V No, Usable @ 200V No, Max. SF Amps 13.0, 60 Hz, Motor Service Factor 1.5, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face, Motor Mounting Position Horizontal **PLEASE NOTE: This item cannot be shipped to the state of California**

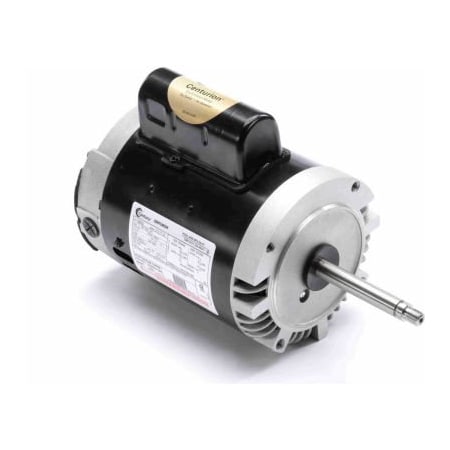

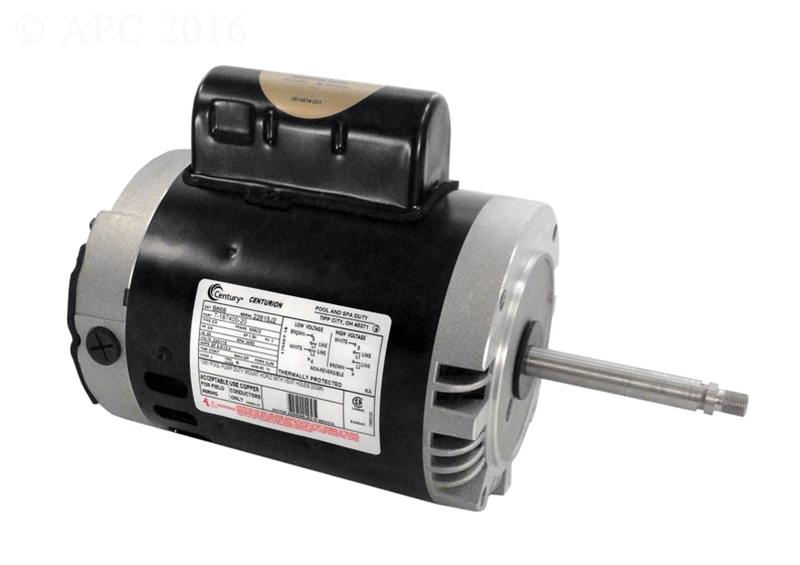

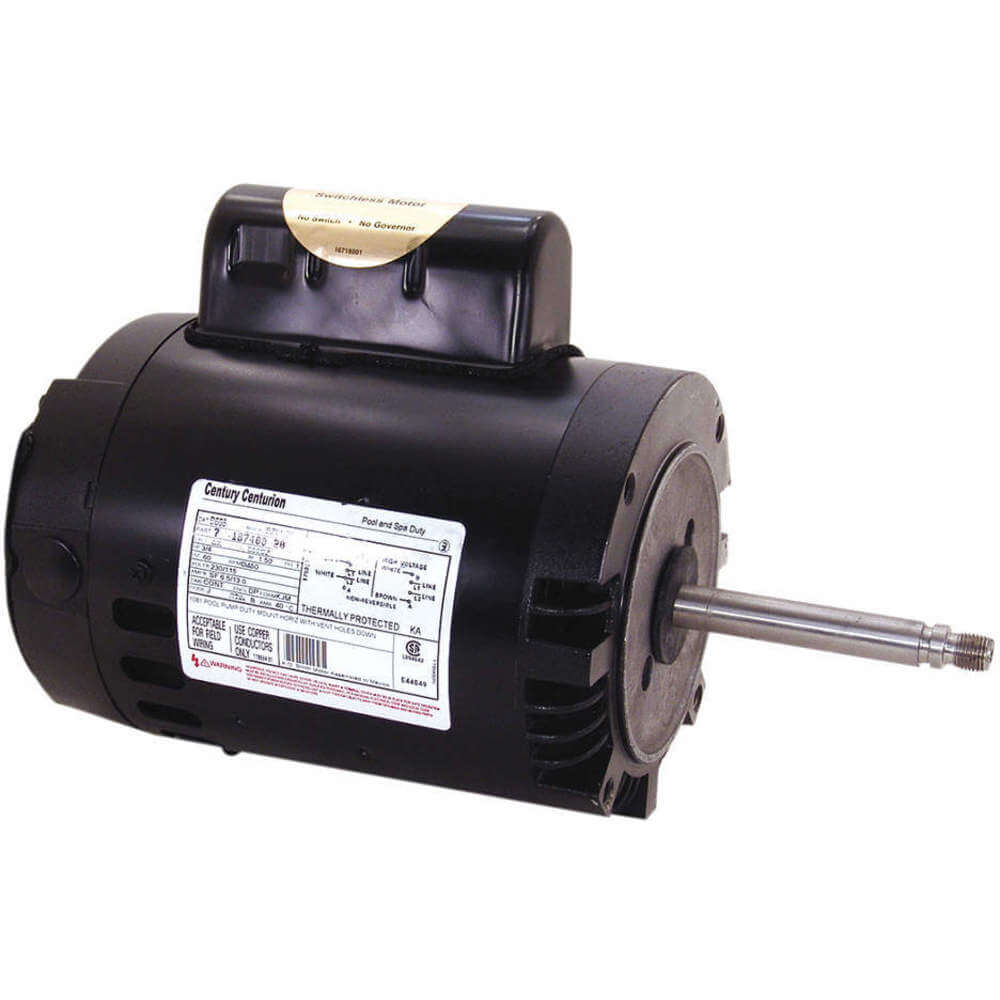

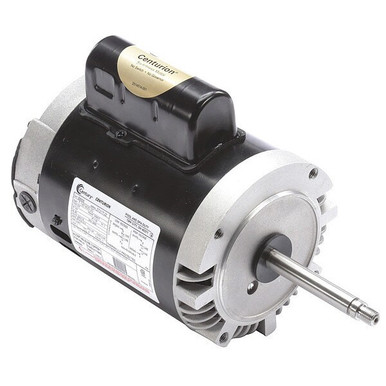

The Regal Beloit B668 3/4 Century Pool Cleaner Replacement Pump Motor is part of the Century Pool Cleaner Replacement Pump Motors series. These motors are replacement motors for Arneson ?Pool Sweep,'' Polaris ?Vac-Sweep'' and Letro ?Jet Vac'' brand pool cleaners. This model is a single-phase pool cleaner replacement pump motor that features a permanent split capacitor and a switchless design with a drip-proof enclosure with no base and a rigid base. It also has Sealed Ball Bearings with a 40-degree Celsius ambient temperature and 303 stainless steel threaded shafts. With a UL 1081 Design and an Aluminum Adapter Bracket, it also has a class B insulation and a CW Non-Reversible feature. This motor has an output of 0.75 HP, 3,450 RPM speed, 230/115 Voltage, 6.5/13.0 Amperes, and an S56CZ frame. With ball drive end bearing and a rolled steel frame material, its dimensions include an overall length of 13.87 inches, frame length of 6.38 inches, shaft extension of 4.43 inches, and a shaft diameter of 0.625 inches.
