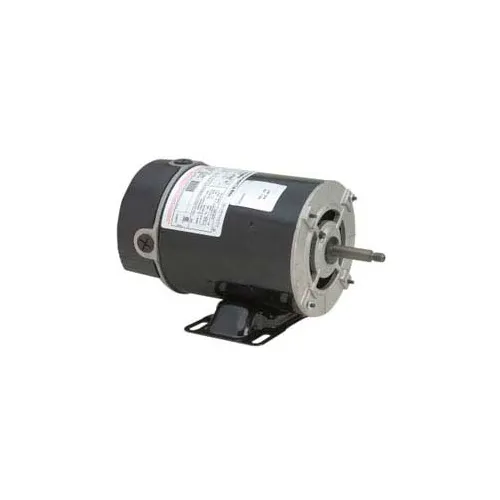

Pool Pump Motor, Capacitor-Start, 1 1/2, 3/16 HP, 48Y Frame, 3,450/1,725 Nameplate RPM

Century Two Speed Above Ground Pool & Spa Motor 1 1/2 -1/6 HP 230 Volt Cap Run / Start 8.0 / 2.6 Amps Two Speed 3450 / 1750 RPM Ball Bearing w/ Base

'Pool and Spa Pump Motor, Capacitor-Start, Open Dripproof, 1-1/2, 3/16 HP, 3450/1725 Nameplate RPM, 48Y Frame, CCWSE Motor Shaft Rotation, Voltage 230, 6.5/2.5 Full Load Amps, 1 Phase, 60 Hz, Rigid Base Motor Mounting Type, Ball Motor Bearings, Black, Shaft Threaded 3/8-16 UNC-2A RH, Shaft Material Steel, Motor Thermal Protection Auto, 1.00 Motor Service Factor, Shaft Dia. 1/2 In., Shaft Length 1-13/16 In., Ins. Class B, Standards UL, CSA Pending'

Above ground swimming pool and spa motors. These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 48Y frame motors thru bolt dimension is 5 1/8" on center measured across the shaft. Shaft is 1/2" diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps.Specifications:Type: C/FFR: 48YHP: 1.5/.188SF: 1.0PH: 1HZ: 60RPM: 3450/1725ROT: CCWPEVolts: 230Amps: 6.5/2.5

<p>AO SMITH , BN34, BN34V1, CENTURY, SPA MOTOR PUMP, </p><ul ><li >Horsepower :1-1/2</li><li >Voltage :230</li><li >Amps :8.0/2.6</li><li >RPM :3450/1725</li><li >Frequency :60 Hz</li><li >"C" Dim. :12.83"</li><li >Enclosure :Open Drip-Proof</li><li >Type :Capacitor Start</li><li >Speeds :2</li><li >Diameter :5-5/8"</li><li >Frame :48Y</li><li >Bearings :Ball</li><li >Rotation :CCWPE</li><li >Protector :Automatic</li><li >Service Factor :1.00</li><li >Phase :1</li><li >Ambient Temp. :40°C</li><li >Capacitor Rating :25MFD-370V</li><li >Feature(s) :Class 'B' Insulation, Rigid Base, 12 &amp; 3 O'Clock Entries, Through Bolt Mount, 4 Thru-Bolts on a 5.146 Bolt Circle, 48/56 Base Mounting</li><li >Weight (lbs.) :27</li></ul>

Motor, Century, 1.5 Horsepower, 230v, 2 Speed, 48 Frame

It is important to know that pool pump motors are not manufactured by the pump manufacturer, the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT. 2 Speed High Speed: 1.5 Horsepower Low Speed: 1/6 Horsepower 230 Volts 8.0 / 2.6 amps Frame: 48Y Mounting: Thru-Bolt Rigid Base Mount Welded to Motor Case Automatic overload protection Non-Reversible CCW facing the shaft Cross Reference: SP1515Z2EBK3, C48B59A01, S48A40A79, S48B59A01, S48M2A10A1, S48M2A10A7, S48M2A7, TBS2152H, 165180, 176379, 177235, 177783, 177865, 181328, 181495, 182715, 182859, 184168, 186267, 7-165180-04, 7-177783-02, 8-177783-40, B034, BN034, C1280, C1326, 17523, 41001, 8-177783-01, 10-184168-02, 7-177783-62, 7-177865-02, 7-165180-02, 8-177865-48, 9-176379-02, 7-177783-01, 7-184168-01, 9-177783-02, 5KCR39UN2903X, BN34V1, 1777830J, MGT605150, 3051280, 717778302, 3420620, agh15fl2cs When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump. ?
