A.O. Smith . BN40SS

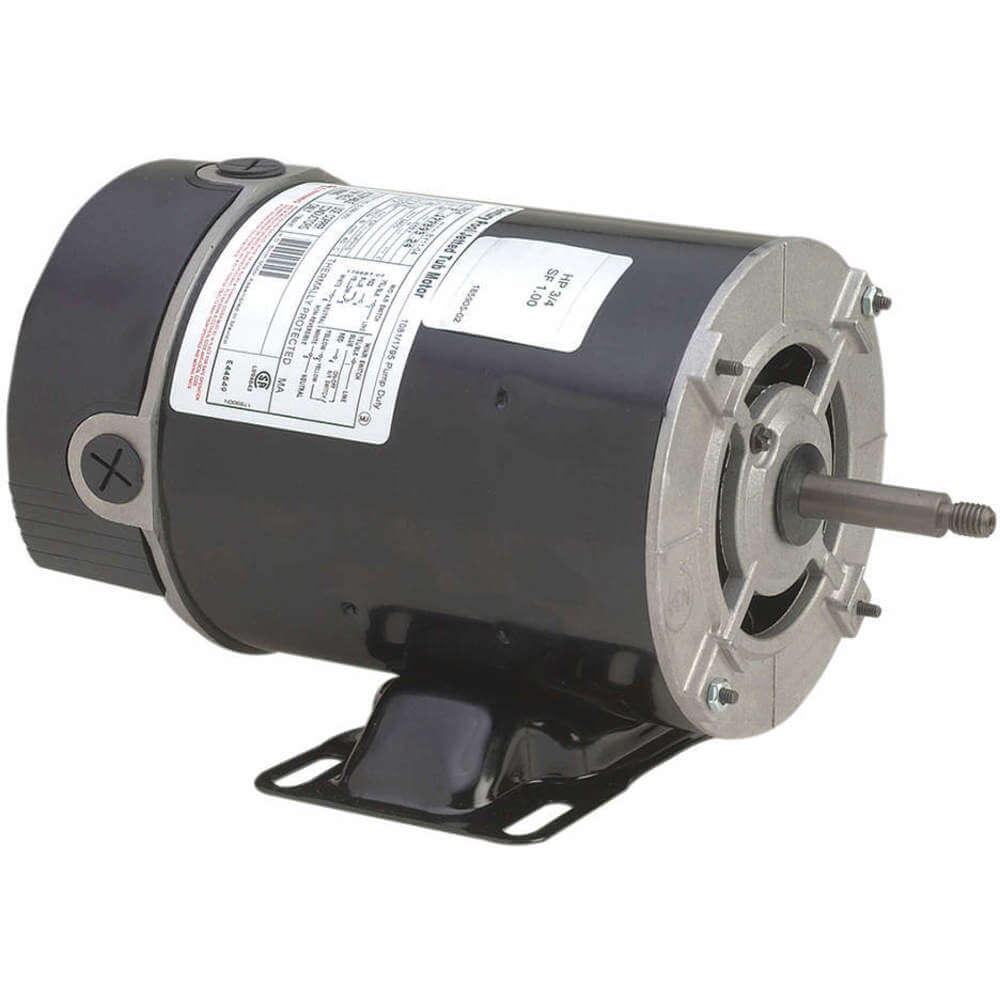

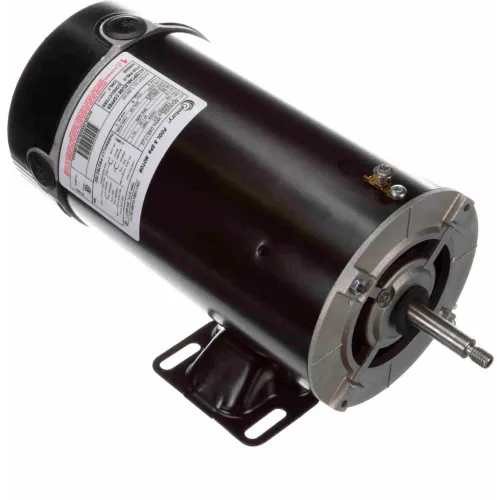

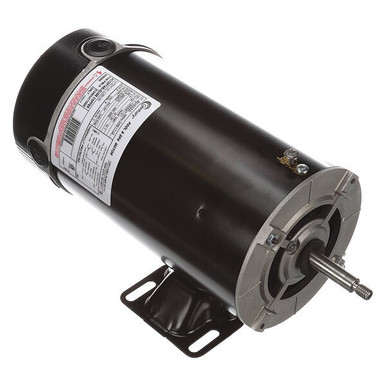

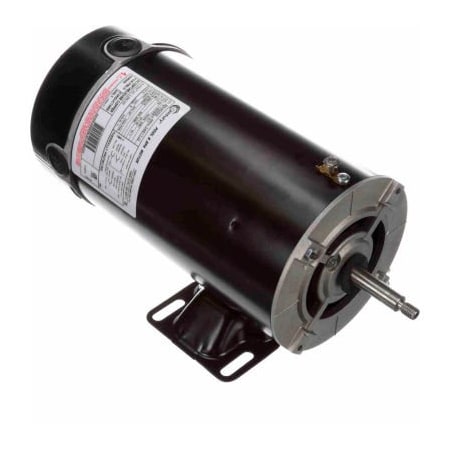

A.O. Smith BN40SS 2HP 115/230V 48Y Frame Single Speed Pool and Spa Pump Motor

' Pool and Spa Pump Motor, Capacitor-Start, Open Dripproof, 2 HP, 3450 Nameplate RPM, 48Y Frame, CCWSE Motor Shaft Rotation, Voltage 115/230, 20.0/10.0 Full Load Amps, 1 Phase, 60 Hz, Rigid Base Motor Mounting Type, Ball Motor Bearings, Black, Shaft Threaded 3/8-16 UNC-2A RH, Shaft Material Stainless Steel, Motor Thermal Protection Auto, 1.00 Motor Service Factor, Shaft Dia. 1/2 In., Shaft Length 2-5/16 In., Ins. Class B '

It is important to know that pool pump motors are not manufactured by the pump manufacturer, the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT. Model: BN40SS 2 Horsepower - Up Rated Service Factor: 1.0 Single Speed 115 / 230 Volts 20.0 / 10.0 amps Mounting: Thru-Bolt Frame: 48Y Rigid Base Mount Welded to Motor Case Automatic overload protection Rotation: CWLE Cross Reference: 17527, 177778, 181069, 181484, 181579, 182276, 182688, 182798, 182924, 184518, 186062, 186095, 186097, 186887, 193864, 193865, 5KCR39UN2898X, 5U164, 7-182688-02, 7-184518-02, 7-186095-02, 7-186097-02, 7-186097-40, 8-186062-01, BN40, C1456, SPH20FL1, SPH20FLC When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump. ?
