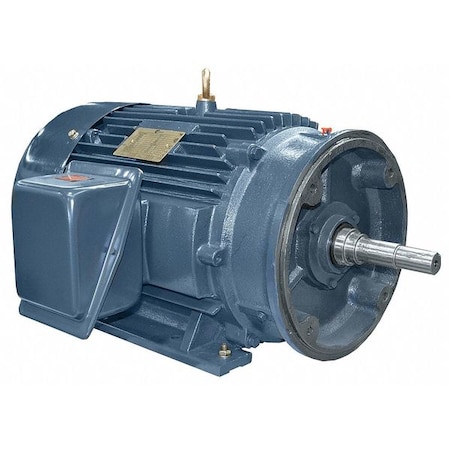

CC Pump Motor, 3-Ph, TEFC, 25HP, 284JM

Century . CPE52

Gallery

Attributes

Brand name, Manufacturer nameCentury
ManufacturerCentury A.O. Smith
Attribute00Close-Coupled Pump Motor
Attribute013-Phase
Attribute0225
Attribute033001-3600
Attribute043550
Attribute05, Voltage208-230/460
Attribute06284JM
Attribute07Rigid Base
Attribute081.15
Attribute09, Attribute18Cast Iron
Attribute10External Slinger
Attribute11UL Recognized (E49747), CSA Certified (LR2025)
Attribute1225-11/16"
Attribute13Energy Efficient
Attribute14Ball
Attribute1560
Attribute1640 Degrees C
Attribute17Totally Enclosed Fan-Cooled
Attribute19F
Attribute20Close-Coupled Pump
Attribute213
Attribute22CC003A
Attribute23CW/CCW
Attribute2491.7%
Attribute25Yes
Attribute265-1/4"
Attribute27208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460
Attribute28Continuous
Attribute2965.0-58.0/29.0
Attribute30JM Threaded
Attribute31None
Attribute322-3/16" Stepped Down to 1-3/4"
Attribute33Pump
Attribute3431"
Attribute35, countryOfOriginChina
AttributeKey00Item
AttributeKey01Motor Design
AttributeKey02HP
AttributeKey03RPM Range
AttributeKey04Nameplate RPM
AttributeKey05Voltage
AttributeKey06Frame
AttributeKey07Motor Mounting Type
AttributeKey08Motor Service Factor
AttributeKey09Frame Material
AttributeKey10Includes
AttributeKey11Standards
AttributeKey12Length Less Shaft
AttributeKey13Motor Efficiency Group
AttributeKey14Motor Bearings
AttributeKey15Hz
AttributeKey16Max. Ambient Temp.
AttributeKey17Motor Enclosure Design
AttributeKey18Motor Frame Material
AttributeKey19Ins. Class
AttributeKey20Motor Sub Application
AttributeKey21Phase
AttributeKey22CC Number
AttributeKey23Motor Shaft Rotation
AttributeKey24Nominal Efficiency
AttributeKey25Inverter Rated
AttributeKey26Shaft Length
AttributeKey27Voltage Compatibility
AttributeKey28Duty
AttributeKey29Full Load Amps
AttributeKey30Motor Shaft Design
AttributeKey31Motor Thermal Protection
AttributeKey32, height_Attrib, width_AttribShaft Dia.
AttributeKey33Motor Application
AttributeKey34, length_AttribOverall Length
AttributeKey35Country of Origin (subject to change)
DimensionUnitinch
GraingerSku29NZ29
Extra Product NameCC Pump Motor, 3-Ph, TEFC, 25HP, 284JM
WeightUnitlbs
diameter, height, width2.1875
extendedLead26
extendedQty-2
length31.0
moq, multiple, tierMinQty1, Case, NumberOfItems, PackageQuantity1
MPN, Part Number, PartNumberCPE52
qtyInStock0
SKUG9906951
tierPrice11864.02
urlhttps://www.zoro.com/century-cc-pump-motor-3-ph-tefc-25hp-284jm-cpe52/i/G9906951/
Product Group, ProductGroupBISS
AsinB01LXK2Y55
BrandA. O. Smith
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 306506011 306528011
FeatureTechnical Specification Item Close-Coupled Pump Motor Motor Application Pump Motor Sub
Label, Man, Publisher, StudioA.O. Smith
ProductTypeNameMECHANICAL_COMPONENTS
TitleA.O. Smith - CPE52 - 25 HP Close-Coupled Pump Motor, 3-Phase, 3550 Nameplate RPM, 208-230/460 Voltage, 284JM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9906951111 @ $1864.02
Grainger29NZ2911
Square OneCPE5211
MRO Supply591832611
Dealers ElectricCPE521Backordered11 @ $2971.41
patrickssupply.comCPE52111 @ $2095.00
