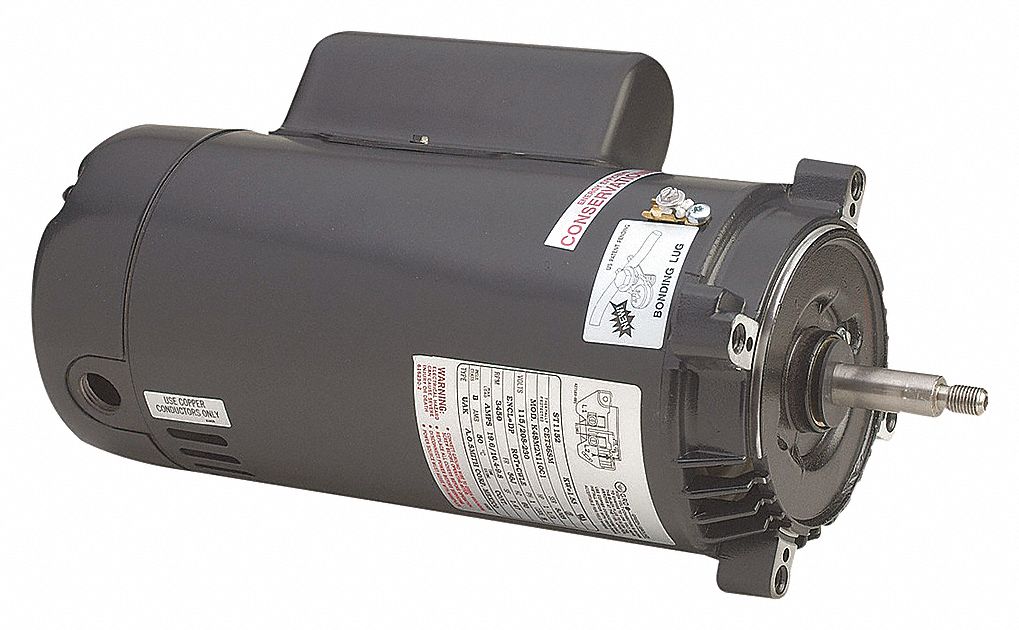

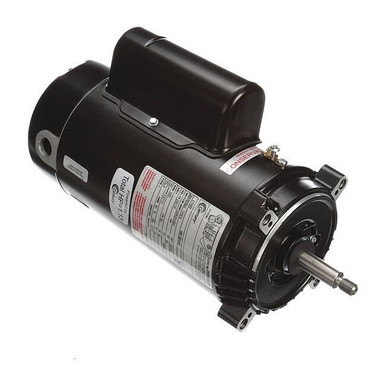

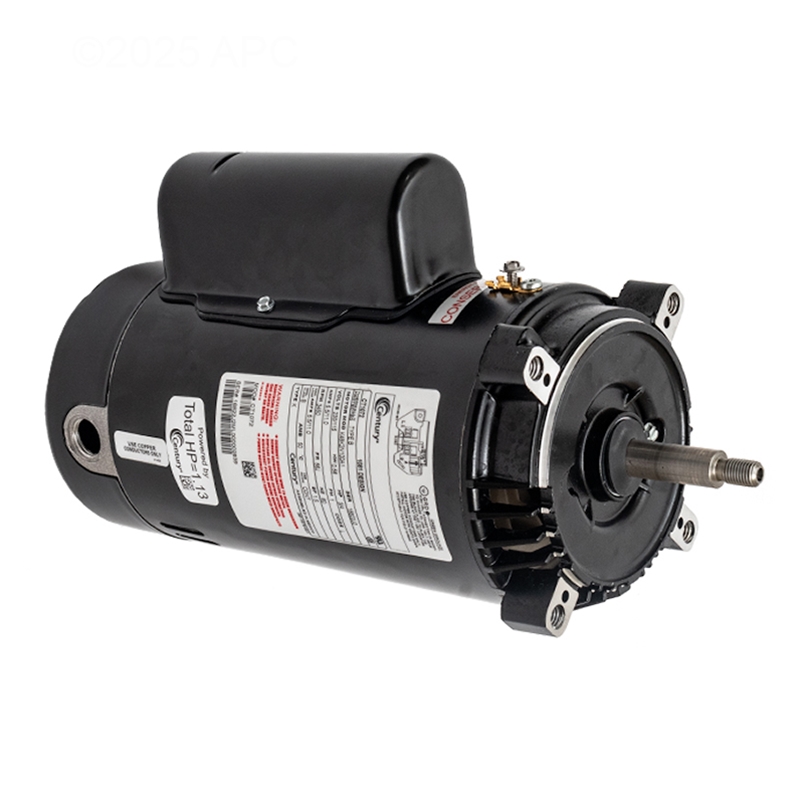

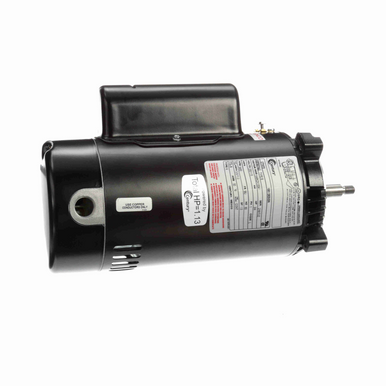

Pool Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Finish Black, Frame 56J, Hz 60, Full Load Amps 5.5/11.0, HP 3/4, Ins. Class B, Length Less Shaft 12 1/8 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

CT1072 Nema-C Flange 3/4 h.p. Pool filter motor, Energy Efficient, Nema-C Flange Pool filter Motor, all copper windings, Auto protector, Capacitor start, NEMA 56C Face mount, Not reversible, Open drip proof, CCWPE rotation, Sealed ball bearings, Sealed switch, ?" design, 50 degrees C ambeint, 60 HZ, 303 stainless shaft, High service factor 3/4 hp 3450RPM, 56J frame, threaded shaft, 115-230 Volts 60hz. 11. / 5.5 amps Service Factor 1.50 Energy Efficient Motor Cross Reference: K48J2N103 K48K2N100A1 K48K2N104 B632 B638 EB638 JD75FL1E 19935 52009 89935 SP1605Z1BE MFK-19935 91711.

It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT. 3/4 HP - Full Rated Energy Efficient Service Factor: 1.50 56J Frame 56C Face Mount Threaded Shaft 115/230 Volt 11.0/5.5 amps Capacitor Start Automatic Overload Protection Non-Reversible CCW Stainless Steel Shaft Replaces Hayward Motor SPX1607Z1B Replaces Jacuzzi Motor 9081-0615-R Cross Reference: SPX1607Z1B, SP1605Z1BE, K48J2N103, K48K2N100A1, K48K2N104, B632, B634, B638, EB638, 19935, 52009, CT207CE, ECT1072, 9081-0615-R When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.?

The A.O. Smith NEMA C-Face Pool Filter Motor works efficiently with its single speed design. With horsepower ratings from 1/2"P to 3HP, the NEMA C-Face Pool Filter Motor is Full-Rated and provides long lasting and trustworthy performance. Its Energy Efficient capacitor start is run using a ?Conservationist? motor for enhanced performance. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with an open drip proof enclosure, the NEMA C-Face Pool Filter Motor is sure to last.

3/4 Hp Motor 56J C-Face Conservationist Features - Auto Protector - NEMA 56C Face Mount - Open Drip proof - Rotation - CCW Pump End - Sealed Ball Bearings - Sealed Switch Design - 1081 Design - 50?C Ambient - 304 Bearing Shaft End - 60 Hz - Capacitor Start - Capacitor Run - 303 Stainless Shaft 56J & 56C 3/4 Hp Motor 56J C-Face Conservationist Neda-C Flange 0.75 hp. Pool filter motor, Energy Efficient, Neda-C Flange Pool filter Motor, all copper windings, Auto protector, Capacitor start, NEMA 56C Face mount, Not reversible, Open drip proof, CCWPE rotation, Sealed ball bearings, Sealed switch, design, 50 degrees C ambient, 60 HZ, 303 stainless shaft, High service factor 0.75 hp 3450RPM, 56J frame, threaded shaft, 115-230 Volts 60hz. 11. / 5.5 amps Service Factor 1.50 Energy Efficient Motor
