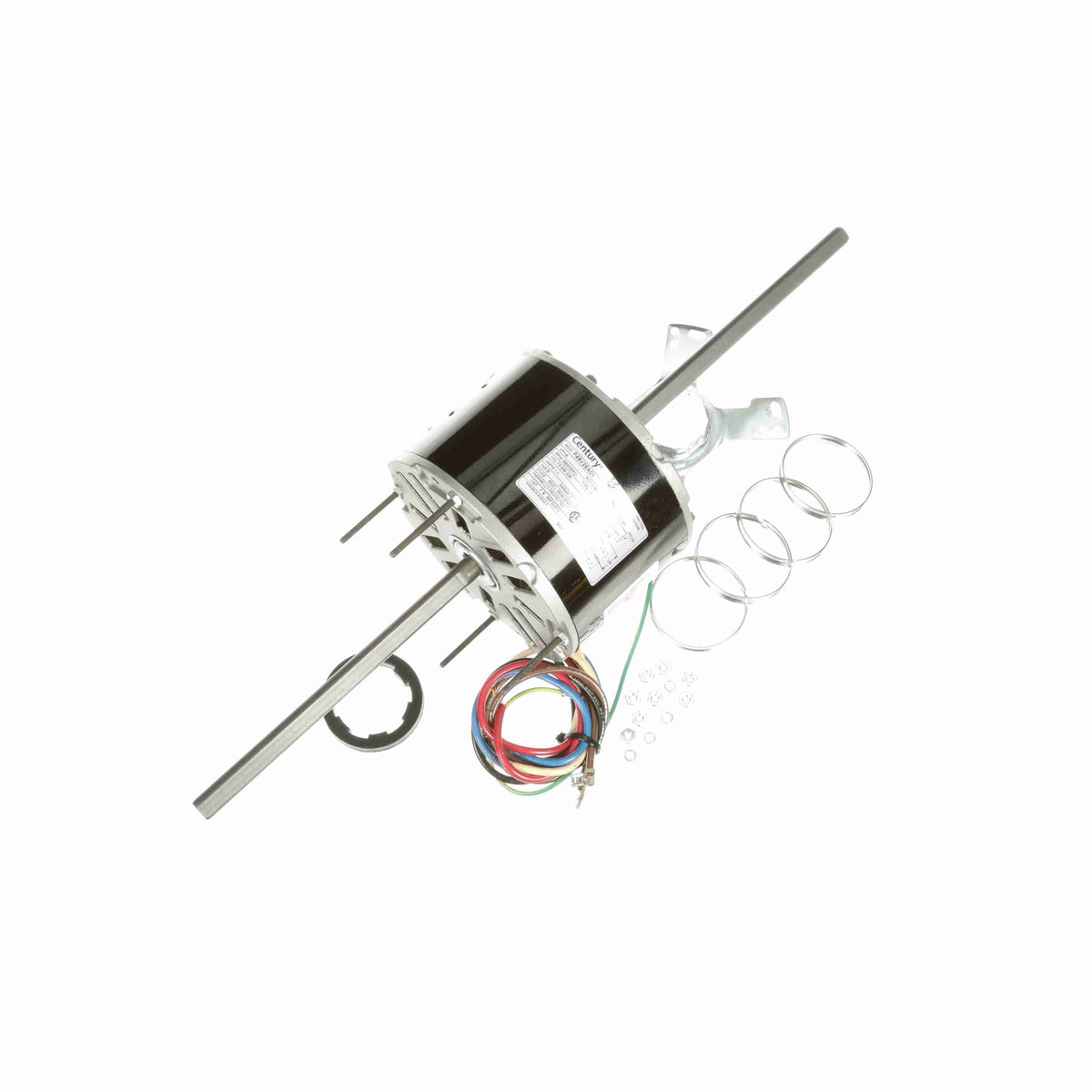

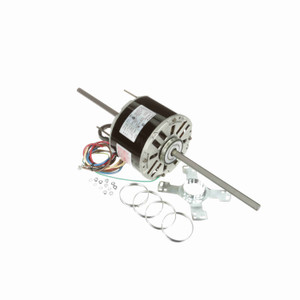

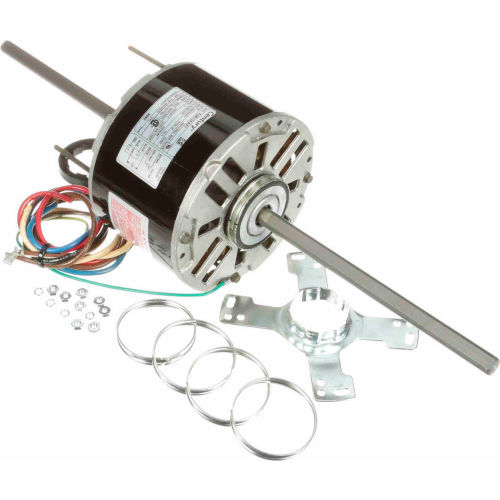

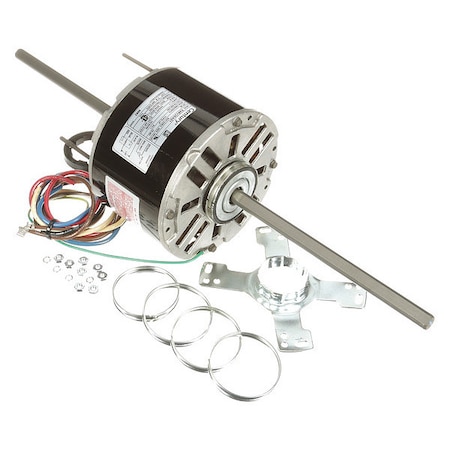

Room Air Cond Mtr, PSC, OAO, 1550 RPM

Century . 9682

Gallery

Attributes

Brand name, Manufacturer name, BrandCentury
ManufacturerCentury CENTURY
Attribute00Permanent Split Capacitor
Attribute011/8
Attribute021501-1600
Attribute033
Attribute04, Voltage208-230
Attribute05CCWLE
Attribute0648Y
Attribute07Open Air-Over
Attribute08Stud
Attribute091/2"
Attribute101.1
Attribute115-3/16"
Attribute1240 Degrees C
Attribute13Sleeve
Attribute14Room Air Conditioner Motor
Attribute15Flat
Attribute16HVAC/R
Attribute175-5/8"
Attribute18UL, CSA
Attribute193-5/8" x 3-5/8"
Attribute201.00
Attribute21Continuous
Attribute22Auto
Attribute23B
Attribute2460/50
Attribute251550
Attribute26, moq, multiple, tierMinQty1, Item_package_quantity, PackageQuantity1
Attribute272MDV6
Attribute284-3/8"
Attribute297-1/2"
Attribute302-1/4"
Attribute3136"
Attribute32Room Air Conditioner
Attribute33115/208-230, 208-230, 208-240
Attribute34#8-32 x 1-5/8"
Attribute35, countryOfOriginMexico
AttributeKey00Motor Design
AttributeKey01HP
AttributeKey02RPM Range
AttributeKey03No. of Speeds
AttributeKey04Voltage
AttributeKey05Motor Shaft Rotation
AttributeKey06Frame
AttributeKey07Motor Enclosure Design
AttributeKey08Motor Mounting Type
AttributeKey09Shaft Dia.
AttributeKey10Full Load Amps
AttributeKey11Bolt Circle Dia.
AttributeKey12Max. Ambient Temp.
AttributeKey13Motor Bearings
AttributeKey14Item
AttributeKey15Motor Shaft Design
AttributeKey16Motor Application
AttributeKey17, height_Attrib, width_AttribBody Dia.
AttributeKey18Standards
AttributeKey19Mounting Stud Pattern
AttributeKey20Motor Service Factor
AttributeKey21Duty
AttributeKey22Motor Thermal Protection
AttributeKey23Ins. Class
AttributeKey24Hz
AttributeKey25Nameplate RPM
AttributeKey26Phase
AttributeKey27Capacitor Required
AttributeKey28Length Less Shaft
AttributeKey29Shaft Length
AttributeKey30Resilient Ring Dia.
AttributeKey31, length_AttribLead Length
AttributeKey32Motor Sub Application
AttributeKey33Voltage Compatibility
AttributeKey34Stud Size
AttributeKey35Country of Origin (subject to change)
DimensionUnitinch
GraingerSku4UU57
Extra Product Name, ItemName, Item_nameRoom Air Cond Mtr, PSC, OAO, 1550 RPM
WeightUnitlbs
diameter, height, width5.625
extendedLead10
extendedQty-2
length36.0
MPN, PartNumber, Part_number9682
qtyInStock0
SKUG0382681
tierPrice1201.47
url//www.zoro.com/static/assets/bundle/css/sitemapSubpage.0f3b1cb8.css
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
AsinB00BXKP3IU
Bullet_pointDuty: Continuous No. of Speeds: 3 Shaft Length: 7-1/2" Resilient Ring Dia.: 2-1/4" Hz: 60/50 Lead Length: 36" Nameplate RPM: 1550 Length Less Shaft: 4-3/8" HP: 1/8 Stud Size: #8-32 x 1-5/8" Full Load Amps: 1.1 Motor Shaft Design: Flat Body Dia.: 5-5/8" Voltage Compatibility: 115/208-230, 208-230, 208-240 Bolt Circle Dia.: 5-3/16" Mounting Stud Pattern: 3-5/8" x 3-5/8" Frame: 48Y Ins. Class: B Standards: UL, CSA Motor Mounting Type: Stud Voltage: 208-230 Country of Origin (subject to change): Mexico Price For: Each Motor Service Factor: 1.00 Motor Shaft Rotation: CCWLE Motor Bearings: Sleeve Phase: 1 Max. Ambient Temp.: 40 Degrees C Motor Sub Application: Room Air Conditioner Motor Application: HVAC/R Motor Enclosure Design: Open Air-Over Item: Room Air Conditioner Motor Motor Thermal Protection: Auto Motor Design: Permanent Split Capacitor Shaft Dia.: 1/2"
ClassificationId13400031
DisplayNameHVAC Controls
Height426 64 958
Horsepower0.125
ItemClassificationBASE_PRODUCT
Item_type_keywordhvac-controls
Linkhttps://m.media-amazon.com/images/I/41ybSjIKYoL._SL75_.jpg https://m.media-amazon.com/images/I/41ybSjIKYoL.jpg https://m.media-amazon.com/images/I/61jLGyGl2WL.jpg
MaterialOao
ProductTypeELECTRIC_MOTOR
Product_description' Room Air Conditioner Motor, Permanent Split Capacitor, Open Air-Over, Continuous, 1/8 HP, 1550 Nameplate RPM, Voltage 208-230, 48Y Frame, Service Factor 1.0, 60/50 Hz, Full Load Amps 1.1, Thermal Protection Auto, Insulation Class B, Max. Ambient Temp. 40 Degrees C, Number of Speeds 3, CCWLE Rotation, 1 Phase, Stud Mounting, Sleeve Bearings, Body Dia. 5-5/8 In., Length Less Shaft 4-3/8 In., Shaft Type Flat, Shaft Dia. 1/2 In., Shaft Length 7-1/2 In., Stud Pattern 3-5/8 x 3-5/8 In. '
Product_site_launch_date2014-11-01T12:00:00.000-08:00
Speed1550.0
Unithorsepower rpm
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width1125 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG0382681111 @ $201.47
Grainger4UU5711
Raptor SuppliesAD9TWV11
sustainablesupply.comC2090756111 @ $227.39
DreisilkerCE-RBC-96821-211 @ $291.87
emotorpro.com96821-211 @ $275.96
midwestapplianceparts.com9682-AO-P111 @ $274.31
Global IndustrialWBB27766791-211 @ $295.95
National Supply NetworkB27766791-211 @ $277.43
Square One968211
hvacdiscountstore.comCEN--9682111 @ $219.31
Voomi Supply9682111 @ $295.59
patrickssupply.com9682111 @ $254.35
ptacsolutions.com9682111 @ $263.95

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Room Air Cond Mtr, PSC, OAO, 1550 RPM
Brand: Century
' Room Air Conditioner Motor, Permanent Split Capacitor, Open Air-Over, Continuous, 1/8 HP, 1550 Nameplate RPM, Voltage 208-230, 48Y Frame, Service Factor 1.0, 60/50 Hz, Full Load Amps 1.1, Thermal Protection Auto, Insulation Class B, Max. Ambient Temp. 40 Degrees C, Number of Speeds 3, CCWLE Rotation, 1 Phase, Stud Mounting, Sleeve Bearings, Body Dia. 5-5/8 In., Length Less Shaft 4-3/8 In., Shaft Type Flat, Shaft Dia. 1/2 In., Shaft Length 7-1/2 In., Stud Pattern 3-5/8 x 3-5/8 In. '
Details
  • Price For: Each Motor Service Factor: 1.00 Motor Shaft Rotation: CCWLE Motor Bearings: Sleeve Phase: 1 Max. Ambient Temp.: 40 Degrees C Motor Sub Application: Room Air Conditioner Motor Application: HVAC/R Motor Enclosure Design: Open Air-Over Item: Room Air Conditioner Motor Motor Thermal Protection: Auto Motor Design: Permanent Split Capacitor Shaft Dia.: 1/2"
  • Duty: Continuous No. of Speeds: 3 Shaft Length: 7-1/2" Resilient Ring Dia.: 2-1/4" Hz: 60/50 Lead Length: 36" Nameplate RPM: 1550 Length Less Shaft: 4-3/8" HP: 1/8 Stud Size: #8-32 x 1-5/8" Full Load Amps: 1.1 Motor Shaft Design: Flat Body Dia.: 5-5/8" Voltage Compatibility: 115/208-230, 208-230, 208-240 Bolt Circle Dia.: 5-3/16" Mounting Stud Pattern: 3-5/8" x 3-5/8"
  • Frame: 48Y Ins. Class: B Standards: UL, CSA Motor Mounting Type: Stud Voltage: 208-230 Country of Origin (subject to change): Mexico
