Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 460V AC, 1.50 Full Load Amps, 48 Frame, Output Watts 370 W, 60 Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 80 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel, Motor Mounting Position All Angle
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G8795507 | 1 | 33 | 1 | 1 @ $300.99 |
| Grainger | 32NA71 | 1 | 1 | ||
| SupplyHouse | FEH1056SU | 1 | 1 | ||
 AmazonTP | B01D9WH0IA | 1 | 1 | 1 @ $201.79 | |
| AG2XMM | 1 | 1 | 1 @ $497.22 | ||
| sustainablesupply.com | C1527428 | 1 | 1 | 1 @ $323.14 | |
 simsupply.com | CU-33324E413731 | 1 | 12 | 1 | 1 @ $295.81 |
 Global Industrial | WBB2776314 | 1 | -2 | 1 | 1 @ $349.95 |
 National Supply Network | B2776314 | 1 | -2 | 1 | 1 @ $317.39 |
| FEH1056SU | 1 | -2 | 1 | 1 @ $315.71 | |
 ktool.net | FEH1056SU | 1 | -2 | 1 | 1 @ $255.80 |
 simsupply.com | ZO-G8795507 | 1 | 9 | 1 | 1 @ $363.39 |
 Voomi Supply | FEH1056SU | 1 | 1 | 1 @ $310.16 | |
 Zoro | G804936908 | 1 | -2 | 1 | 1 @ $611.17 |
 midwestapplianceparts.com | FEH1056SU-AO-P | 1 | Current Unavailable - No ETA Available | 1 | 1 @ $317.52 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

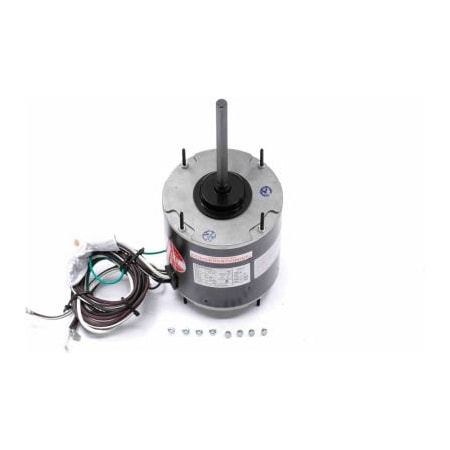

Condenser Fan Motor, 1/2 HP, 1075 rpm, 1-Ph
Brand: Century
'Condenser Fan Motor,Motor Design Permanent Split Capacitor,Motor Enclosure Design Totally Enclosed Air-Over,1/2 HP,RPM Range 1001-1100,Nameplate RPM 1075,Voltage 460,48 Frame,Number of Speeds 1,Overall Length 12-1/8 In.,Shaft Length 6-1/2 In.,Shaft Orientation All Angle,Features Extended Thru-Bolts,Motor Shaft Rotation CW/CCW,Full Load Amps 1.5,Stud Motor Mounting Type,Thermal Protection Auto,Insulation Class F,Service Factor 1.0,Bearings Ball,Max. Ambient Temp. 80 Degrees C'
Details
- <b>Price For:</b> Each <b>Motor Design</b>: Permanent Split Capacitor <b>Item</b>: Condenser Fan Motor <b>Motor Service Factor</b>: 1.00 <b>No. of Speeds</b>: 1 <b>Motor Application</b>: HVAC/R <b>Motor Thermal Protection</b>: Auto <b>Motor Enclosure Design</b>: Totally Enclosed Air-Over <b>Motor Sub Application</b>: Condenser Fan <b>Motor Shaft Rotation</b>: CW/CCW <b>Phase</b>: 1 <b>Hz</b>: 60 <b>Features</b>: Extended Thru-Bolts
- <b>Standards</b>: UL Recognized (E46412), CSA Certified (LR43341) <b>Voltage Compatibility</b>: 460, 208-230/460 <b>Frame</b>: 48 <b>Motor Mounting Position</b>: All Angle <b>Motor Mounting Type</b>: Stud <b>Voltage</b>: 460 <b>Application</b>: Condenser Fan <b>Shaft Length</b>: 6-1/2" <b>Bolt Circle Dia.</b>: 5-5/32" <b>Overall Length</b>: 12-1/8" <b>RPM Range</b>: 1001-1100 <b>Max. Ambient Temp.</b>: 80 Degrees C <b>Lead Length</b>: 48" <b>Length Less Shaft</b>: 5-5/8"
- <b>Duty</b>: Continuous <b>Shaft Dia.</b>: 1/2" <b>Capacitor Required</b>: 2MDV7 <b>Mounting Stud Pattern</b>: 3-5/8" x 3-5/8" <b>Stud Size</b>: 8-32 <b>Nameplate RPM</b>: 1075 <b>Ins. Class</b>: F <b>Stud Quantity</b>: 4 <b>HP</b>: 1/2 <b>Motor Bearings</b>: Ball <b>Body Dia.</b>: 5-11/16" <b>Full Load Amps</b>: 1.5 <b>Motor Shaft Design</b>: Double-Flat <b>Country of Origin (subject to change)</b>: China
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRIC_MOTOR |
| Part number | FEH1056SU |
| Items per pack | 1 |
| Label | CENTURY |
| Manufacturer | CENTURY |
Catalog
| Feature | <b>Price For:</b> Each <b>Motor Design</b>: Permanent Split Capacitor <b>Item</b>: Condenser Fan Motor <b>Motor Service Factor</b>: 1.00 <b>No. of Speeds</b>: 1 <b>Motor Application</b>: HVAC/R <b>Motor Thermal Protection</b>: Auto <b>Motor Enclosure Design</b>: Totally Enclosed Air-Over <b>Motor Sub Application</b>: Condenser Fan <b>Motor Shaft Rotation</b>: CW/CCW <b>Phase</b>: 1 <b>Hz</b>: 60 <b>Features</b>: Extended Thru-Bolts |
|---|---|
| Category | Industrial & Scientific |
| MPN | FEH1056SU |
| UPC | 663001338789 |
| EAN | 663001338789 |
| Product group | BISS |
| Product type | HARDWARE |
| Manufacturer | CENTURY |
Analytics
| Category | tools |
|---|---|
| Offers | 7 |
| Case Qty | 1 units |
| Atom Count | 1 |
| Last Price | $481.39 |

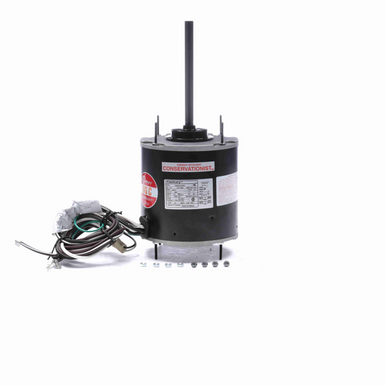

Packard FEH1056SU Century Heat Master Ultra Motor
Brand: Century Motors
Listing
| Product group | Home Improvement |
|---|---|
| Product type | HOME_LIGHTING_ACCESSORY |
| Part number | FEH1056SU |
| Label | Century Motors |
| Manufacturer | Century Motors |
Catalog
| Feature | Century Motors HeatMaster\xe2"\xa2 Ultra High Temperature Condenser Fan Motor 80\xc2\xb0C Ambient, Three-Year Warranty #FEH1056SU |
|---|---|
| Category | Tools & Home Improvement |
| MPN | FEH1056SU |
| UPC | 786674068798 |
| EAN | 786674068798 |
| Product group | Home Improvement |
| Product type | HOME_LIGHTING_ACCESSORY |
| Manufacturer | Century Motors |
Analytics
| Category | lighting |
|---|---|
| Offers | 6 |
| Case Qty | 1 units |
| Atom Count | 1 |
