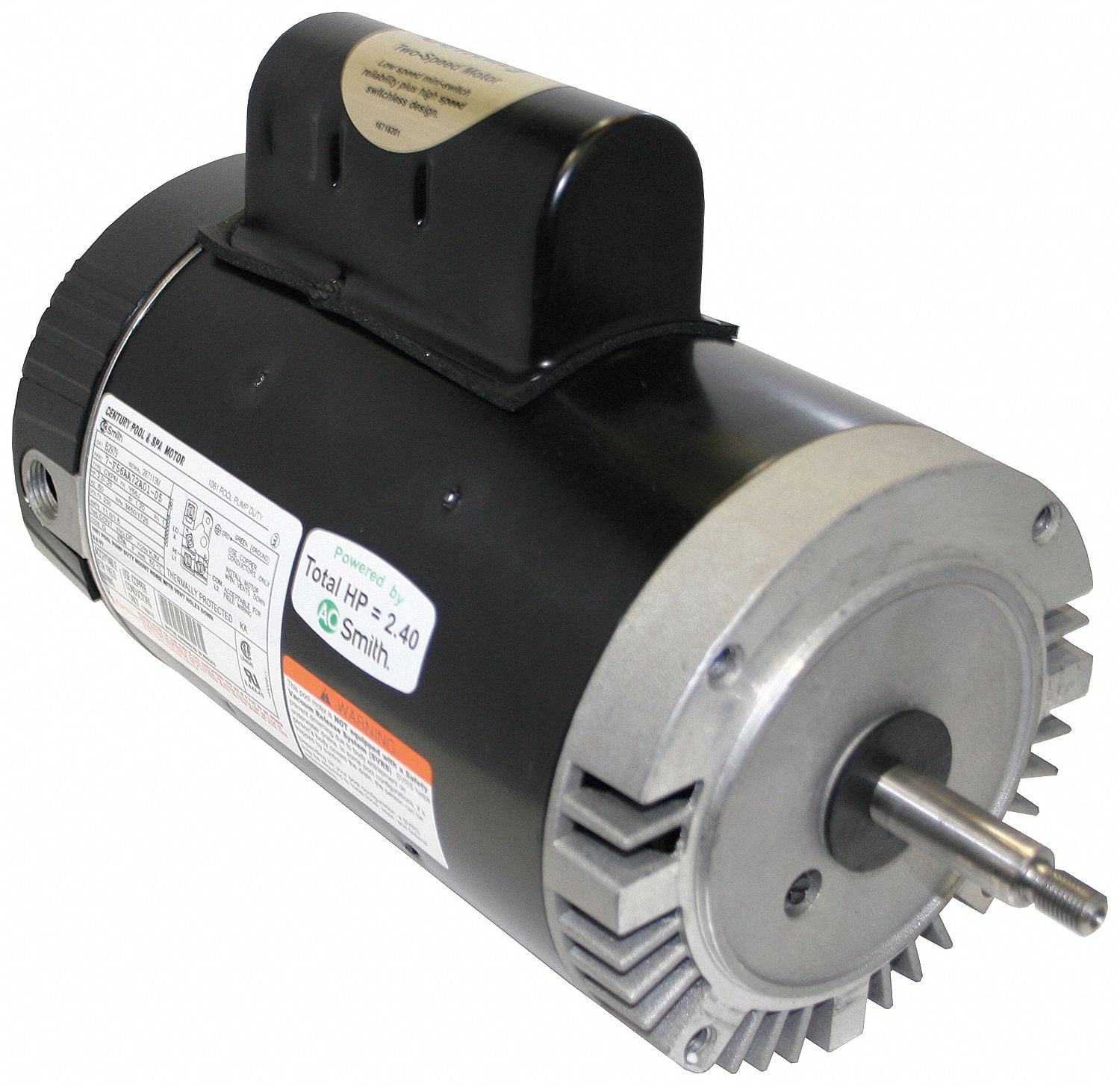

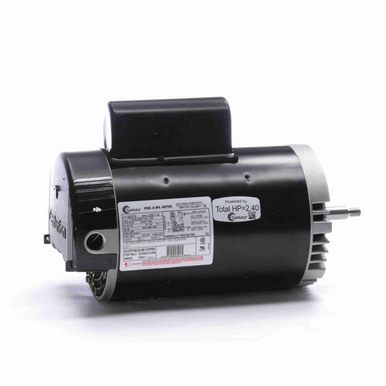

Pool Pump Motor, Permanent Split Capacitor, 2, 1/4 HP, 56J Frame, 3,450/1,725 Nameplate RPM

CAT: B2979 MODEL: TYPE: K FR: 56J HP: 2 SF: 1.2 PH: 1 HZ: 60 RPM: 3450/1725 ROT: CCWPE VOLTS: 230 AMPS: MAX AMPS: SF AMPS: 10.0/2.1 TIME: CONT ENCL: THERMALLY PROTECTED 2AM7ANL300 FORM: CODE: K INSUL CLASS: B AMB.: 40�C Ball Bearing 40�C Ambient Rotation: CCW Pump End Class B Insulation 304 Bearing Shaft End Energy Efficient

'Pool and Spa Pump Motor, Permanent Split Capacitor, Open Dripproof, 2, 1/4 HP, 3450/1725 Nameplate RPM, 56J Frame, CCWSE Motor Shaft Rotation, Voltage 230, 11.0/1.6 Full Load Amps, 1 Phase, 60 Hz, Face Motor Mounting Type, Ball Motor Bearings, Black, Motor Flange Material Aluminum, Shaft Threaded 7/16-20 UNF-2A RH, Shaft Material 303 Stainless Steel, Motor Thermal Protection Auto, 1.20 Motor Service Factor, Ambient Temperature 50 Degrees C, Shaft Dia. 5/8 In., Shaft Length 2-5/8 In.'

It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT. 2 Speed Motor High Speed: 2 HP Low Speed: 1/4 HP Full Rated Service Factor: 1.20 56J Frame 56C Face Mount Threaded Shaft 230 Volt 3.2 / 10.6 amps Capacitor Start Automatic Overload Protection Non-Reversible CCW Stainless Steel Shaft Cross Reference: 1620Z-2-MC, 1620Z-2-MSC, SP-1620-Z2-MC, SP-1620-Z2-MSC, A056480, STS1202R, 152687, 158227, 158568, 159819, 159820, 159945, 165980, 177064, 177107, 177111, 177112, 177153, 181094, 181389, 181390, 190041, 190066, 190116, 190126, 190128, 190178, 190191, 190217, 190218, 193637, B929, B940, B941, B959, C1443, B979, EB979, 1105170400, 19315, CT120T, 7-177064-05, 8-177107-04, 8-177064-05, 5KCR48UN3017X, STS1202, STS1202VRV1, 35B1200, 817706405, MGT605118 When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.?
