A.O. Smith . B2984

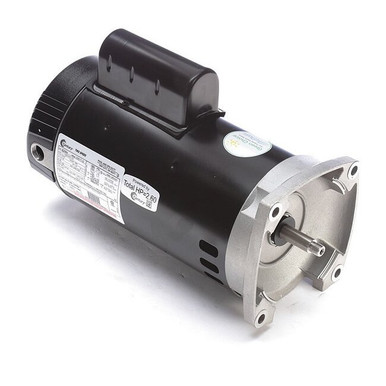

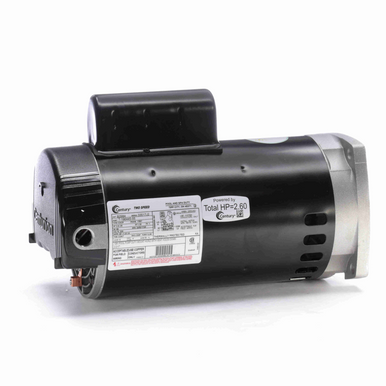

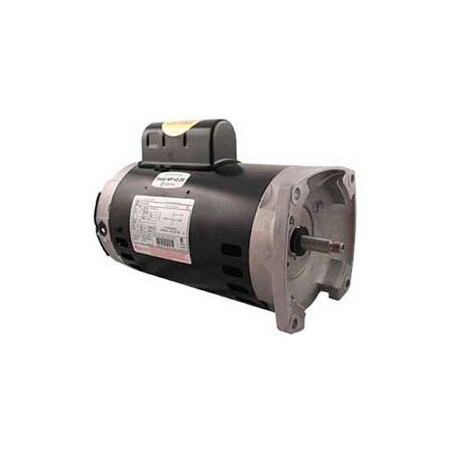

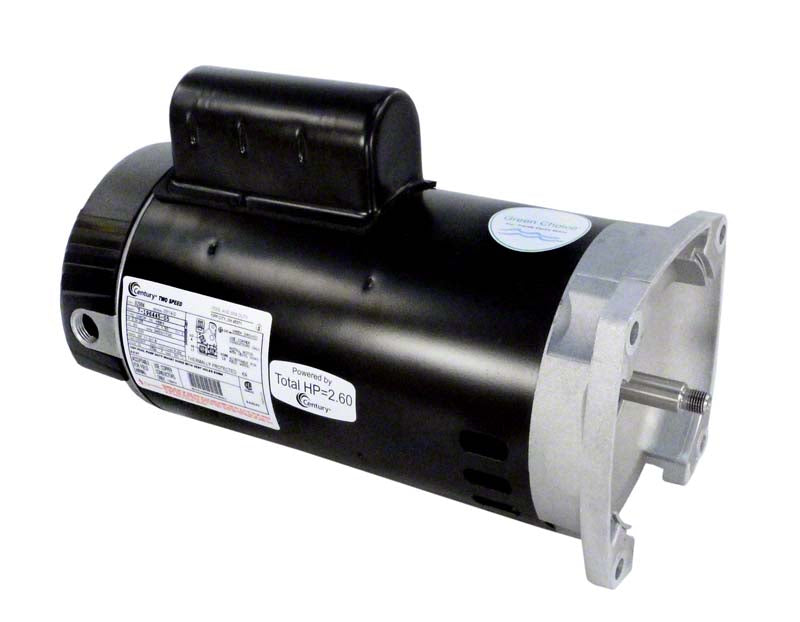

The Regal Beloit B2984 2.0/.25 New Centurion High-Efficiency Two-Speed is part of the New Centurion High-Efficiency two-speed motors that have PSC series. This model is part of the New Centurion Full Rate motors that have PSC (Permanent Split Capacitor) high speeds and capacitor start/capacitor run low speeds. This model particular model is a two-speed motor that has Sealed Ball Bearings with a 50-degree Celsius ambient temperature and 303 stainless steel threaded shafts. With a UL 1081 Design and an open drip proof enclosure, it also features a class B insulation and a Counterclockwise Pump End rotation and a High Efficient High and Low Speed and single phase feature. This motor has an output of 2.0/.25 HP, 3,450/1,725 RPM speed, 230 Voltage, 11.0/1.8 Amperes, and a Y56Y frame. With ball drive end bearing and a rolled steel frame material, its dimensions include an overall length of 14.40 inches, frame length of 10.00 inches, shaft extension of 0.91 inches, and a shaft diameter of 0.625 inches.

'Square Flange Pool Pump Motor, Capacitor-Start/Run Motor Design, Open Dripproof Motor Enclosure Design, 2, 1/4 HP, Nameplate RPM 3450/1725, 56Y Frame, Voltage 230, 60 Hz, 1 Phase, Full Load Amps 11.0/1.8, Face Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class F, Motor Service Factor 1.30, Ball Motor Bearings, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CCWSE, Shaft Threaded 1/2-20 UNF-2A RH, Shaft Material 303 Stainless Steel, Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.'
