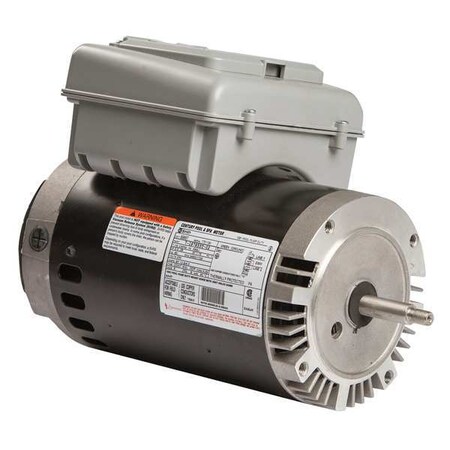

CENTURY . B966T

With integrated timer. Century's premium efficiency motor, the first motor with an integrated timer, addresses the challenge many pool owners have when selecting the right time to run their pump at the energy-saving low speed to save the most in energy cost. No need for an expensive remote timer. Simple to operate, push button with display. 2-Speed 56J frame pool pump motor. Can also be used on any pump requiring a 56J frame motor. This is a full rated motor with a High Service factor. Amps are stated based on the full service factor. Stainless steel shafts, sealed ball bearings, switchless. Motor does not come with 2 speed switch. Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. 1 Year Manufacture. Wiring Diagram: L2 = Line; L1 = Line; A = Not Used

A. O. Smith's new 2Green two-speed premium efficiency replacement pump motor with integrated timer packs tremendous value into an easy to install package. Energy efficiency continues to drive the needs of the pool market, from legislation to increased awareness of energy costs and environmental impact. And thanks to the 2Green's energy efficient high and low speed windings paired with an on-board timer interface, energy consumption can be reduced by as much as 58% over single speed motors. The all-in-one integrated motor and timer means less work for an installer and maximum energy savings for pool and spa owners.Features:All-in-one design with integrated motorand timer as one unitRain-proof timer enclosureOn-screen motor status updates2 Speed Specifications:Speed: 2 SpeedRPM: 3450/1750 RPMAmps: 13.8/4 ampService Factor: 1.15Total HP: 3.45 HPFrame: 56JShaft: ThreadedVolts: 230 VFlange: RoundTimer: DigitalHP: 3.0/.38 HP
