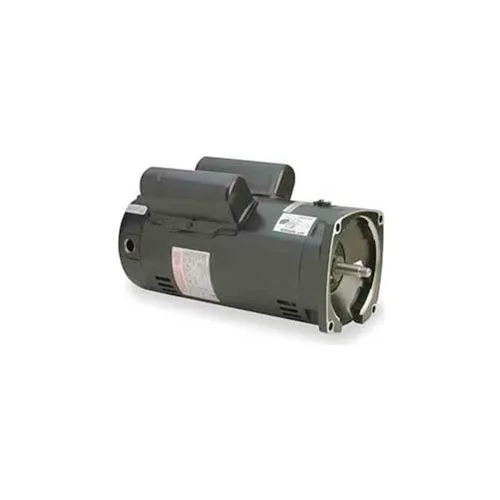

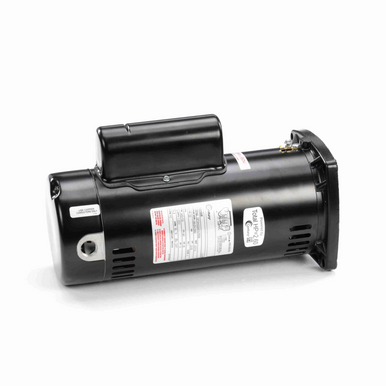

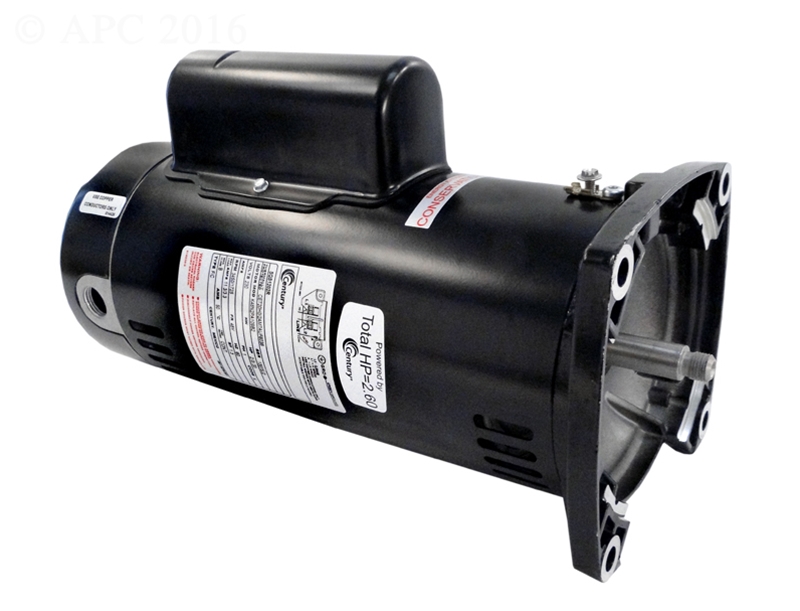

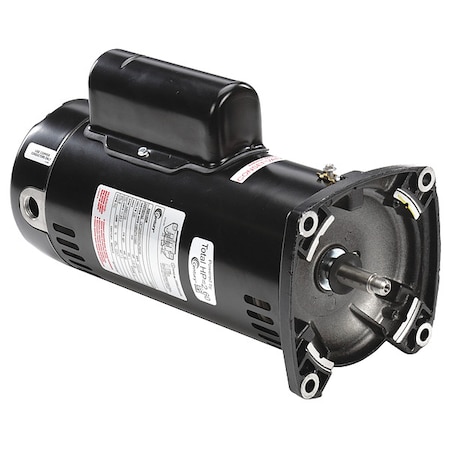

A.O. Smith . SQS1202R

AO Smith 2hp 230v 2-Speed 1.3SF 5.5in Barrel Diameter Square Flange Motor

The A.O. Smith Two-Compartment Square Flange Pool Motor works efficiently with its two-speed design. It boasts a CCW Rotation on the pump end for installation and is Energy Efficient capacitor start delivers enhanced performance. With horsepower ratings ranging from 3/4-1/8"P to 2-1/3HP, the Two-Compartment Square Flange Pool Motor comes in Full or Up-Rated models and provides long lasting and trustworthy performance. The Two-Compartment Square Flange Pool Motor is used on many Sta-Rite, Red Jacket, Sears Jet and Pool Pumps products. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with and open drip proof enclosure, the Two-Compartment Square Flange Pool Motor is sure to last. This motor does not include a hi/lo switch but the end cover and switch assembly may be purchased separately for remote operation. The Two-Compartment Square Flange Pool Motor also meets California Energy Commission Appliance Regulations 2008 for ultimate efficiency.

It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT. Energy Efficient Dual Speed Motor High Speed: 2 Horsepower Low Speed: 1/3 Horsepower High Speed Amps: 11.3 amps Low Speed Amps: 3.3 amps Service Factor: 1.30 230 Volt 48Y Frame 48Y motor body diameter is 1/2" smaller than 56Y Square Flange (Face) 5/8" Threaded Shaft All copper windings Automatic thermal protection Stainless steel threaded shaft Double sealed ball bearings Does not include toggle switch Replaces Sta-Rite numbers AE100GLL-Y(Pump Modesl: P4RA6YG-188L, P6RA6YG-207L, P2RA5YG-183L & P2RA6YG-183L, MPRA6YF-174L & MPEA6GF-175LS) Fits Pentair Pump Models: WFDS-8 & WFDS-30 Cross Reference: AE100GLL-Y, K56N2PM100, K56N2PM100A1, 176894, 177146, 177351, B984, C1313, EB984, 8-177146-05, 5KCR49UN2096X When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.
